W1: Tool offset
18.5 Tool radius compensation 2D (TRC)
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
1479
18.5.5 Deselecting the TRC (G40)
G40 instruction
TRC is deselected with the G40 instruction.
Special points to be noted
• TRC can only be deselected in a program block with G0 (rapid traverse) or G1 (linear interpolation).
•If D0 is programmed when tool radius compensation is active, compensation is not deselected and error
message 10750 is output.
• If a geometry axis is programmed in the block with the tool radius compensation deselection, then the
compensation is deselected even if it is not on the current plane.
18.5.6 Compensation at outside corners
G450/G451
The G functions G450/G451 can be used to control the response with discontinuous block transitions at outside
corners:

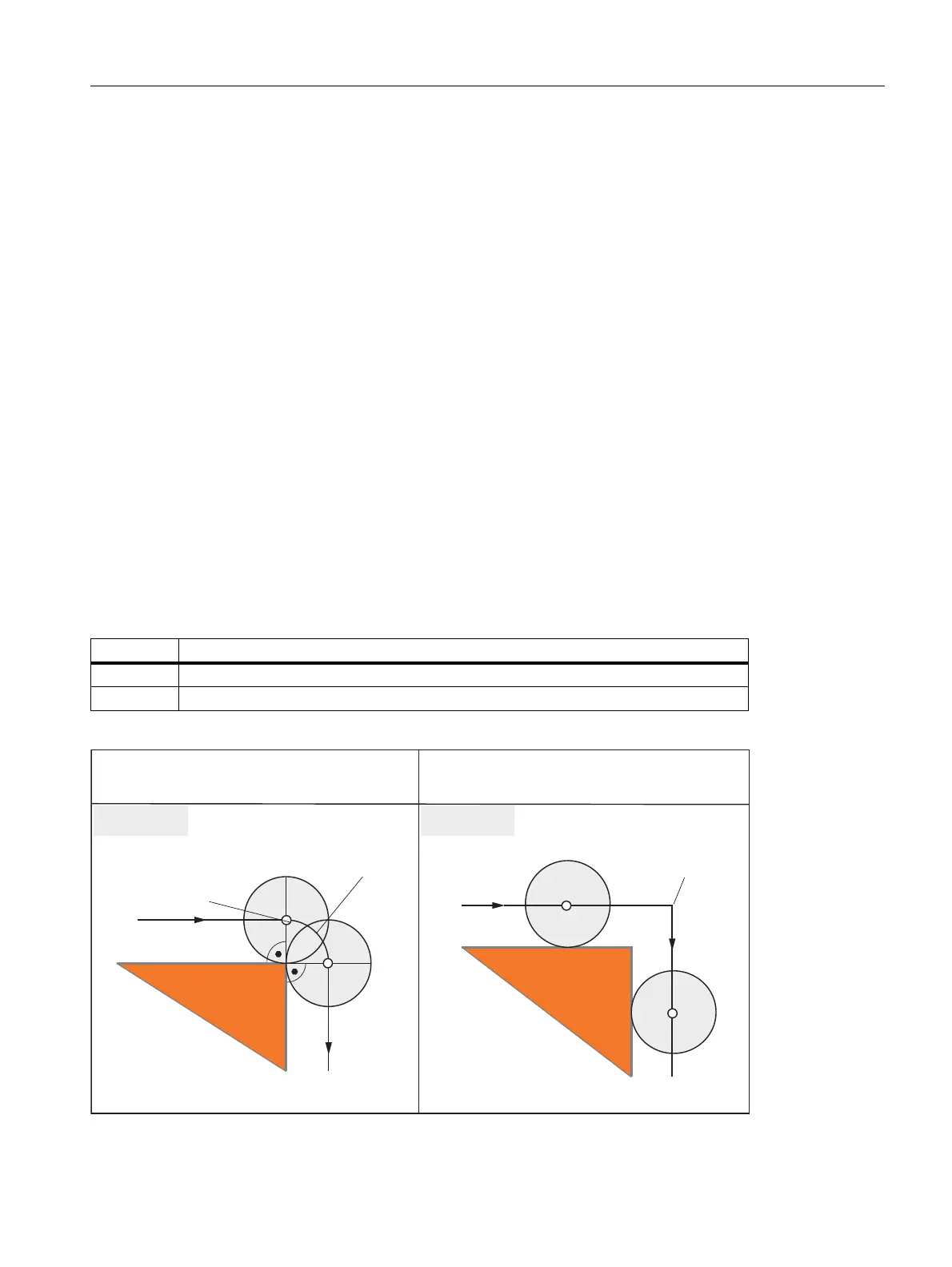

Figure 18-23 Example of a 90 degree outside corner with G450 and G451
Command Significance
G450
Discontinuous block transitions with transition circle
G451
Discontinuous block transitions with intersection of equidistant paths
7UDQVLWLRQFLUFOH
UDGLXV WRROUDGLXV
,QWHUVHFWLRQ
3
2XWVLGHFRUQHU 2XWVLGHFRUQHU
3URJUDPPLQJ*WUDQVLWLRQFLUFOH 3URJUDPPLQJ*LQWHUVHFWLRQ
