W1: Tool offset
18.5 Tool radius compensation 2D (TRC)
Basic Functions
1478 Function Manual, 09/2011, 6FC5397-0BP40-2BA0
• When DISR=5, the radius of SAR contour=20; that of the tool center point path=5
• After the circle block, the retraction movement leads from Z8 to Z20 and the movement is parallel to the XY
plane up to the end point at X70 Y0.

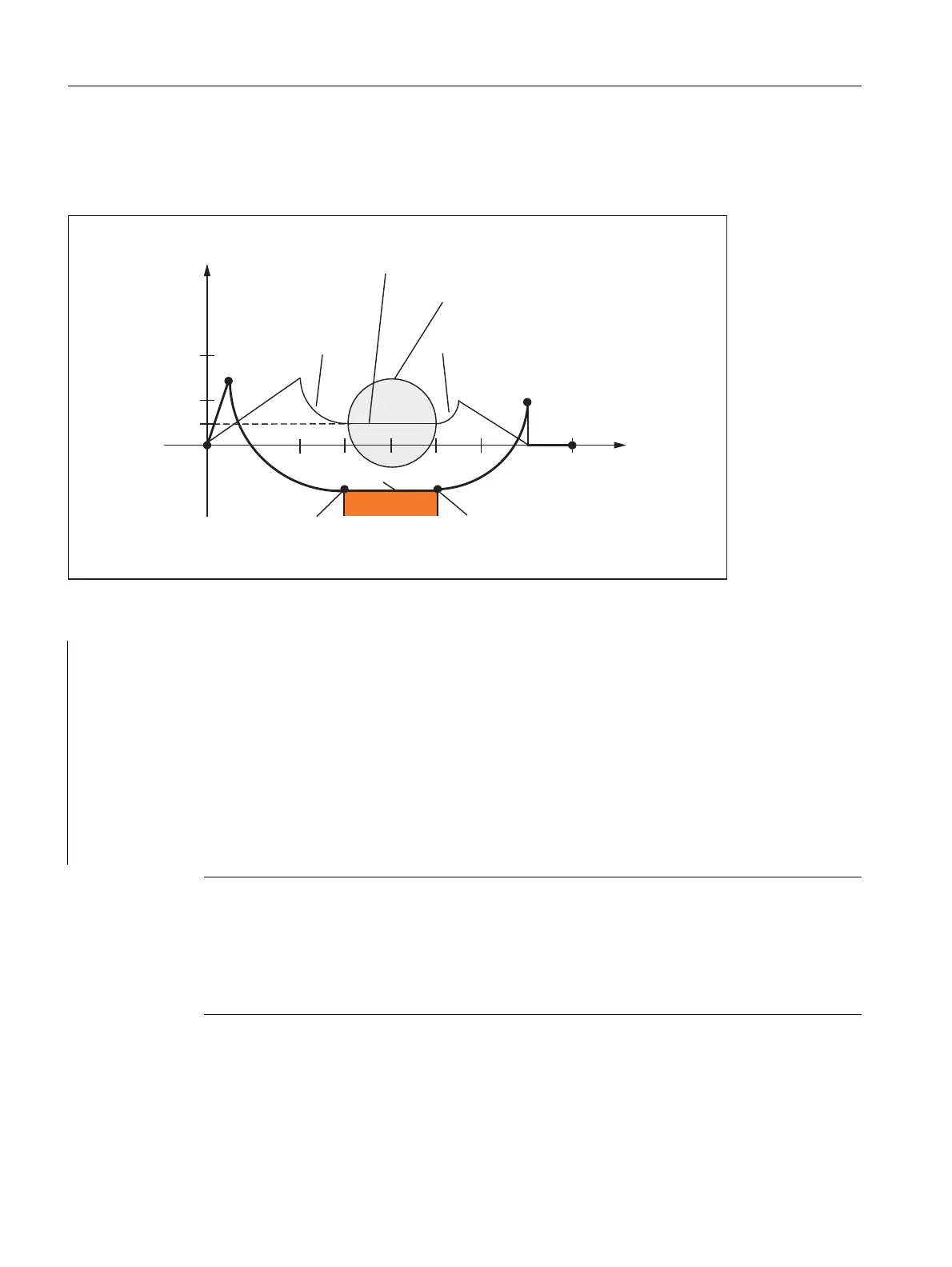

Figure 18-22 Contour example 2
Part program:
$TC_DP1[1,1]=120 ;Tool definition T1/D1
$TC_DP6[1,1]=10 ; Radius
N10 G0 X0 Y0 Z20 G64 D1 T1 OFFN = 5 (P0app)
N20 G41 G247 G341 Z0 DISCL = AC(7) DISR = 10 F1500 FAD=200 (P3app)
N30 G1 X30 Y-10 (P4app)
N40 X40 Z2
N50 X50 (P4ret)
N60 G248 G340 X70 Y0 Z20 DISCL = 6 DISR = 5 G40 F10000 (P3ret)
N70 X80 Y0 (P0ret)
N80 M 30
Note
The contour generated in this way is modified by tool radius compensation, which is
activated in the SAR approach block and deactivated in the SAR retraction block.
The tool radius compensation allows for an effective radius of 15, which is the sum of the tool
radius (10) and the contour offset (5). The resulting radius of the tool center path in the
approach block is therefore 10, and 5 in the retraction block.
7RRO
7RROFHQWHUSDWK
&RQWRXU
6HPLFLUFOH
+HOL[
3UHW
3DSS
3UHW
3DSS
3UHW
3DSS
;
<
