Siemens SINUMERIK 828D Function Manual

P4: PLC for SINUMERIK 828D
14.3 Programming
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
1123
See also
Defining data classes Defining data classes [Page 1119]
14.3.4.3 Load data class(es) into the CPU
Procedure

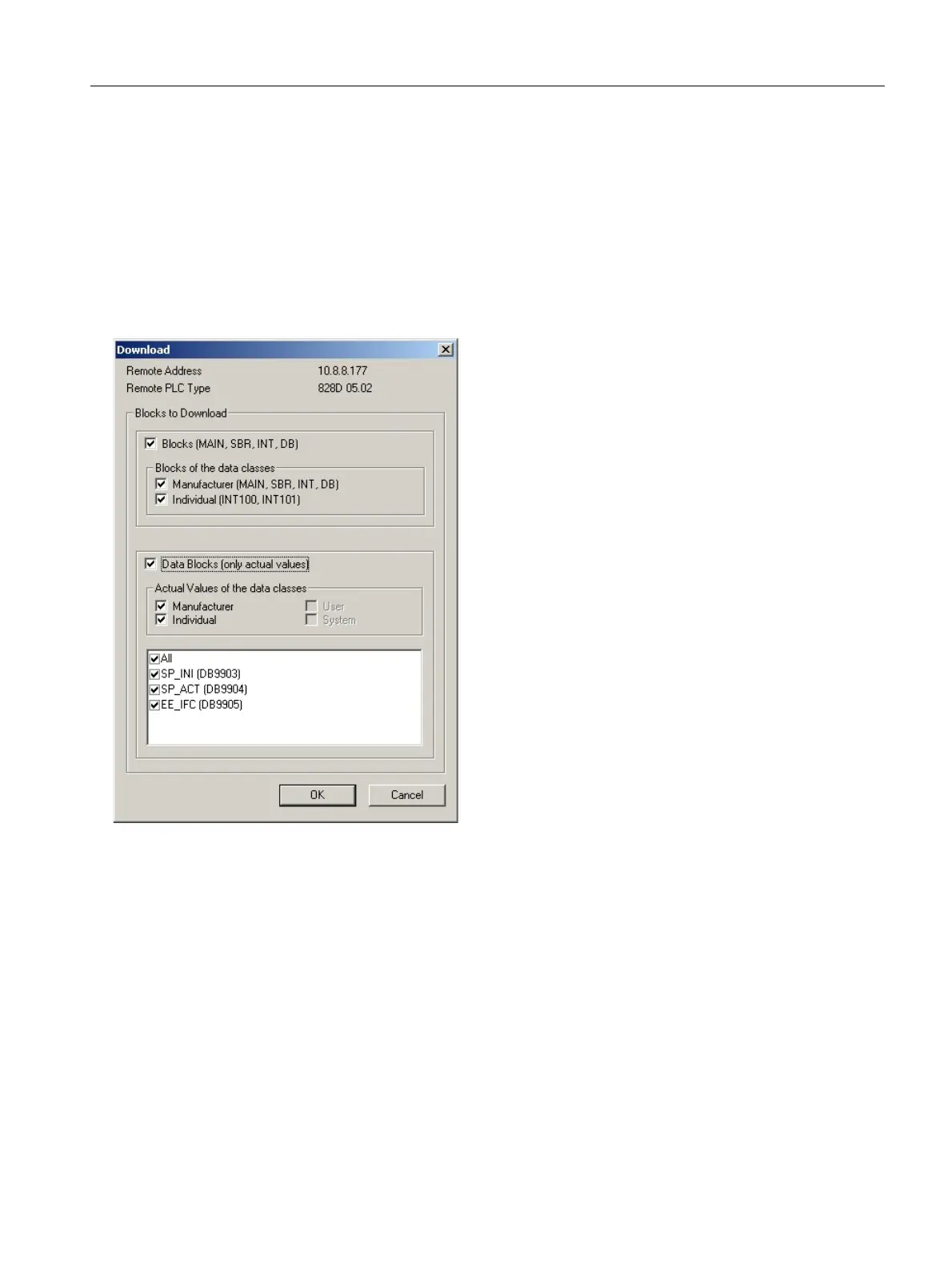

1. In the window "Load into CPU", select the data class(es) whose blocks are to be loaded:
2. Select the option "Blocks (MAIN, SUBR, INT, DB)", if program or data block changes are to be loaded into the
target system.
3. Select the option "Data blocks (only actual values)" if actual values of one or several data blocks are to be
loaded into the target system.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
