Siemens SINUMERIK 828D Function Manual

P3: Basic PLC Program for SINUMERIK 840D sl
13.13 Block descriptions
Basic Functions
1050 Function Manual, 09/2011, 6FC5397-0BP40-2BA0

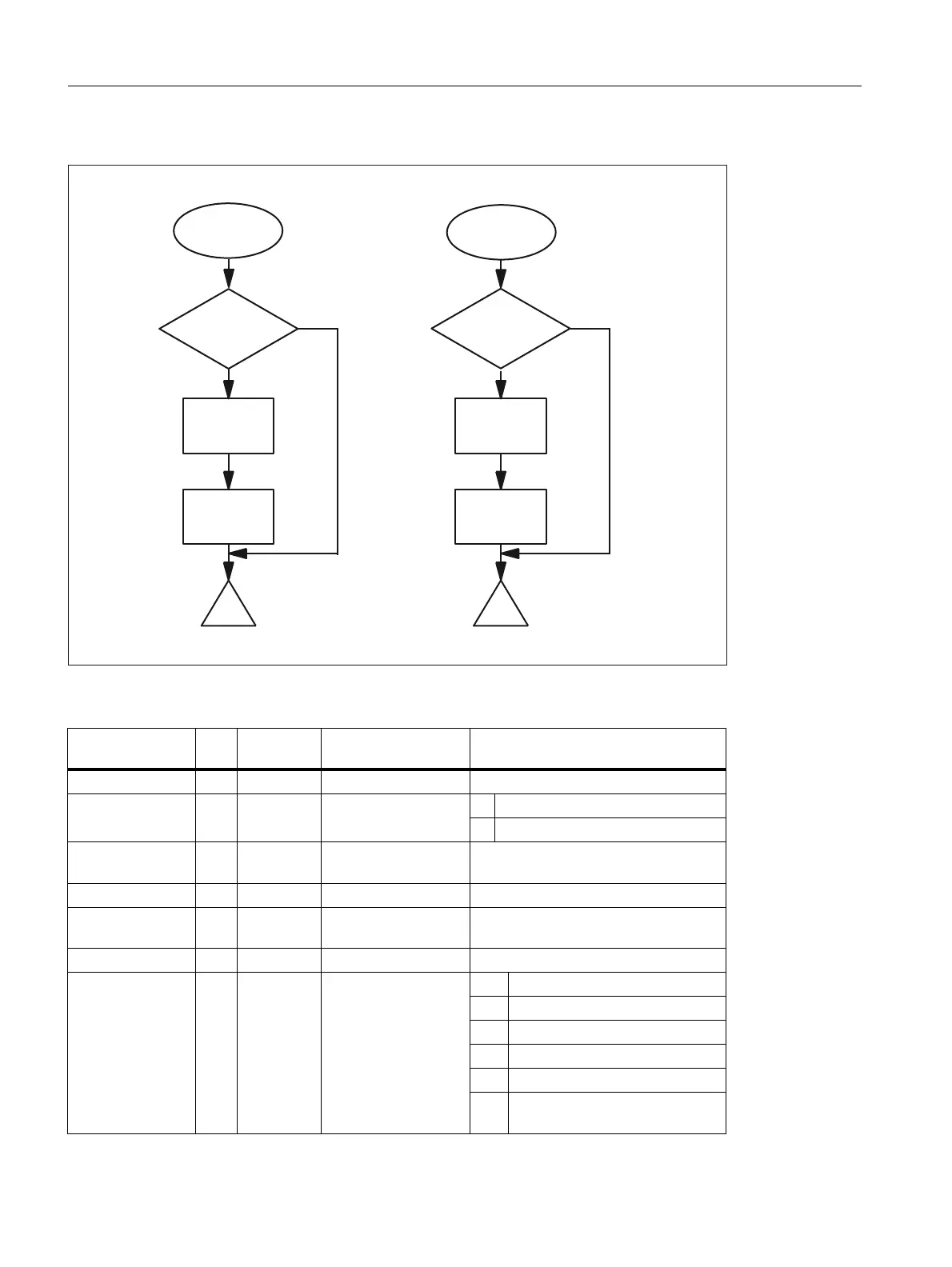

Basic structure in NCK:
Variable value ranges
The following signals are relevant:
Signal
Typ
e
Type Value range Comment
Enable I BOOL = FC 21 active
Funct I BYTE 3, 4 3: Read data
4: Write data
S7Var I ANY S7 data area, except
local data
Source/destination data storage area
IVAR1 I INT 0 ... 4095 Position offset
IVAR2 I INT -1 ... 4095 Semaphore byte
Transfer without semaphore: -1
Error O BOOL
ErrCode O INT 20: Alignment error
21: illegal position offset
22: Illegal semaphore byte
23: No new data to be read
24: Cannot write data
25: Local data parameterized for
S7Var
6HPDSKRUH 
6HPDSKRUH 
6HPDSKRUH "
6HPDSKRUH "
\HV
QR
\HV
QR
:ULWHLQ
1&.
7UDQVIHU
GDWDIURPWR
3/&
5HDGGDWD
IURP3/&
5HDGLQ
1&.
