Siemens SINUMERIK 828D Function Manual

P4: PLC for SINUMERIK 828D
14.3 Programming
Basic Functions
1128 Function Manual, 09/2011, 6FC5397-0BP40-2BA0
Procedure

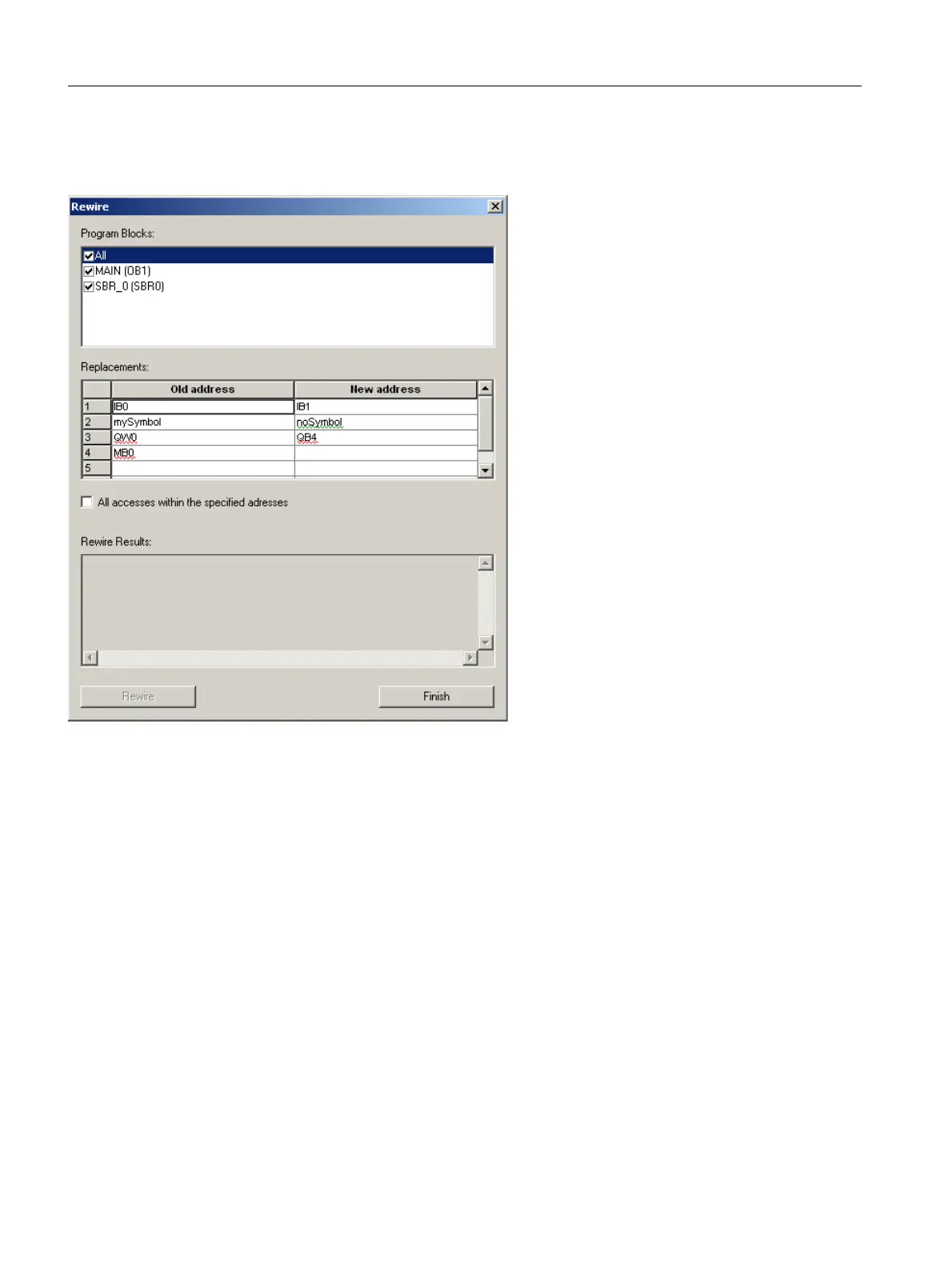

Use the dialog box "rewire", to rewire addresses:
Please proceed as follows:
1. Open the dialog box "Rewire" in the LAD editor using the context menu ("Rewire…") or using the menu bar
("Edit > Rewire…").
2. In the list "Program blocks" (list of all of the POUs available in the project), select the POUs in which the rewire
operation is to be executed.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
