14.6 Function interface
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
1165
Error in job
DB1200.DBX5000.1 = 1 job had an error, execution terminated.
DB1200.DBX5000.1 = 0 otherwise is zero, if the user resets "Start".
Possible error causes
• Index of the PI service (DB1200.DBB4001) outside the valid range
• Parameter error

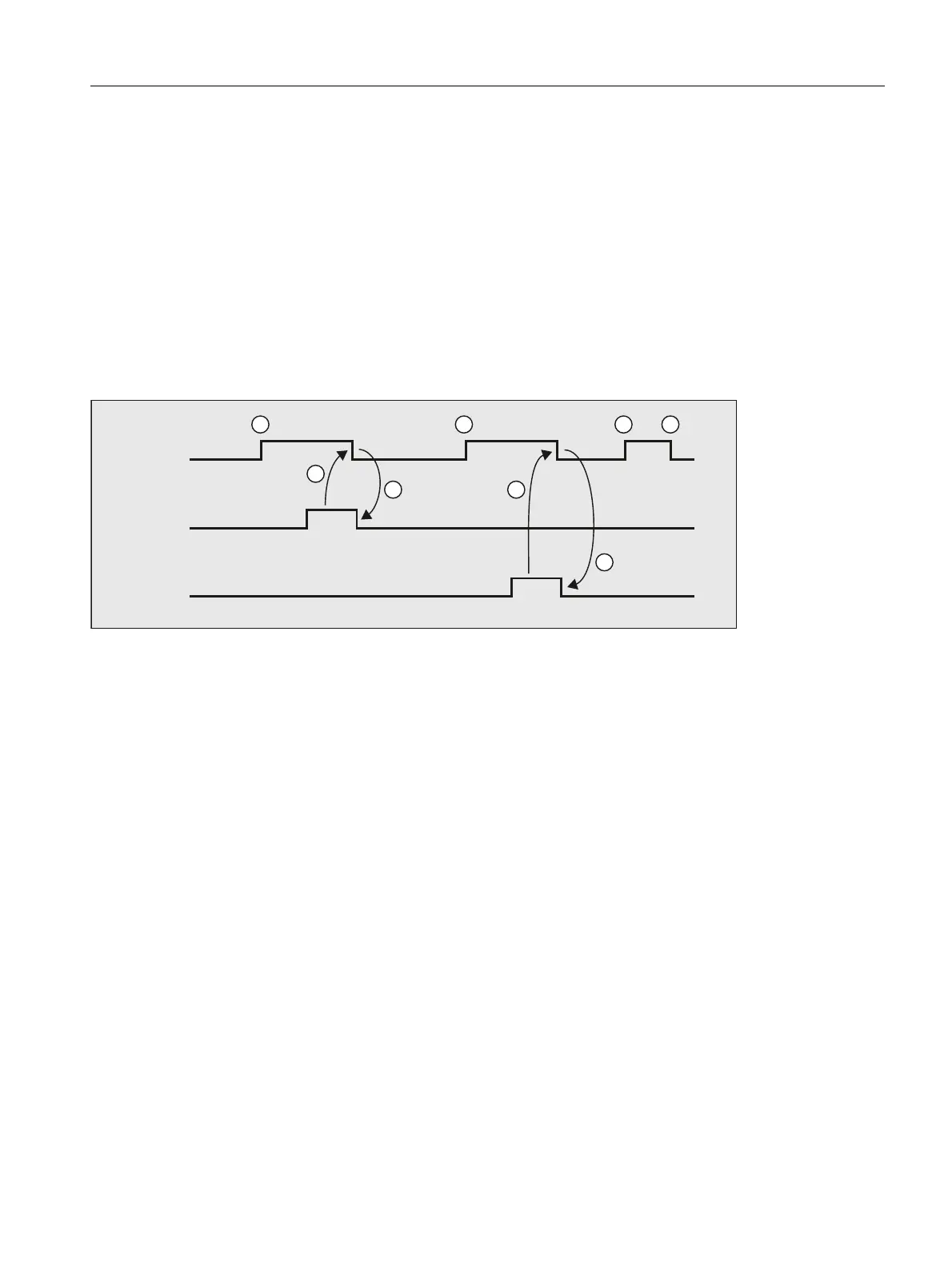

PI services: Cycle diagram
① User sets the signal "Start", job execution starts.
② After the PLC firmware signals "Job completed", the user resets the signal "Start".
③ By resetting the signal "Start", the PLC firmware resets the signal "Job completed".
④ After the PLC firmware signals "Error in job", the user resets the signal "Start".
⑤ By resetting the signal "Start", the PLC firmware resets the signal "Error in job".
⑥ If the user accidentally resets the signal "Start" before one of the signals "Job completed" or
"Error in job" is received, then the result signals for this job are not updated. However, the job is
executed.





(UURULQMRE
-RE
FRPSOHWHG
6WDUW
