Siemens SINUMERIK 828D Function Manual

P4: PLC for SINUMERIK 828D
14.6 Function interface
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
1181

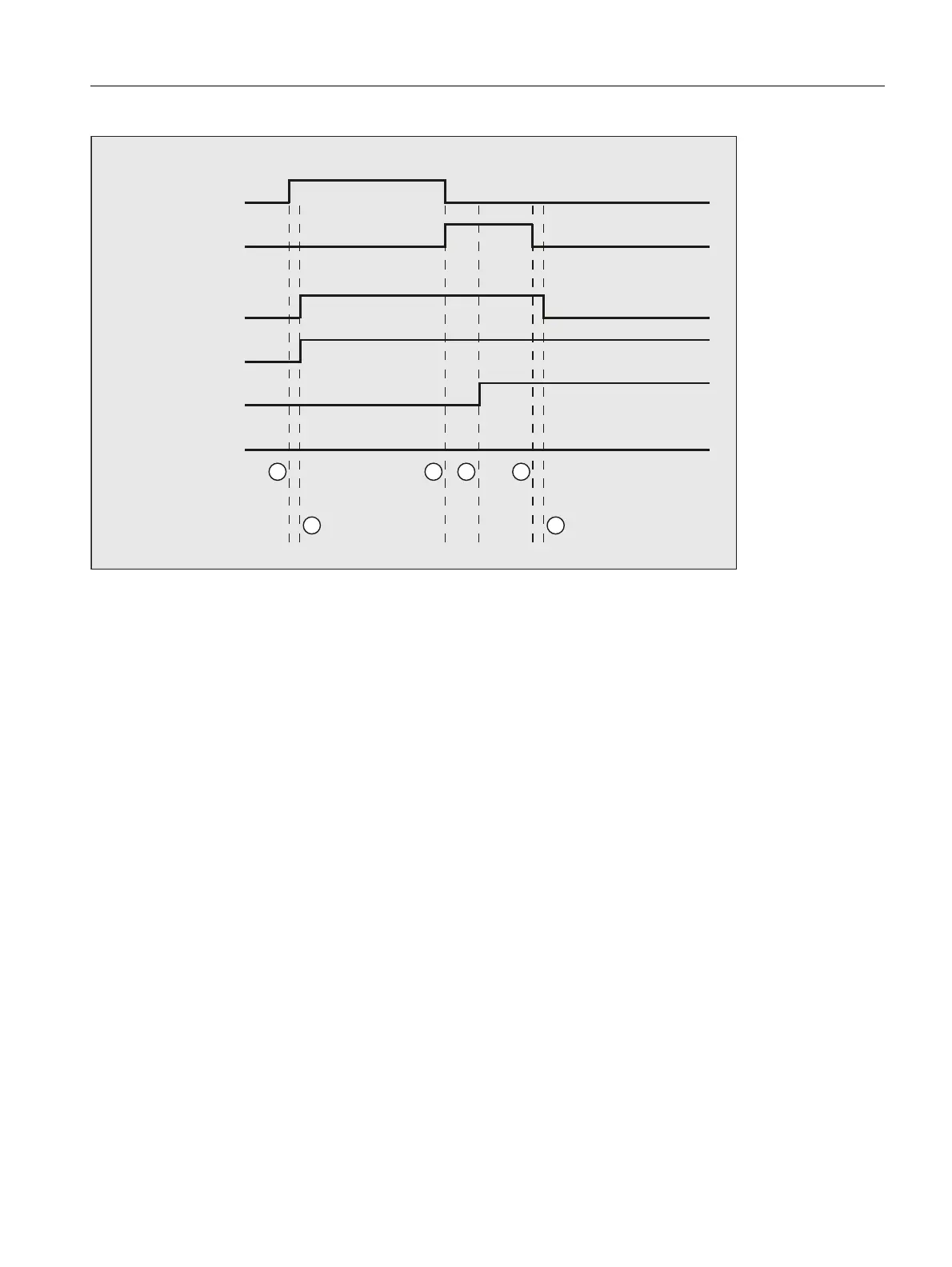

① Function activated by user with a positive edge of Start .
Note: This is only possible when the
Positioning axis active signal is reset!
② Signals Positioning axis active and Position reached are signaled back, Position reached is in
this case irrelevant.
③ The user stops spindle oscillation by resetting Start and setting Stop .
④ The spindle stops and the Spindle stationary signal is set.
⑤ The user then resets Stop .
⑥ Reset of Stop causes Positioning axis active to be reset.


 


6SLQGOHVWDWLRQDU\
6WRS
6WDUW
(UURU
3RVLWLRQUHDFKHG
3RVLWLRQLQJD[HVDFWLYH
WR3/&D[LV
IURP3/&D[LV

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
