P4: PLC for SINUMERIK 828D
14.6 Function interface
Basic Functions
1188 Function Manual, 09/2011, 6FC5397-0BP40-2BA0

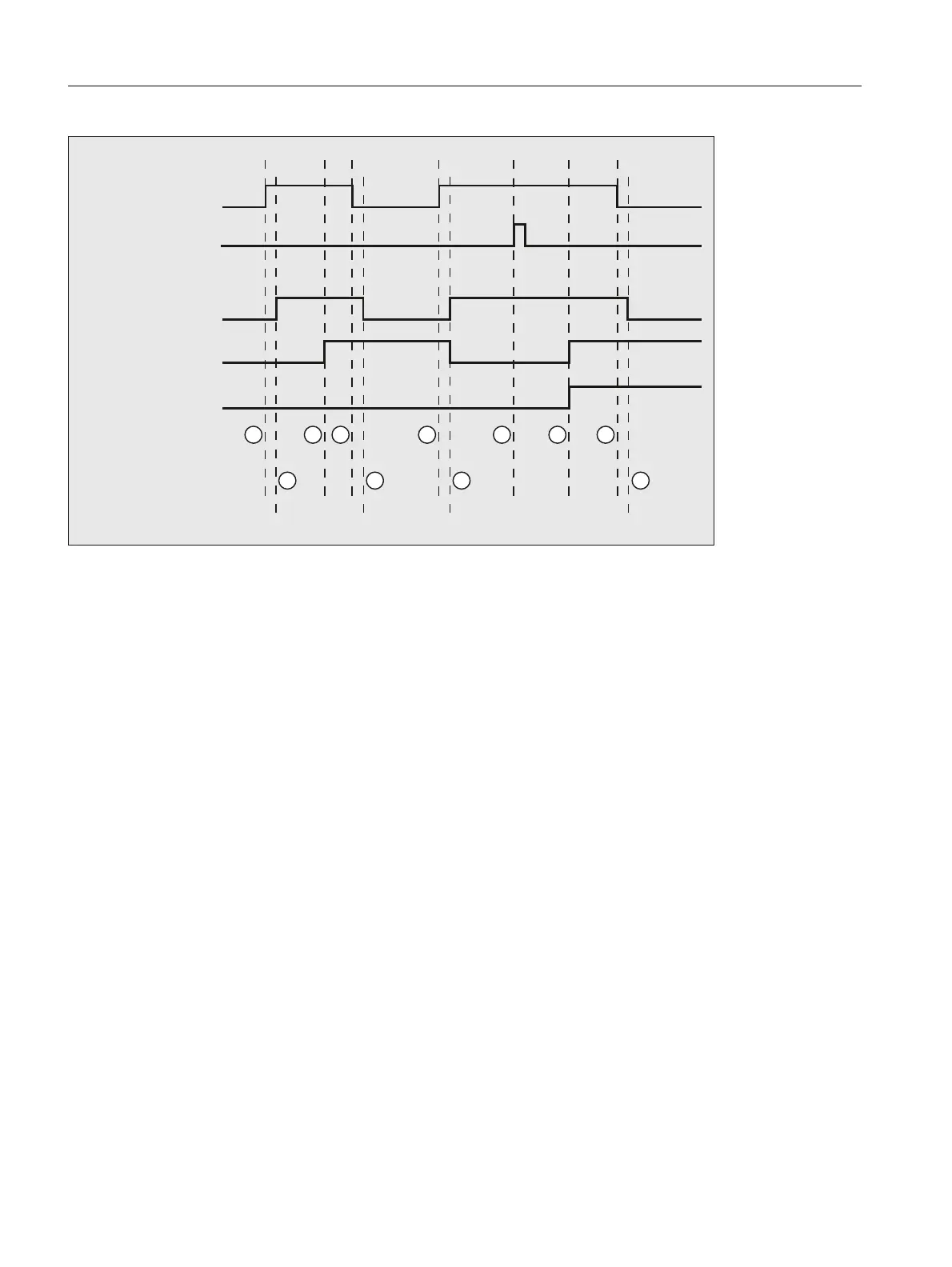

First function activation using positive edge of
Start
.
Positioning axis active
= 1 shows that the function is active and that the output signals are valid,
Position reached
and
Axis stationary
are possibly withdrawn.
Positive acknowledgement
Position reached
= 1 and
Positioning axis active
= 1
Reset of function activation after receipt of acknowledgment
Signal change via function
Positioning is interrupted by delete distance to go, signal duration min. 1 PLC cycle.
The signals
Position reached
and
Error
are reset, the
Error number
can be read (in this case,
30).
(UURU
'HOHWHGLVWDQFHWRJR
6WDUW
3RVLWLRQUHDFKHG
3RVLWLRQLQJD[HVDFWLYH
WR3/&D[LV
IURP3/&D[LV
