Siemens SINUMERIK 828D Function Manual

P4: PLC for SINUMERIK 828D
14.6 Function interface
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
1191

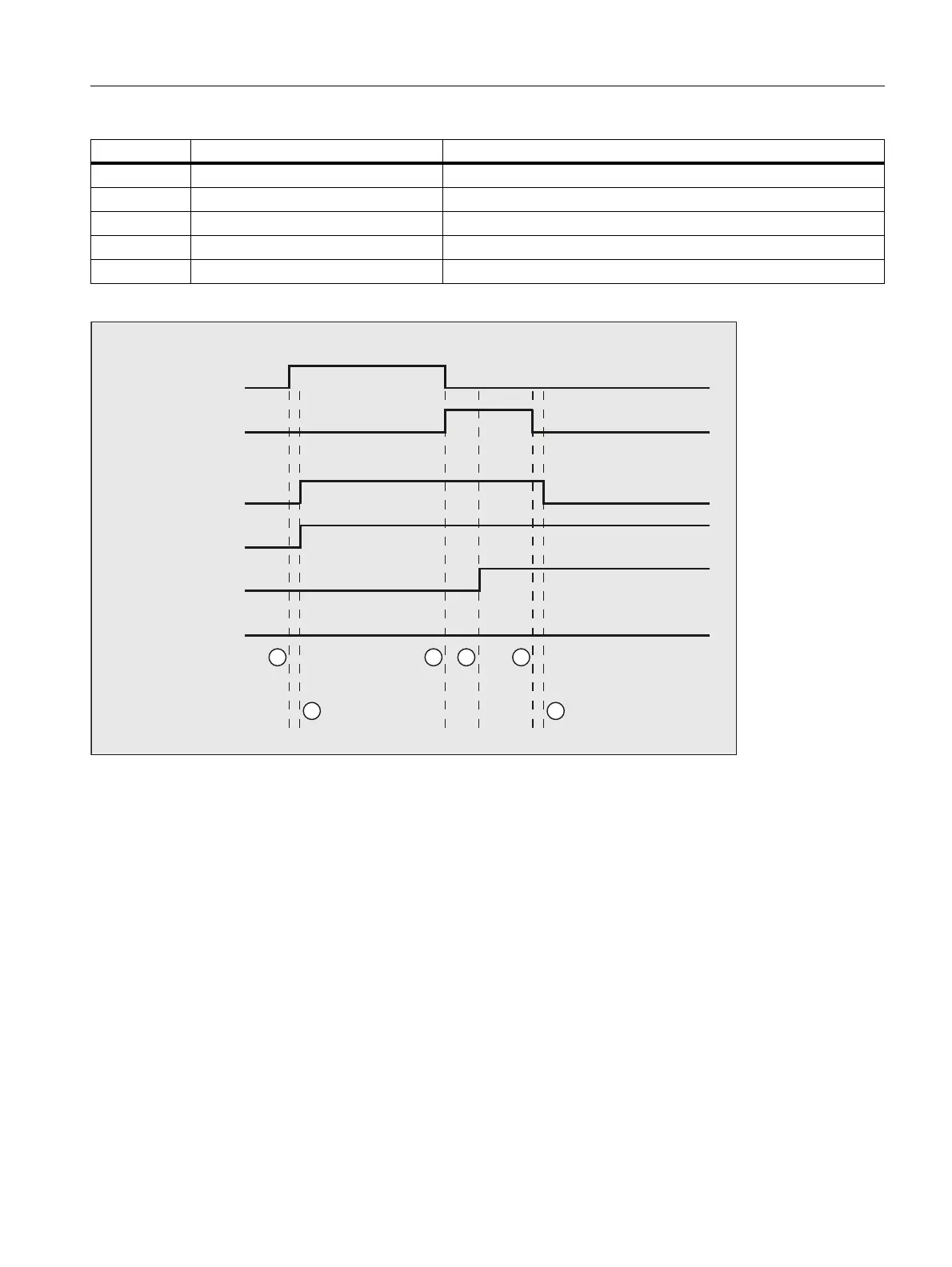

DB390x NCK → PLC status signals Remark
DBX3000.7 Positioning axes active 1: for start or stop == 1,
DBX3000.6 Position reached 1: Setpoint speed is output
DBX3000.1 Error 1: Error when traversing, evaluate error number in DBB3003!
DBB3003 Error number
DBX1.4 Axis/spindle stationary
① Function activated by user with a positive edge of Start .
② Signals Positioning axis active and Position reached are signaled back, Position reached is in
this case irrelevant.
③ The user stops spindle rotation by resetting Start and setting Stop .
④ The spindle stops and the Spindle stationary signal is set.
⑤ The user then resets Stop .
⑥ Reset of Stop causes Positioning axis active to be reset.


 


6SLQGOHVWDWLRQDU\
6WRS
6WDUW
(UURU
3RVLWLRQUHDFKHG
3RVLWLRQLQJD[HVDFWLYH
WR3/&D[LV
IURP3/&D[LV
