Siemens SINUMERIK 828D Function Manual

W1: Tool offset
18.4 Tool cutting edge
Basic Functions
1448 Function Manual, 09/2011, 6FC5397-0BP40-2BA0
Tool offset data
Tool offset data (TOA data) is stored in the system variables.

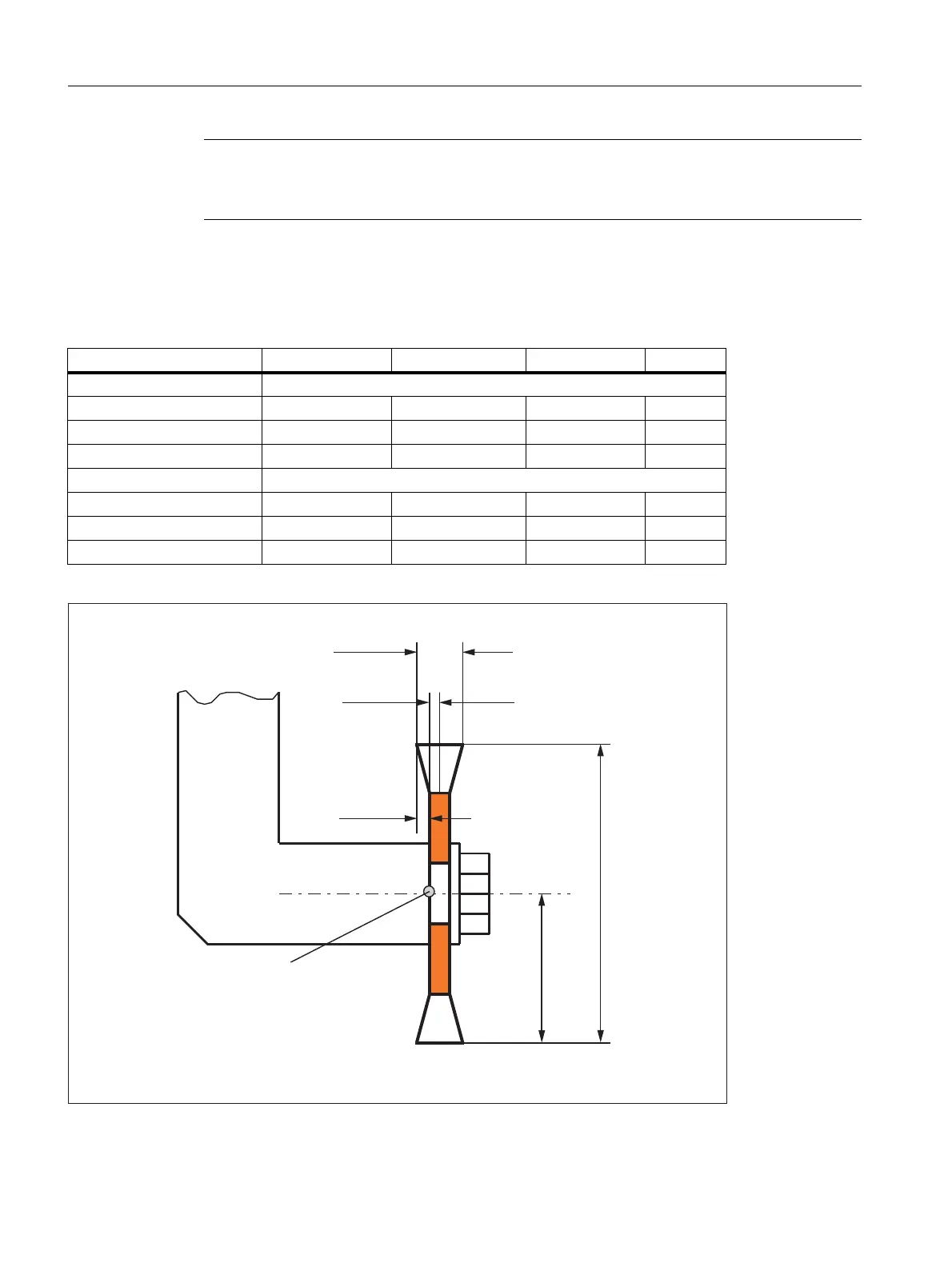

Example Slotting saw tool type (Type 700)
Figure 18-3 Geometry of slotting saw (analogous to angle head cutter)
The width of the saw blade is accounted for with tool radius compensation (G40 to G42 as follows:
Note
The tool type has no significance in the turning tool groups.
Nonlisted numbers are also permitted, in particular with grinding tools (400-499).
Geometry Wear Base Einheit
Length compensation
Length 1 $TC_DP3 $TC_DP12 $TC_DP21 mm
Length 2 $TC_DP4 $TC_DP13 $TC_DP22 mm
Length 3 $TC_DP5 $TC_DP14 $TC_DP23 mm
Saw blade compensation
Diameter d $TC_DP6 $TC_DP15 mm
Slot width b $TC_DP7 $TC_DP16 mm
Projection k $TC_DP8 $TC_DP17 mm
7RRODGDSWHUUHIHUHQFH
SRLQW
EN /
G /
/
E
N
/
G

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
