Z1: NC/PLC interface signals
19.6 Mode group, channel, program operation, reset response (K1)
Basic Functions
1682 Function Manual, 09/2011, 6FC5397-0BP40-2BA0

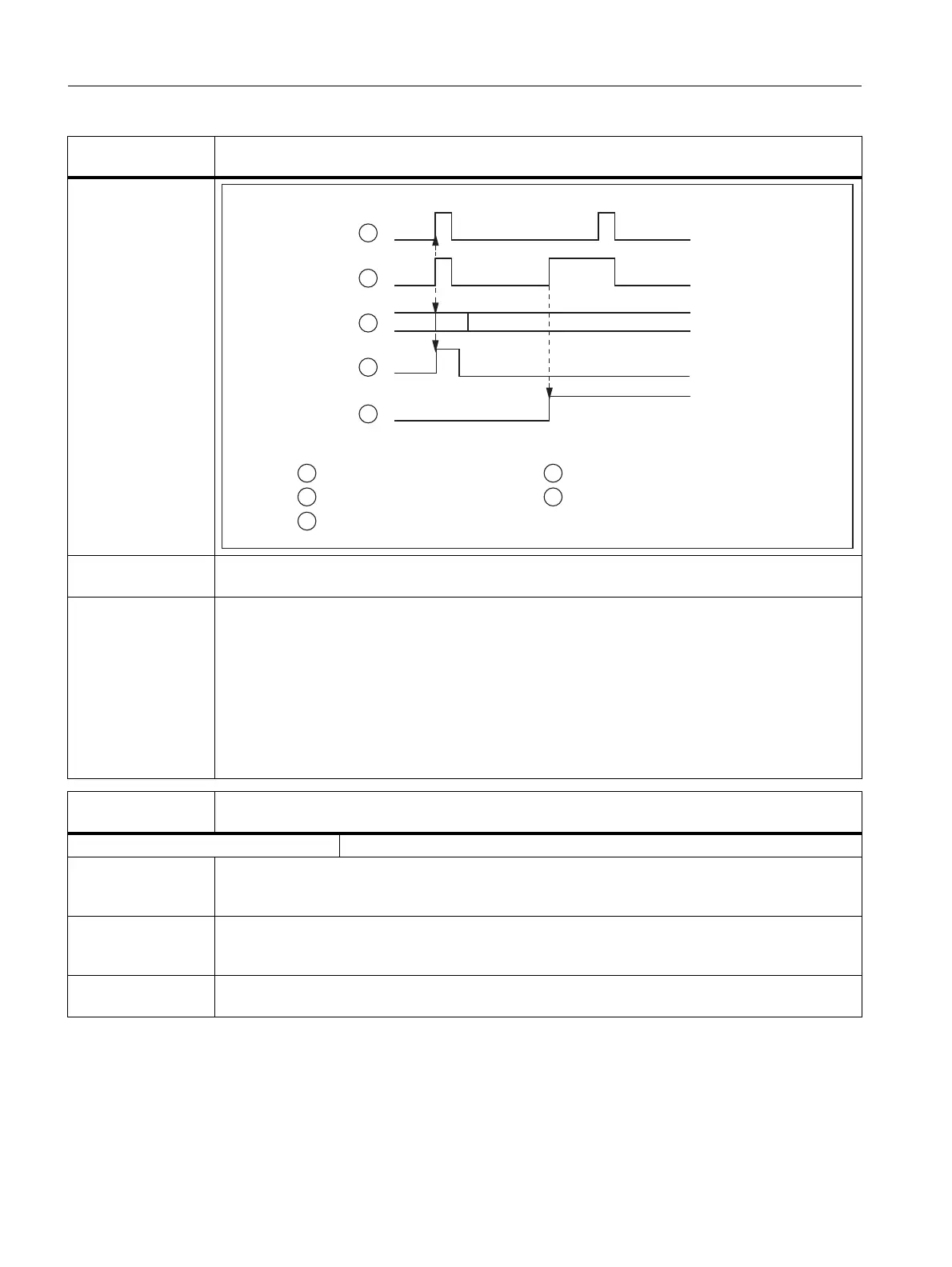

Screen
Application
example(s)
The PLC can detect the end of program processing with this signal and react appropriately.
Special cases,
errors, ......
•The M02 and M30 functions have equal priority.
• The interface signal:
DB21, ... DBX33.5 (M02/M30 active)
is available as steady-state signal after the end of the program.
• Not suitable for automatic follow-on functions such as workpiece counting, bar feed, etc. M02/
M30 must be written in a separate block and the word M02/M30 or the decoded M signal used for
these functions.
• Auxiliary functions that could result in a read-in operation being stopped and any S values that
are to be operative beyond M02/M30 must not be written in the last block of a program.
DB21, ...
DBX33.6 Transformation active
Edge evaluation: No Signal(s) updated: Cyclic
Signal state 1 or
edge change
0 → 1
The NC command TRAORI (activate transformation) is programmed in the NC part program. This
block has been processed by the NC and the transformation is now activated.
Signal state 0 or
edge change
1 → 0
No transformation active.
Additional
references
/PGA/Programming Manual Advanced
DB21, ...
DBX33.5 M02/M30 active
0
0FKDQJHVLJQDO3/&F\FOHWLPH
,600DFWLYH
1&EORFNZLWK0
%ORFNSURFHVVHG
'DWDWUDQVIHUWRZRUNLQJPHPRU\
