Siemens SINUMERIK 828D Function Manual

B2: Acceleration
4.2 Functions
Basic Functions
248 Function Manual, 09/2011, 6FC5397-0BP40-2BA0

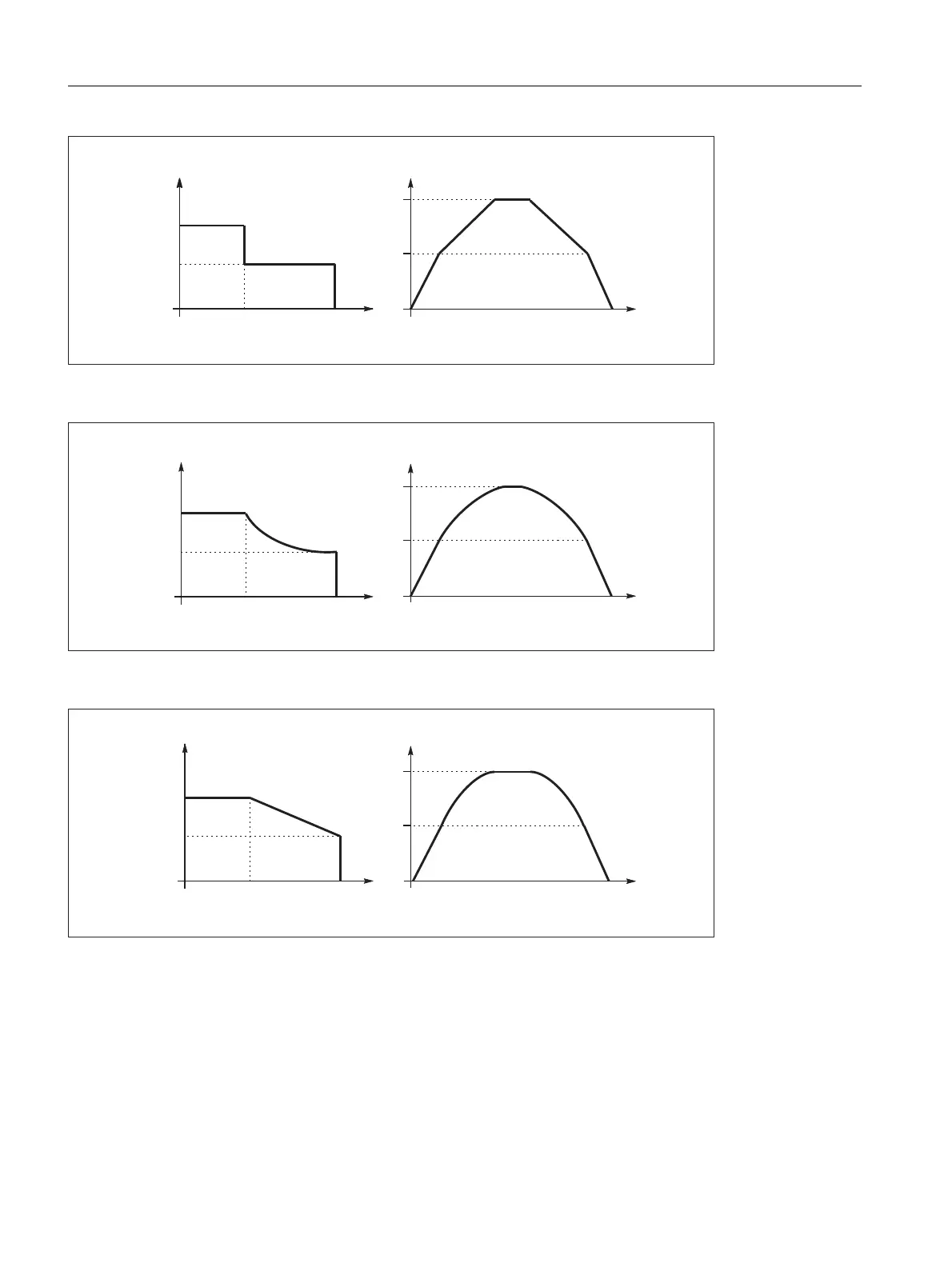

Figure 4-7 Acceleration and velocity characteristic with acceleration reduction: 0 = constant
Hyperbolic characteristic
Figure 4-8 Acceleration and velocity characteristic with acceleration reduction: 1 = hyperbolic
Linear characteristic
Figure 4-9 Acceleration and velocity characteristic with acceleration reduction: 2 = linear
The key data for the characteristic curves equate to:
v
max
= $MA_MAX_AX_VELO
v
red
= $MA_ACCEL_REDUCTION_SPEED_POINT * $MA_MAX_AX_VELO
a
max
= $MA_MAX_AX_ACCEL
a
red
= (1 - $MA_ACCEL_REDUCTION_FACTOR) * $MA_MAX_AX_ACCEL
Y
UHG
Y
PD[
Y
PD[
Y
UHG
D
PD[
D
UHG
Y
D
Y
W
Y
PD[
Y
UHG
D
UHG
D
PD[
Y
UHG
Y
PD[
Y
D
Y
W
Y
PD[
Y
UHG
D
UHG
D
PD[
Y
UHG
Y
PD[
YD
Y
W

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
