Siemens SINUMERIK 828D Function Manual

K2: Axis Types, Coordinate Systems, Frames
10.8 Examples
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
805

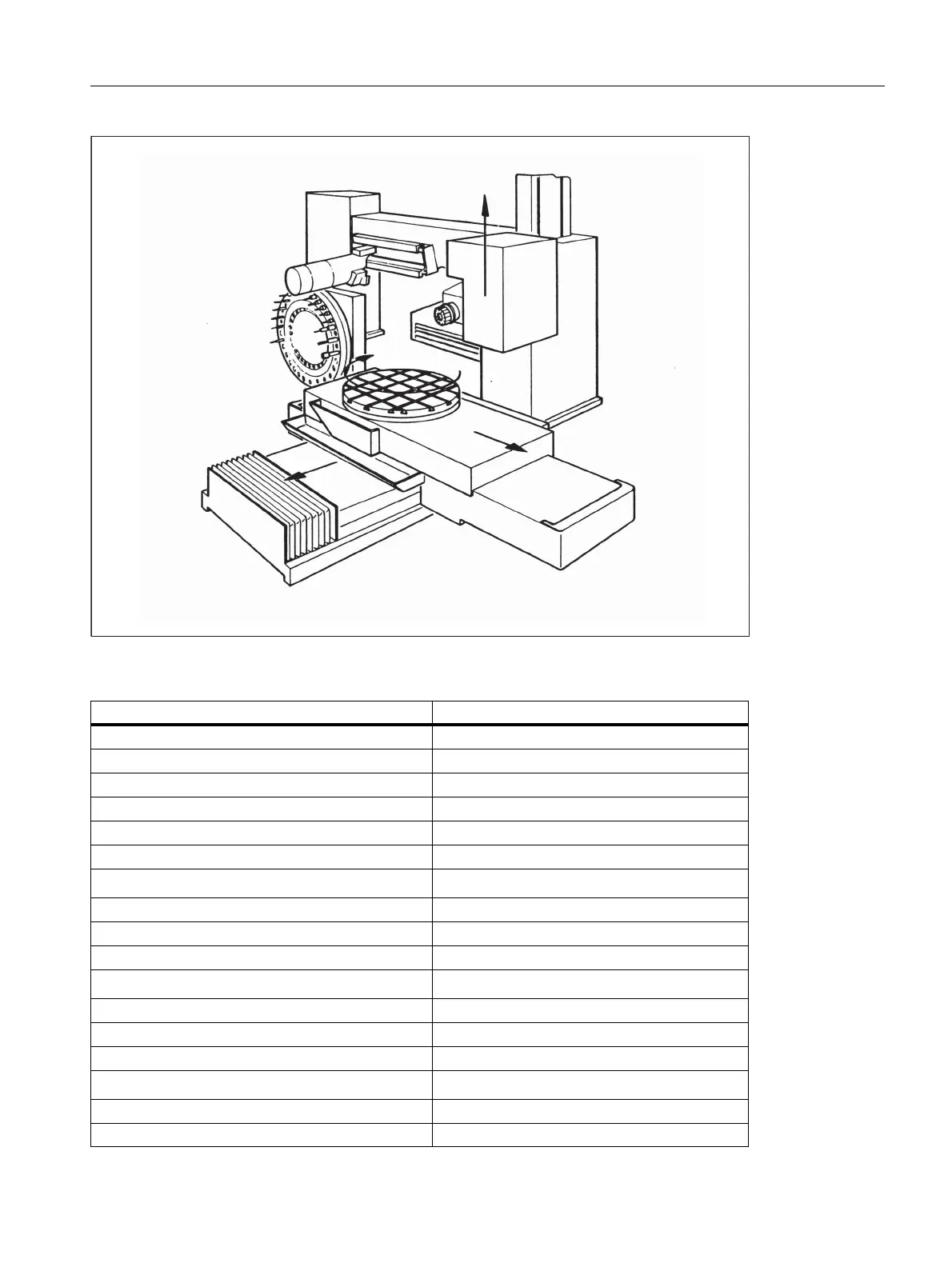

Parameterization of the machine data
Machine data Value
MD10000 AXCONF_MACHAX_NAME_TAB[0] = X1
MD10000 AXCONF_MACHAX_NAME_TAB[1] = Y1
MD10000 AXCONF_MACHAX_NAME_TAB[2] = Z1
MD10000 AXCONF_MACHAX_NAME_TAB[3] = B1
MD10000 AXCONF_MACHAX_NAME_TAB[4] = W1
MD10000 AXCONF_MACHAX_NAME_TAB[5] = C1
MD20050 AXCONF_GEOAX_ASSIGN_TAB[0] = 1
MD20050 AXCONF_GEOAX_ASSIGN_TAB[1] = 2
MD20050 AXCONF_GEOAX_ASSIGN_TAB[2] = 3
MD20060 AXCONF_GEOAX_NAME_TAB[0] =X
MD20060 AXCONF_GEOAX_NAME_TAB[1] =Y
MD20060 AXCONF_GEOAX_NAME_TAB[2] =Z
MD20070 AXCONF_MACHAX_USED[0] = 1
MD20070 AXCONF_MACHAX_USED[1] = 2
:=0
%
6
<
;
=

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
