P3: Basic PLC Program for SINUMERIK 840D sl
13.12 Basic conditions and NC VAR selector
Basic Functions
Function Manual, 09/2011, 6FC5397-0BP40-2BA0
915

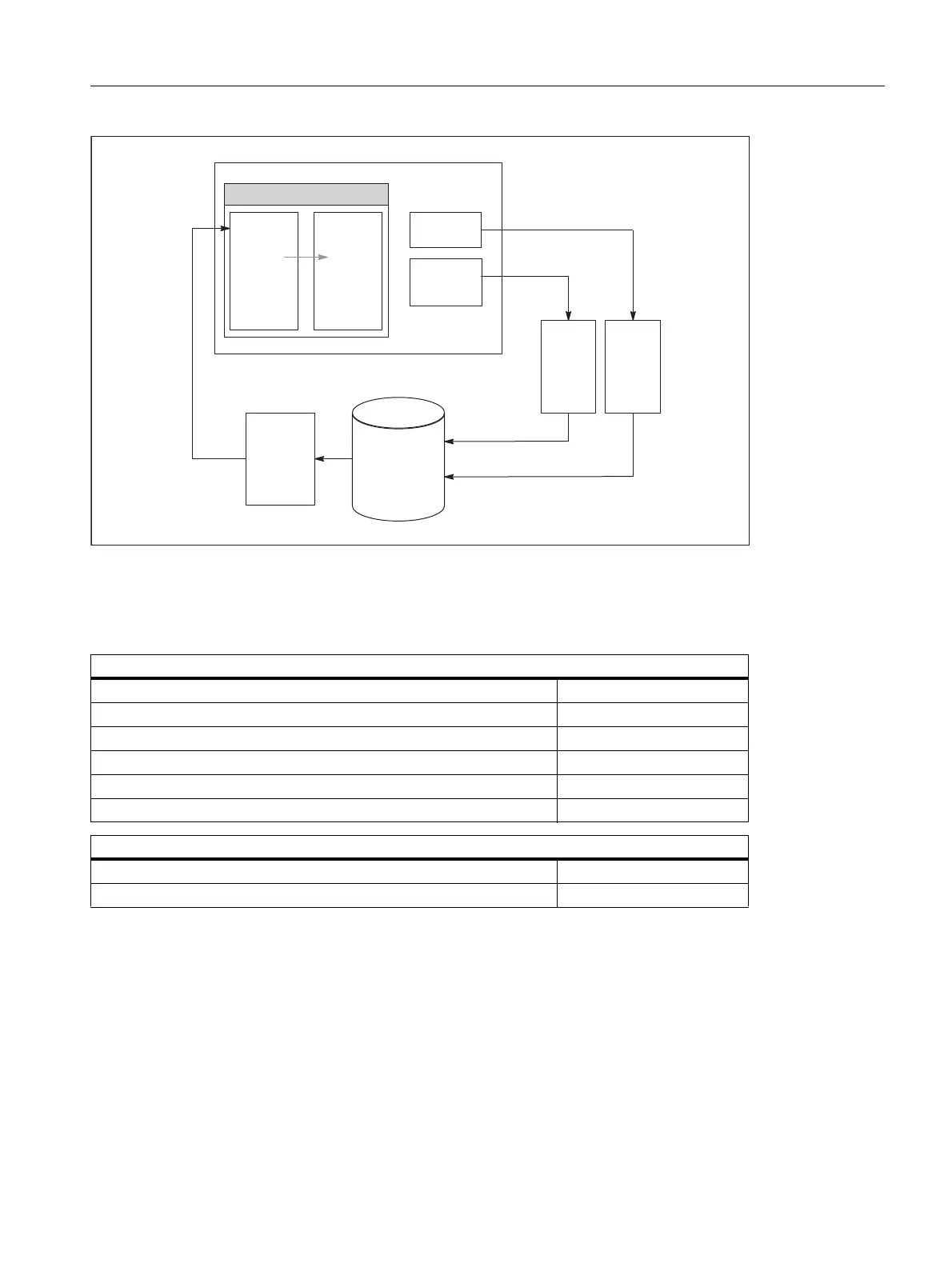

Figure 13-20 NC VAR selector
After the "NC VAR selector" application has been started, select a list of variables of an NC variant (hard disk →
file Ncv.mdb) to display all the variables contained in this list in a window.
The variable list ncv*.mdb is separated on:
The user can also transfer variables to a second list (separate window). This latter selection of variables can then
be stored in an ASCII file or edited as a STEP 7 source file (.awl) and stored.
Once he has generated a PLC data block by means of the STEP 7 compiler, the programmer is able to read or
write NCK variables via the basic program function blocks "PUT" and "GET" using the STEP 7 file.
The list of selected variables is also stored as an ASCII file (file extension .var).
SINUMERIK 840D
NC variables including machine and setting data: ncv_NcData.mdb
Machine data for 611D drive: ncv_611d.mdb
Machine data for 611D linear drive: ncv_611dLinear.mdb
Machine data of the 611D drive, Performance 2: ncv_611d_P2.mdb
Machine data of the 611D linear drive, Performance 2: ncv_611d_P2Linear.mdb
Machine data of the hydraulic drive: ncv_Hydraulics.mdb
SINUMERIK 840D sl
NC variables including machine and setting data: ncv_NcData.mdb
Parameters of the Drive: ncv_SinamicsServo.mdb
)XOOOLVW
6HOHFWHG
OLVW
3URMHFW
*HQHUDWH
FRGH
6HOHFWHG
OLVW
6DYH
+DUGGLVN
DZOYDU
PGE
YDUB
YDUB
YDUB
YDUB
YDUB
