P3: Basic PLC Program for SINUMERIK 840D sl
13.12 Basic conditions and NC VAR selector
Basic Functions
920 Function Manual, 09/2011, 6FC5397-0BP40-2BA0
The field variables (e.g. axis area, T area data, etc.) are indicated by means of brackets ([.]). Additional
information must be specified here. When the variables are transferred to the project list, the additional
information required is requested.
Displaying subsets
Double-click on any table field (with the exception of variable fields) to display a window in which filter criteria can
be preset.

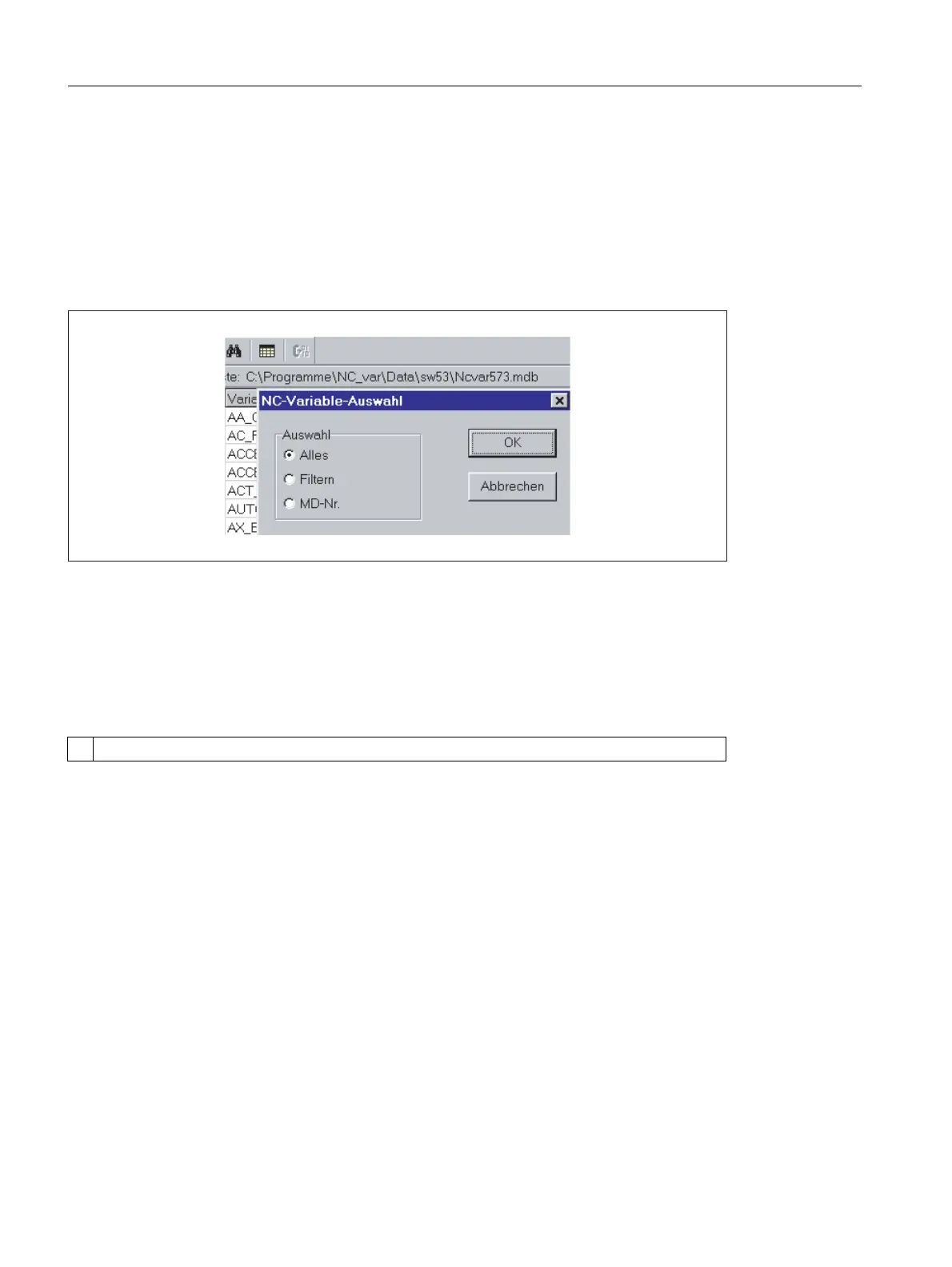

Figure 13-26 Window with filter criteria for displaying list of variables
There are three options:
• Display all data
• Input area, block and name (incl. combinations)
• Display MD/SE data number
The following wildcards can also be used:
Example search criteria
* To extend the search criterion as required
Name search criterion:
CHAN*
Found: CHAN_NAME
chanAlarm
chanStatus
channelName
chanAssignment
