Inserting slide-in labels
Labels for keys for milling machines and lathes are included in the accessories pack as slide-
in labels. Proceed as described below to insert or replace the slide-in labels for the MCP USB.
The slide-in labels are designated with E1 to E3 in the diagram below.

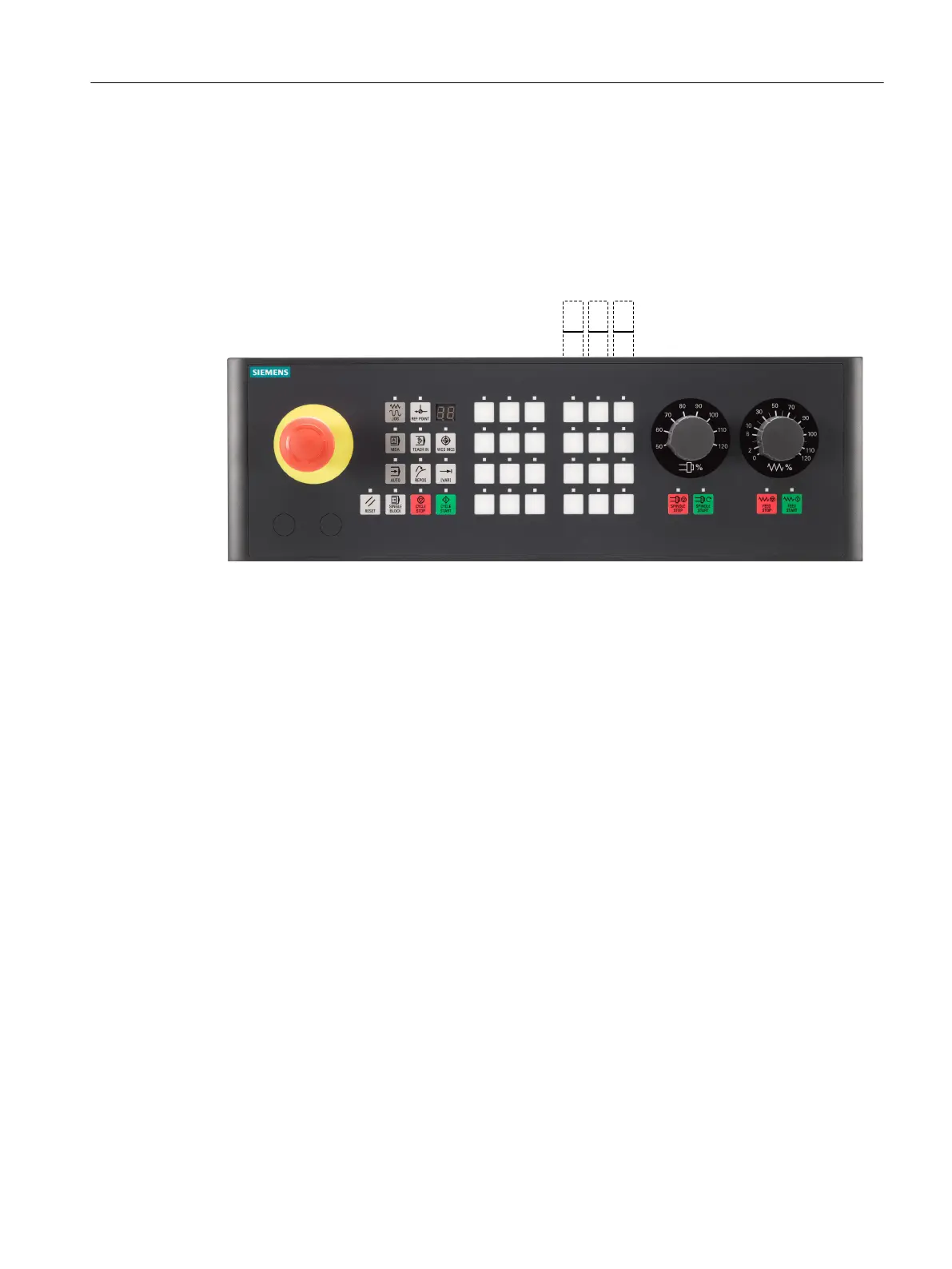

Figure 7-5 Slide-in labels, example of MCP 483 USB
Printing customized slide-in labels
Siemens provides a symbol library with key symbols. Customers can print their own slide-in
labels using the A4 blank films included in the accessory pack.
Siemens also provides a template file to print customized key labels. Copy the symbols from
the symbol library to the required key position in the template.
Cutting slide-in labels
The blank films contained in the accessory pack are precut to the correct length. After printing,
you just have to separate the print-in labels.
Anschließbare Komponenten
7.1 MCP 483 USB
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 105
