Siemens SINUMERIK 828D Manual

2.2 PPU version 24x.3 BASIC

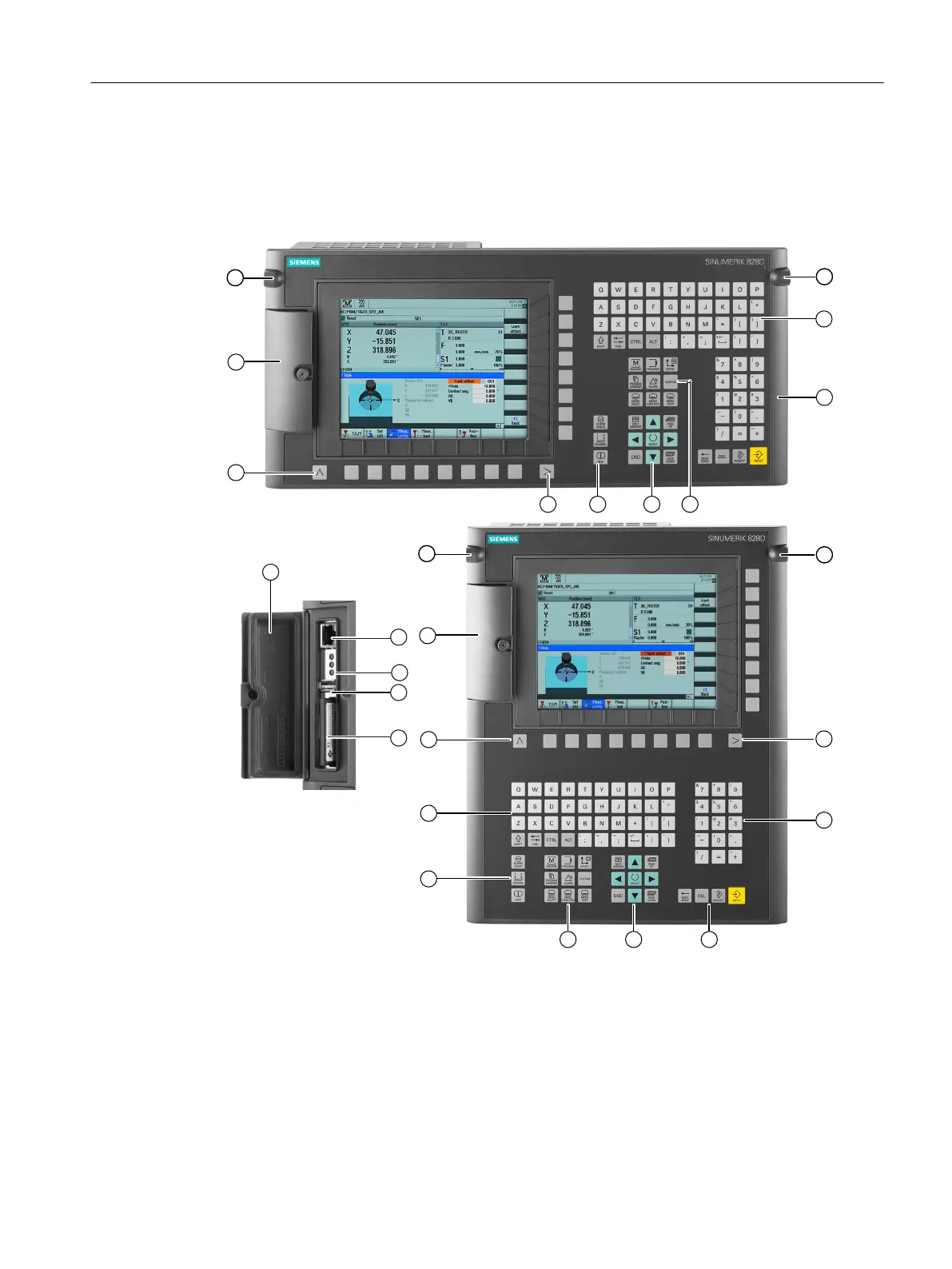

Front side of the PPU 24x.3 BASIC
BASIC
BASIC






















① ⑩ Front cover ⑧ Menu forward key
② Menu back key ⑨ 3/8" threads for additional components
③ Alphabetic key group ⑪ X127, Ethernet (service socket)
④ Control key group ⑫ Status LED: RDY, NC, CF
⑤ Hotkey group ⑬ X125, USB interface
⑥ Cursor key group ⑭ Slot for CompactFlash card with user
data
⑦ Numerical key group
System description
2.2 PPU version 24x.3 BASIC
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 19

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
