7.4.1 Operator controls and display elements
Operator controls





① Operating modes and machine functions
② 16 customer keys
③ Spindle control
④ Slot for EMERGENCY STOP button or override switch for the spindle control
⑤ Feed control with override switch
⑥ Slots for control devices 16 mm
⑦ Program control
⑧ Key-operated switch

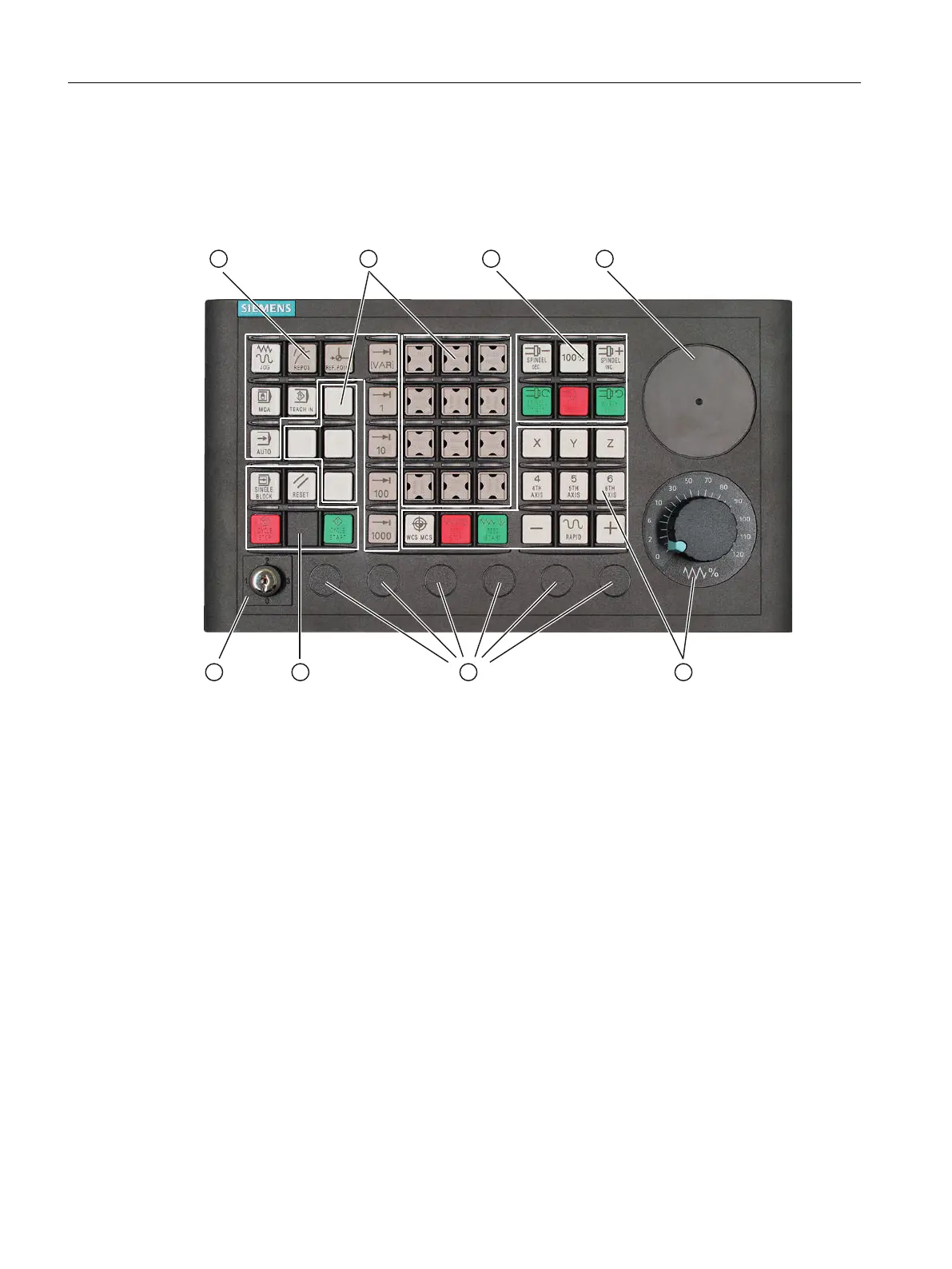

Figure 7-19 Arrangement of the MCP 310C PN control elements
Emergency Stop button
If an EMERGENCY STOP button is to be retrofitted, refer to Chapter Operator controls and
display elements (Page 121) of the MCP 483C PN.
Anschließbare Komponenten
7.4 MCP 310C PN
PPU and components
138 Manual, 05/2015, 6FC5397-2DP40-3BA4

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
