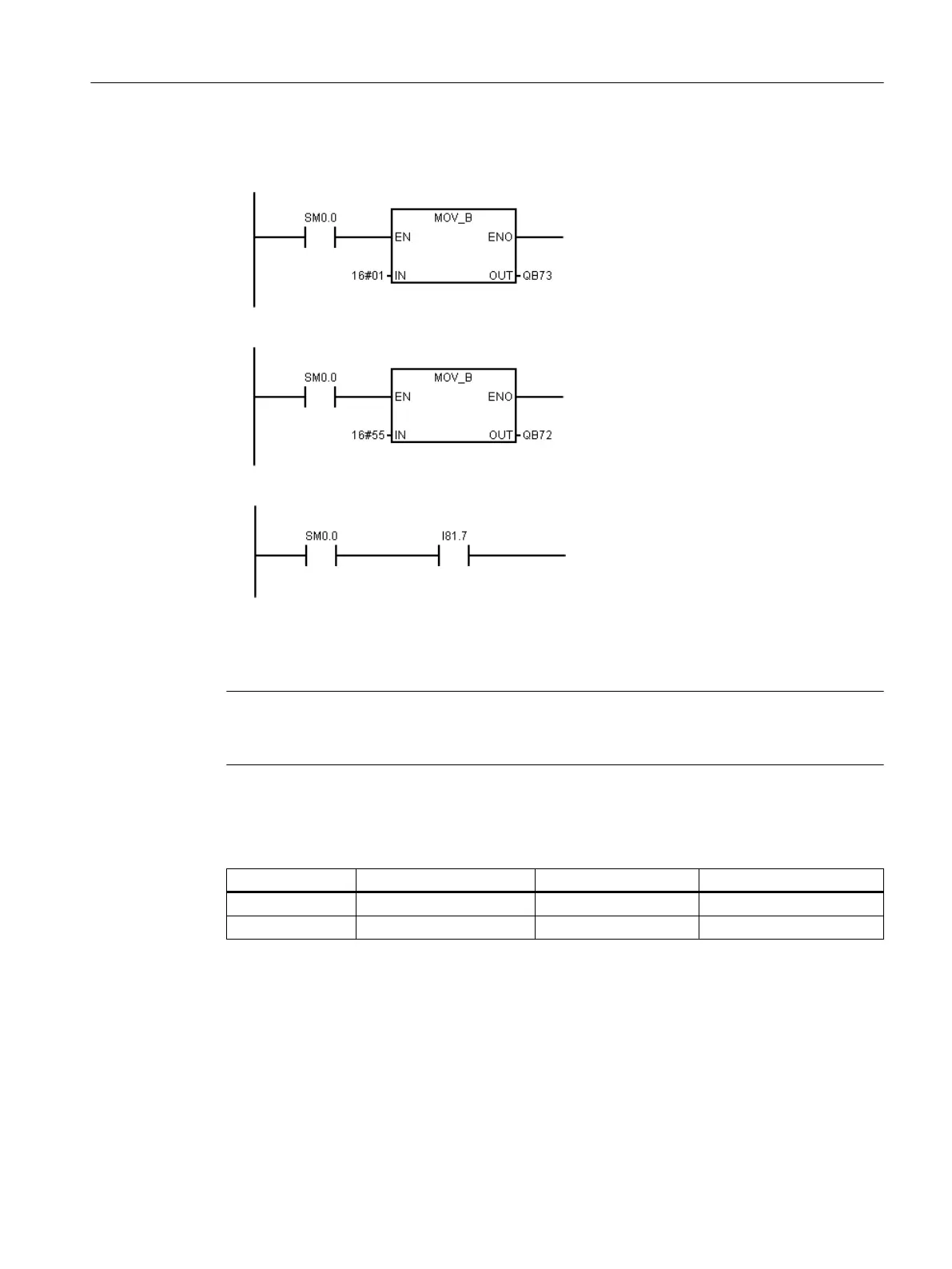

Examples of programming
1. Determine control type:
2. Set the operating mode:
3. Query the error status bit in cyclic operation:
7.9.4.4 Analog value representation
Note
The analog values of the inputs and outputs are written or read in 16 bit data format i.e. they
must be accessed word by word.
The analog values are provided as 16 bit integer values. Depending on the operating mode,
the measured values must be converted using the following factors in order to achieve the
corresponding physical value.
Voltage [V] Current [mA] Temperature [°C]
Factor (AI): 0.00151947 0.003051758 0.1
Factor (AO): 0.000381469 0.0007629 -
Calculation: 16 bit value (hex. or dec.) * factor = measured value
Anschließbare Komponenten
7.9 PP 72/48D 2/2A PN
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 239

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
