2.5 Type plate
Type plates
The PPU type plate is located on the rear side.
Note
The contents of the individual type plate fields on the current controller may differ from those
described in this Manual (e.g. updated product status, approvals and identifications not yet
issued, etc.).

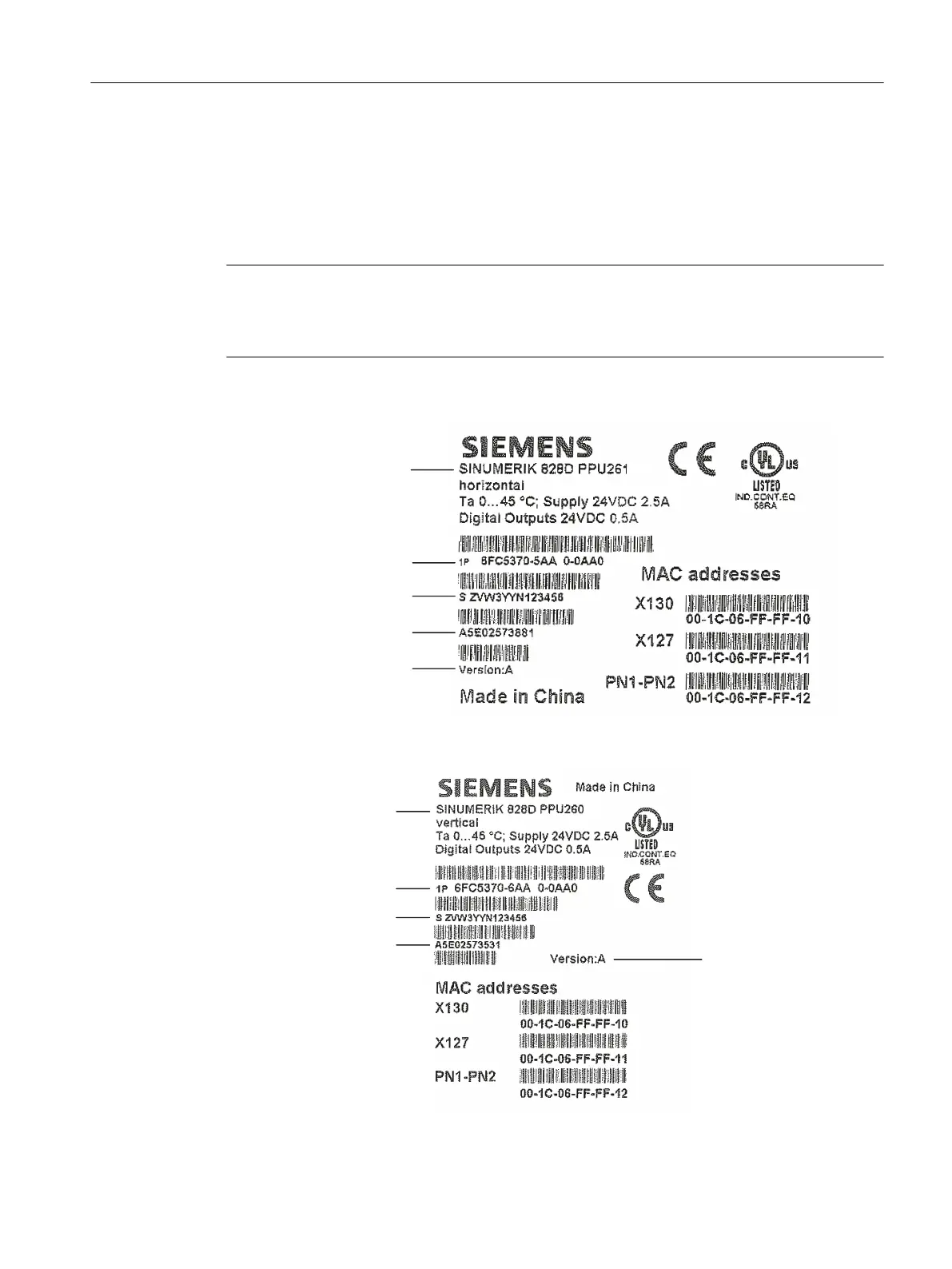

The following images display all the information required to uniquely identify a PPU.

$UWLFOHQXPEHU
6HULDOQXPEHU
,'QXPEHU
+:YHUVLRQ
&RPSRQHQWQDPH

Figure 2-3 Horizontal PPU type plate
$UWLFOHQXPEHU
6HULDOQXPEHU
,'QXPEHU
+:YHUVLRQ
&RPSRQHQWQDPH


Figure 2-4 Vertical PPU type plate
System description
2.5 Type plate
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 25

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
