7.2.3 Connecting
Connections (rear)
① Ground terminal
② USB connection for communication with the PPU, X10 NC
③ Slots for control devices (d = 16 mm)

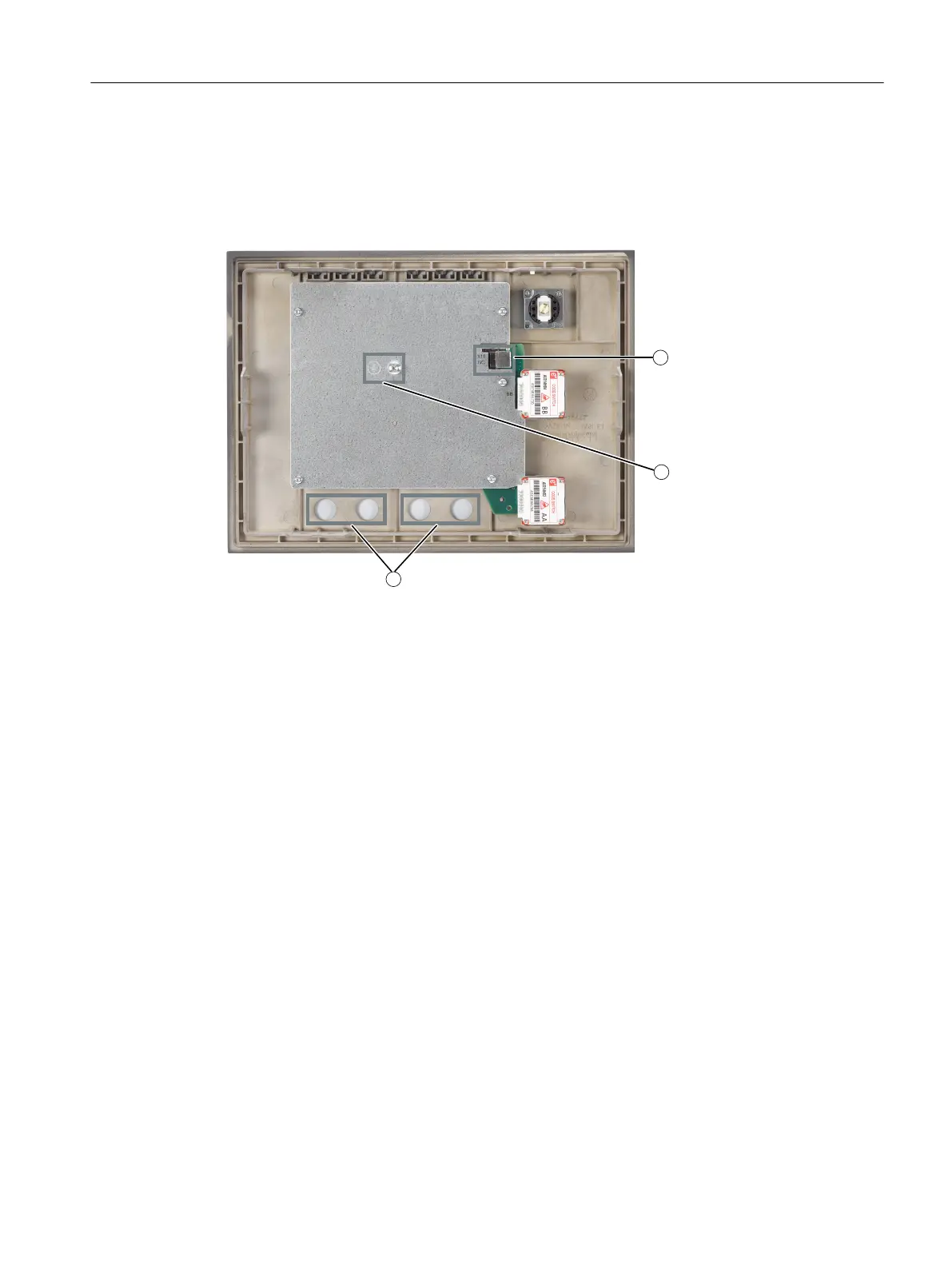

Figure 7-9 Connections at the rear
USB 2.0 interface
The machine control panel is connected to the PPU using a USB cable. The machine control
panel is also supplied with power via this USB connection. The USB cable is included in the
accessory pack of the machine control panel.
You can also connect the machine control panel via an industrial USB hub
(6AV6671-3AH00-0AX0).
Pin assignment of the USB connection
Connection designation: X10 NC
Connection type: USB socket, type B
Anschließbare Komponenten
7.2 MCP 310 USB
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 111
