9.4 SENTRON PAC3200/PAC4200
Description

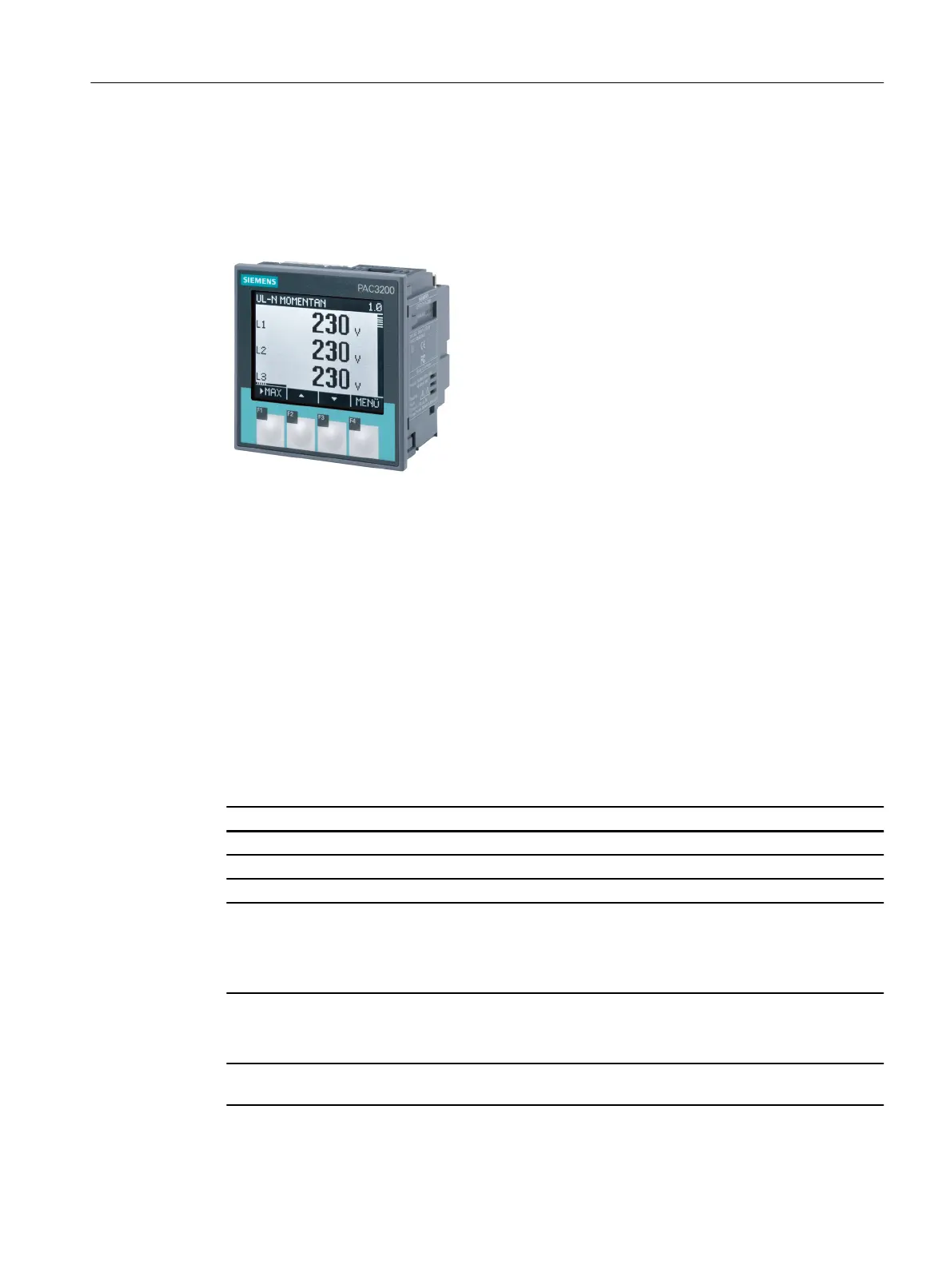

Figure 9-4 SENTRON PAC3200
The SENTRON PAC measuring devices ensure precise, reproducible and reliable
measurement of energy values for infeed, outgoing feeders or individual loads. They not only
supply comprehensive information about your electrical installation and power distribution
system, but also provide important measured values to help you assess the status of your
system and the power quality. For further processing of the measurement data, the devices
are equipped with a wide range of communication options for easy integration into higher-level
automation and power management systems. They can be used for both single-phase and
multi-phase measurements in 3- and 4-conductor power supply systems (TN, TT, IT).
For communication between the PPU and the SENTRON PAC you require the switched
Ethernet PROFINET module, article number: 7KM9300-0AE00-0AA0.
Technical data
Parameter SENTRON PAC3200 SENTRON PAC4200
Article number 7KM2112-0BA00-3AA0 7KM4212-0BA00-3AA0
Suitable for TN, TT and IT systems ✓ ✓
Continuous signal acquisition ✓ ✓
Measuring inputs for voltage
3 AC; UL-L/UL-N; CAT III
● Wide-range power supply
Max. 690 V / 400 V
95 to 240 V AC 50/60 Hz ±10 %
110 to 340 V DC ±10 %
Measuring inputs for voltage
3 AC; UL-L/UL-N; CAT III
● Low-voltage power supply
Max. 500 V / 289 V
22 to 65 V DC; ±10%
Measurement at voltage transformers for
voltages > 500 V / 690 V
✓ ✓
Spare parts and accessories
9.4 SENTRON PAC3200/PAC4200
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 269
