Name Function Status Meaning
H501 BUS_SYNC Not lit No PROFINET communication.
Lit PROFINET is synchronized (STOP state).
Flashes (0.5
Hz)
PROFINET is synchronized (RUN state).
H502 BUS_FAULT Lit PROFINET group fault.
H505 Temperature alarm (red) Lit At least one temperature limit is being exceeded.
7.5.1 Mounting
Installation
The module can be attached at a suitable position via the four mounting holes (e.g. behind the
machine control panel or in the control cabinet). The selection of the appropriate mounting
position depends on the interfaces used and the associated maximum cable lengths.
Four standard torx-slotted screws T20/M4 are used to attach the module.

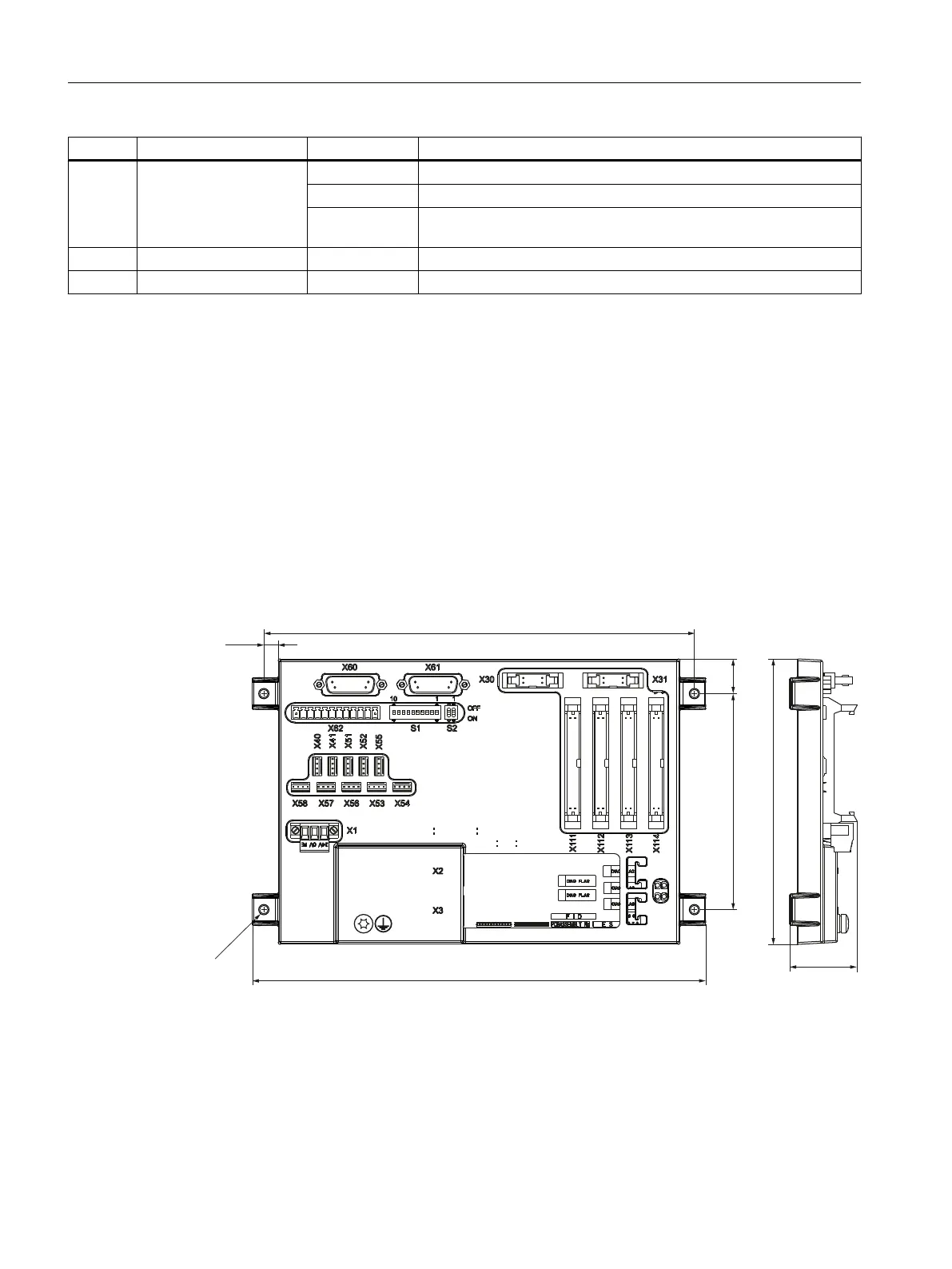

MCP Interface PN dimension drawing




[



Figure 7-28 MCP Interface PN dimension drawing
Anschließbare Komponenten
7.5 MCP Interface PN
PPU and components
156 Manual, 05/2015, 6FC5397-2DP40-3BA4

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
