7.10 NX10.3
7.10.1 Description
Properties
Using this module, you can expand the performance of an axis grouping of the
SINUMERIK 828D CNC automation system. With an NX10.3 Numeric Control Extension, the
PPU is able to control up to 8 axes.
Type plate
The NX10.3 module type plate contains the following basic information:
&RPSRQHQWQDPH
2UGHUQXPEHU
,'QXPEHU
+:YHUVLRQ
6HULDOQXPEHU

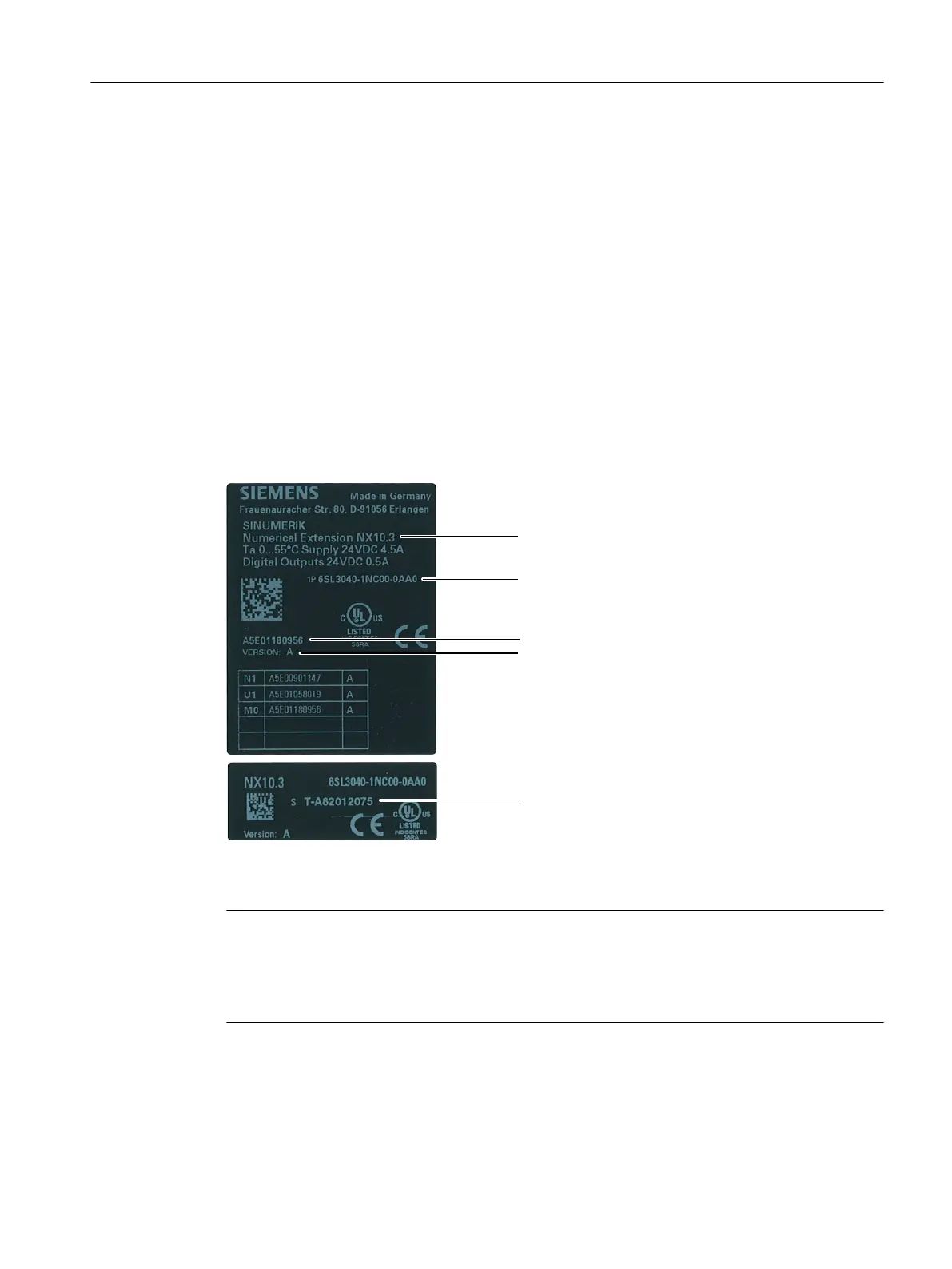

Figure 7-59 NX10.3 type plate
Note
You might need to access the information provided on the side-mounted type plate after the
equipment has been mounted. Since the type plate is located on the right-hand side of the
housing, which is the side typically used to connect to the SINAMICS S120 module, we
recommend that you make a note of the serial number of the NX10.3 prior to assembly.
Anschließbare Komponenten
7.10 NX10.3
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 245

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
