Tension jacks are also available as a spare part (see Section: "Spare parts and accessories
(Page 135)").
3UHVVXUHSRLQWV
IRUWHQVLRQMDFNV
6HDOLQJDUHD
7HQVLRQMDFNVZLWKJUXEVFUHZV
0RXQWLQJSDQHO
,QWKHVHDOLQJDUHD
5]







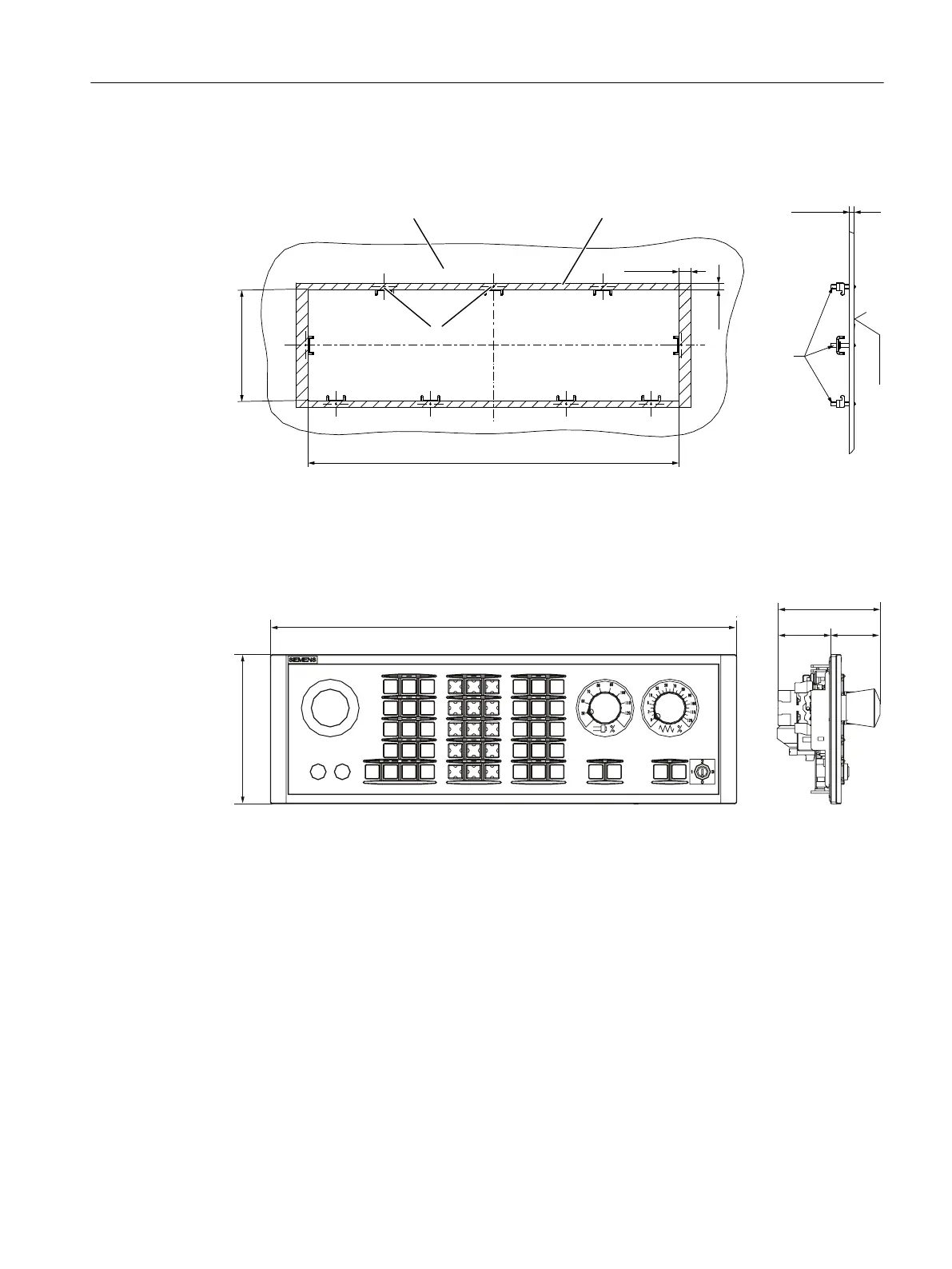

Figure 7-13 Panel cutout of MCP 483C PN
MCP 483C PN dimension drawing





Figure 7-14 MCP 483C PN dimensions
7.3.3 Connecting
7.3.3.1 Connection
Securing the cables
Two equivalent connections (Fast Ethernet) are available for establishing the PLC I/O Interface
communication network based on PROFINET.
Two cable ties are included in the scope of delivery. You use these to secure the Ethernet
cables on the cover plate at the rear of the machine control panel.
Anschließbare Komponenten
7.3 MCP 483C PN
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 125

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
