7.7.3 Connecting
Connection diagram overview
A connection kit that must be ordered separately is required for connection of the mini HHU.
This connection kit contains a metal flange socket made for installation in the control housing
on the machine and a terminating connector for overriding the Emergency Stop circuit when
the mini HHU is not connected.
3OXJFRQQHFWRU
)ODQJHVRFNHW
&DEOHOHQJWK P
SLQVFUHZWHUPLQDO
SLQ'X%R[VRFNHW
SLQ'X%R[VRFNHW
SLQ'X%R[VRFNHW
SROH
WHUPLQDOEORFN;
1RWDVVLJQHG
&RQWUROKRXVLQJ
)UHHO\ZLUHG
0LQL++8
&RQQHFWLQJFDEOHV
;
;
;
;
338
0&3[[[31

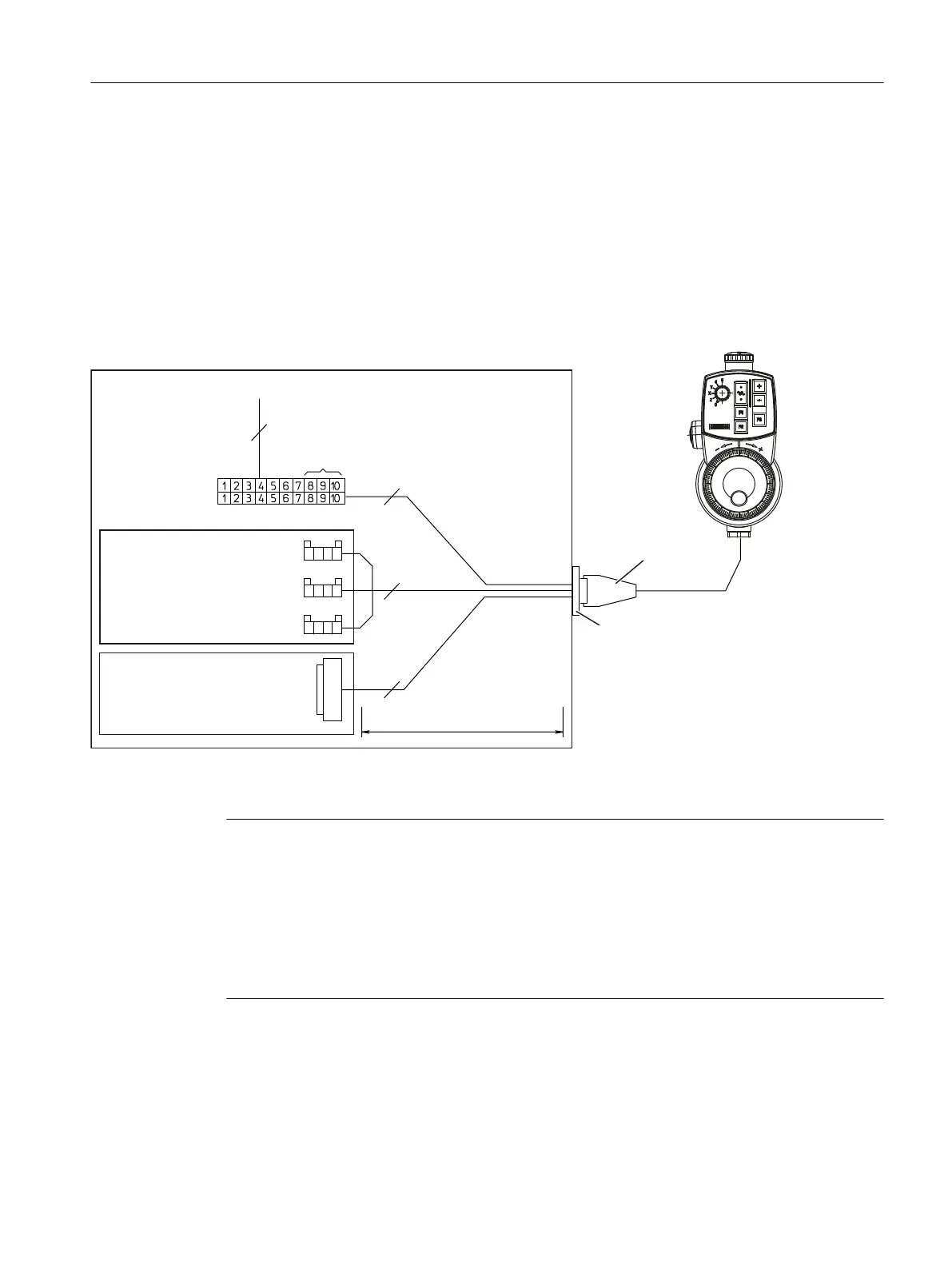

Figure 7-43 Connection using a prefabricated connection kit
Note
Mini HHU on the MCP Interface PN
You can also connect the mini HHU to the MCP Interface PN module:
The selection switch at X51
The function keys at X52 and X55
The handwheel at X60 / X62
Note that the SINUMERIK 828D software can process up to three handwheels.
Anschließbare Komponenten
7.7 Mini handheld unit
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 185
