Connection of the flange socket
Procedure:
1. Use the flange-mounted socket to connect the mini HHU to the PLC via the handwheel
interface. The signals are sent to the NC in parallel. There is no need for an additional
distributor.
2ULQJ
9LEUDWLRQSURWHFWLRQ

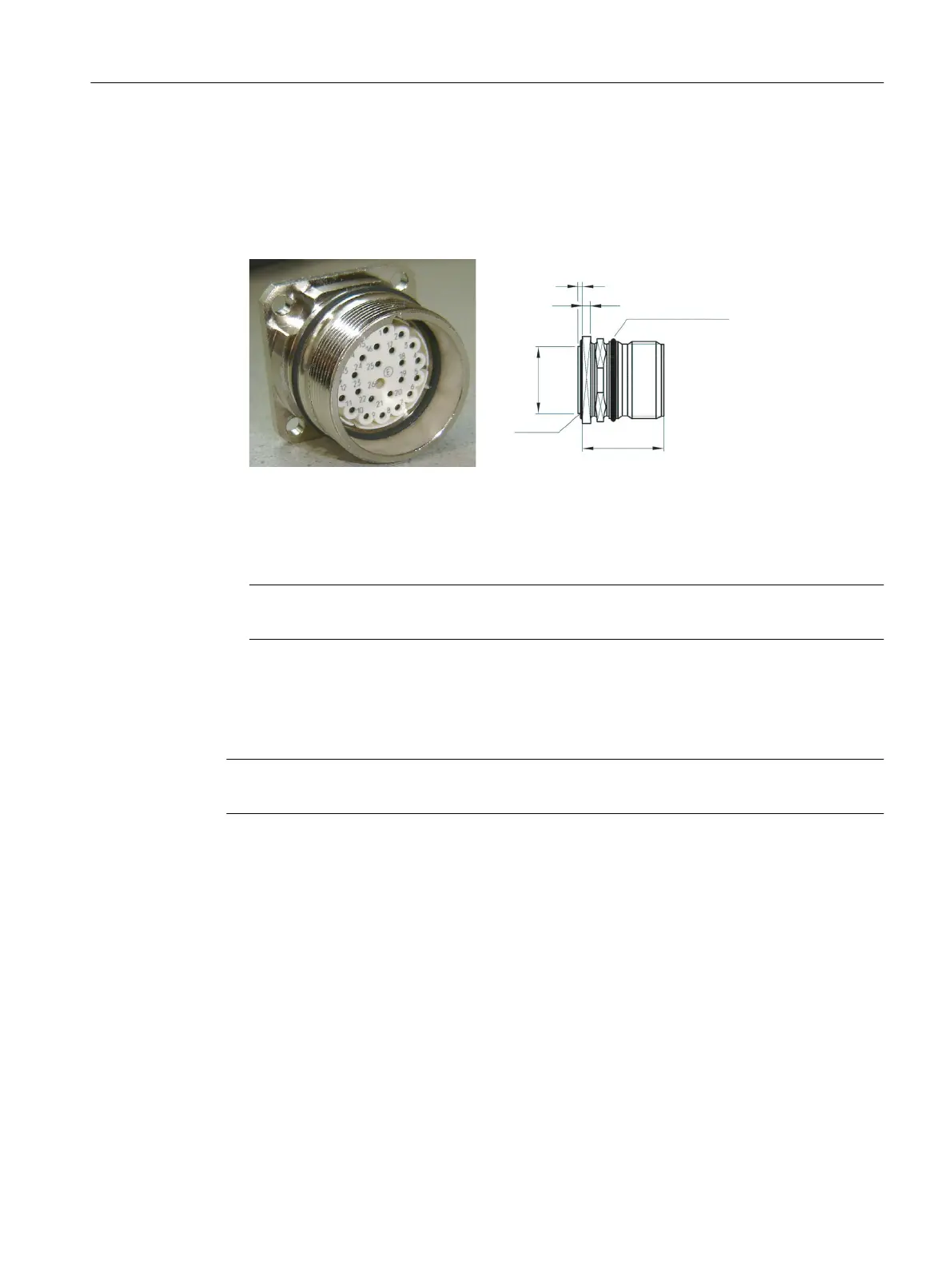

Figure 7-45 Flange socket
2. Insert the connector for the mini HHU connection cable in the detent lugs / guideways of
the flange socket.
3. Tighten the screw cap.
Note
If the connector is connected incorrectly, the pins may be damaged!
7.7.4 Parameterization
Note
The mini HHU can only be operated with a Siemens machine control panel of the PN type.
If a mini HHU is connected, the functional assignment listed in the table below is valid for
customer keys KT1 to KT9. On machine control panels MCP 310C PN and MCP 483C PN,
the customer keys are assigned to input bytes IB122 and IB123. On the MC Interface PN
module, the customer keys are assigned to input bytes IB124 and IB125.
Anschließbare Komponenten
7.7 Mini handheld unit
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 187
