6.5.2 Example: Connecting a BERO inductive proximity switch
Supplementary conditions
The following rules must be observed when connecting a proximity switch:
● In principle, proximity switches can be connected to any input.
● Because both the DI input terminals and the parameterizable DI/DO terminals are isolated,
the ground of the supply must be connected to the associated M terminal.
● When a connection is made to one of the parameterizable terminals, the positive pole of
the power supply must also be connected to the associated P connection terminal.
● Each group can be supplied with its own supply that is independent of the device supply.
In the simplest case, everything can be fed from a single supply. Nevertheless, all M and
P terminals must be connected.
9'&
([WSRZHUVXSSO\
,QSXWFRQWDFW
,QSXWFRQWDFW
,QSXWFRQWDFW
,QSXWFRQWDFW
,QSXW%(52
,QSXWFRQWDFW
,QSXW%(52
,QSXWIUHH
2XWSXW
2XWSXW
9'&
9'&
0
3
;
;
',
',
',
',
',
',
0
3
','2
','2
0
','2
','2
0
3
0
0
3
%1
%.
%8
%1
%.
%8

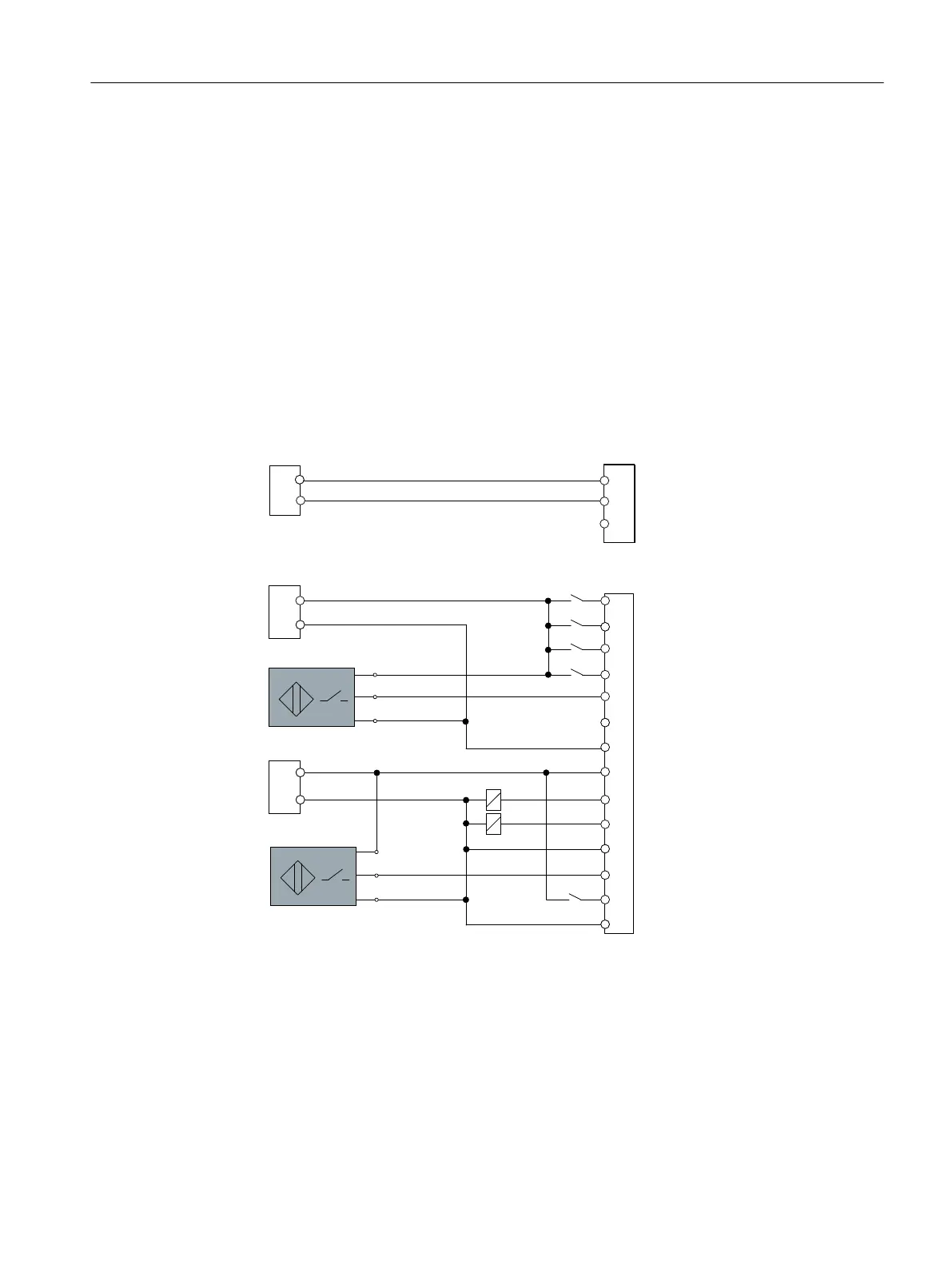

BK (black) Signal
BU (blue) - supply
BN (brown) + supply
Figure 6-4 Connection to X122
