7.5 MCP Interface PN
Description
In the SINUMERIK solution line control family, communication with the operator panels is via
PROFINET (Industrial Ethernet).
The MCP Interface PN module enables customer-specific machine control panels to be
connected to a machine tool. Communication is handled via PROFINET RT or Industrial
Ethernet.
You can connect the following operator controls to the interface:
● 80 single keys
● 64 LEDs
● Handwheel
● 2 override switches
The following inputs/outputs are also available:
● 9 digital inputs (5 V)
● 6 digital inputs (24 V)
● 15 digital inputs (24 V / each 0.15 A)

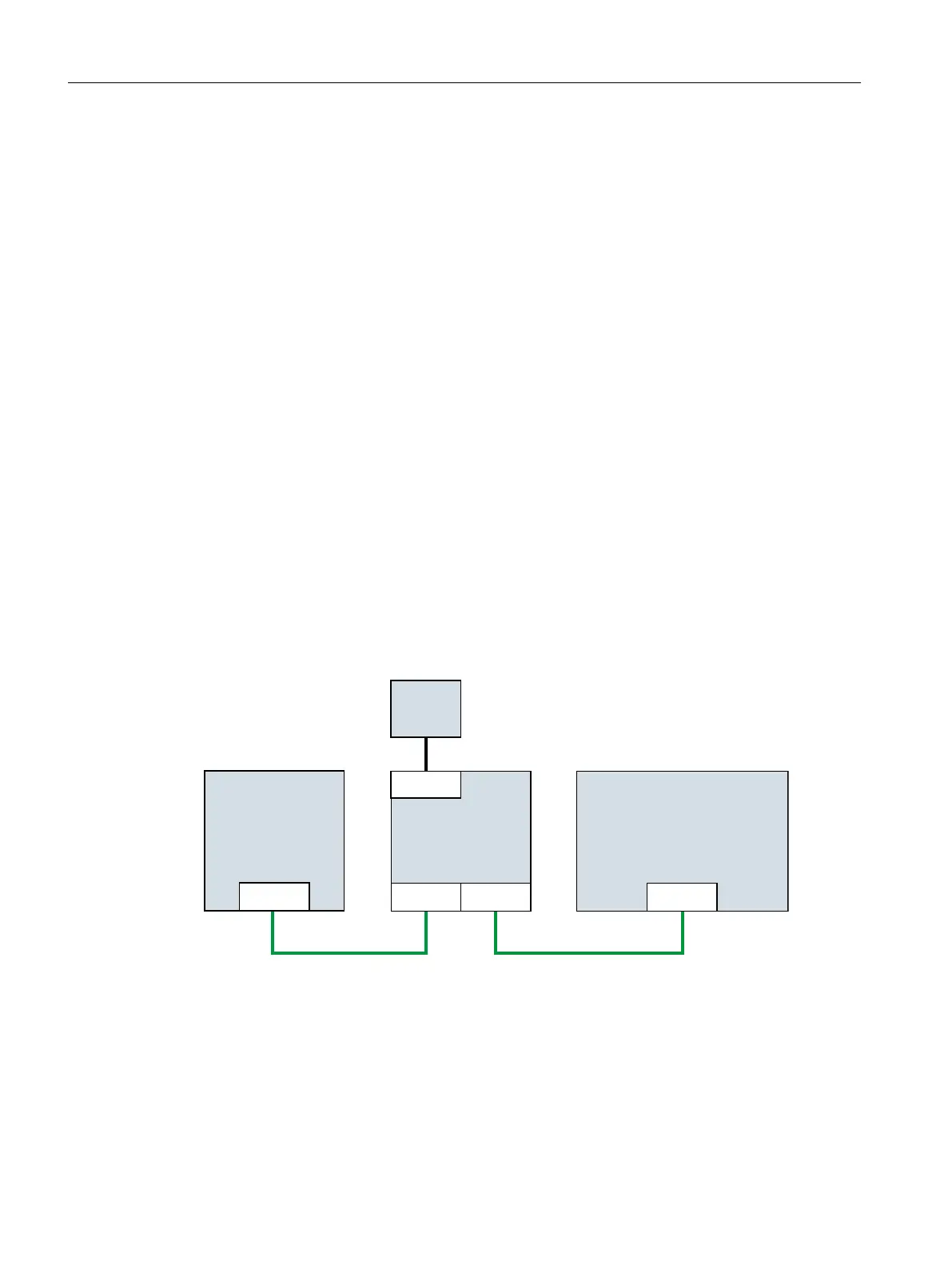

System configuration
PROFINET peripherals
e.g. PP 72/48D PN
9'&SRZHUVXSSO\
MCP Interface PN
PPU
31
31
;;
;
PROFINET
PROFINET
Anschließbare Komponenten
7.5 MCP Interface PN
PPU and components
154 Manual, 05/2015, 6FC5397-2DP40-3BA4

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
