2.3 PPU versions 26x.3 and 28x.3

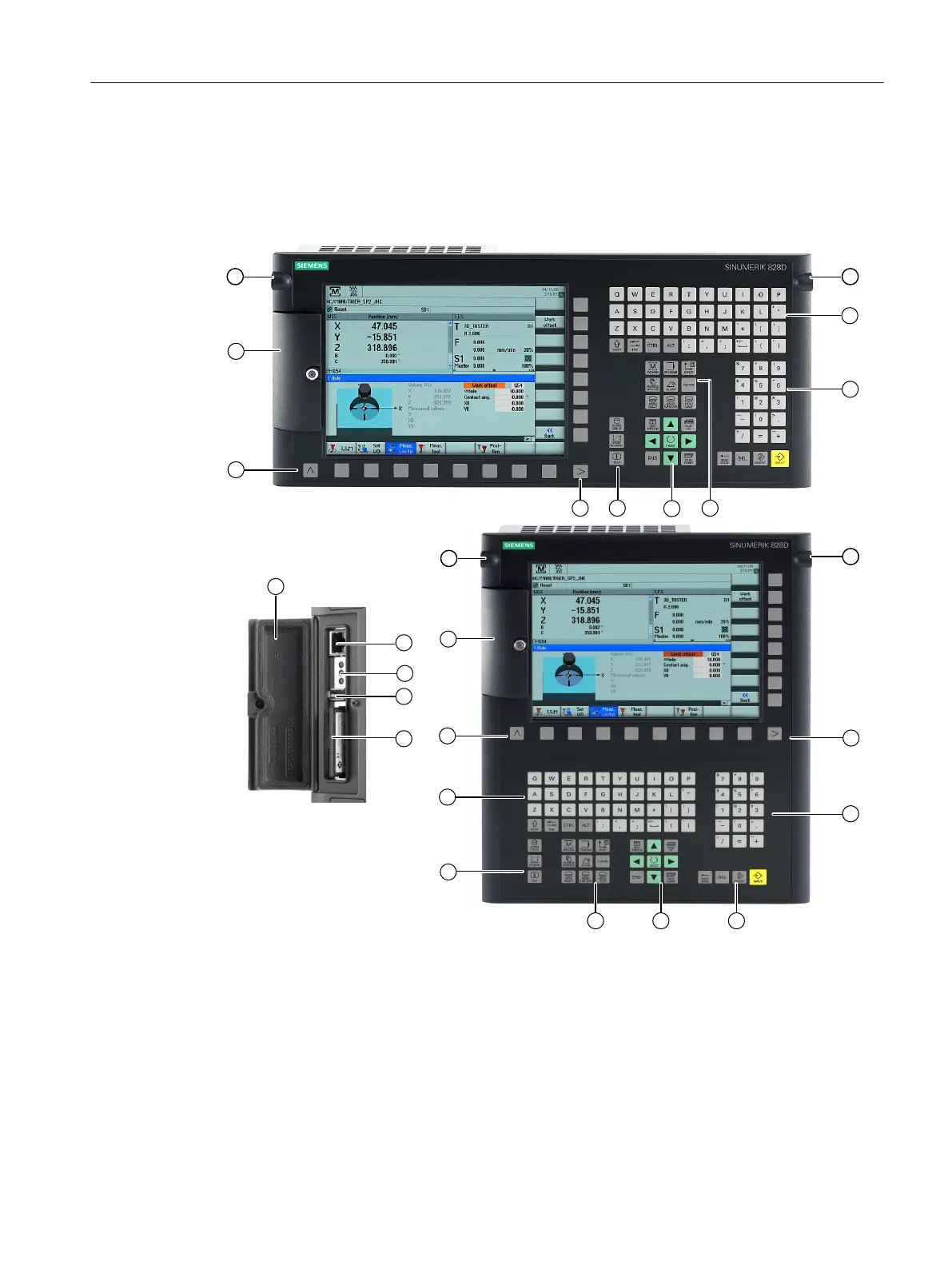

Front of the PPU versions 26x.3 and 28x.3























① ⑩ Front cover ⑧ Menu forward key
② Menu back key ⑨ 3/8" threads for additional components
③ Alphabetic key group ⑪ X127, Ethernet (service socket)
④ Control key group ⑫ Status LED: RDY, NC, CF
⑤ Hotkey group ⑬ X125, USB interface
⑥ Cursor key group ⑭ Slot for CompactFlash card with user
data
⑦ Numerical key group
System description
2.3 PPU versions 26x.3 and 28x.3
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 21

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
