Rear side of the PPU 24x.3 BASIC
① ② X122, X132 Digital inputs/outputs, drive
③ ④ X242, X252 Digital inputs/outputs for NC; controller of the analog spindle (X252)
⑤ X143 Handwheels
⑥ M, T2, T1, T0 Measuring sockets
⑦ X1 Power supply
⑧ X135 USB interface: For service purposes only
⑨ X130 Ethernet LAN
⑩ PN PLC I/O Interface
⑪ SYNC, FAULT Status LED
⑫ X100, X101, X102 DRIVE-CLiQ interfaces
⑬ X140 Serial interface RS232

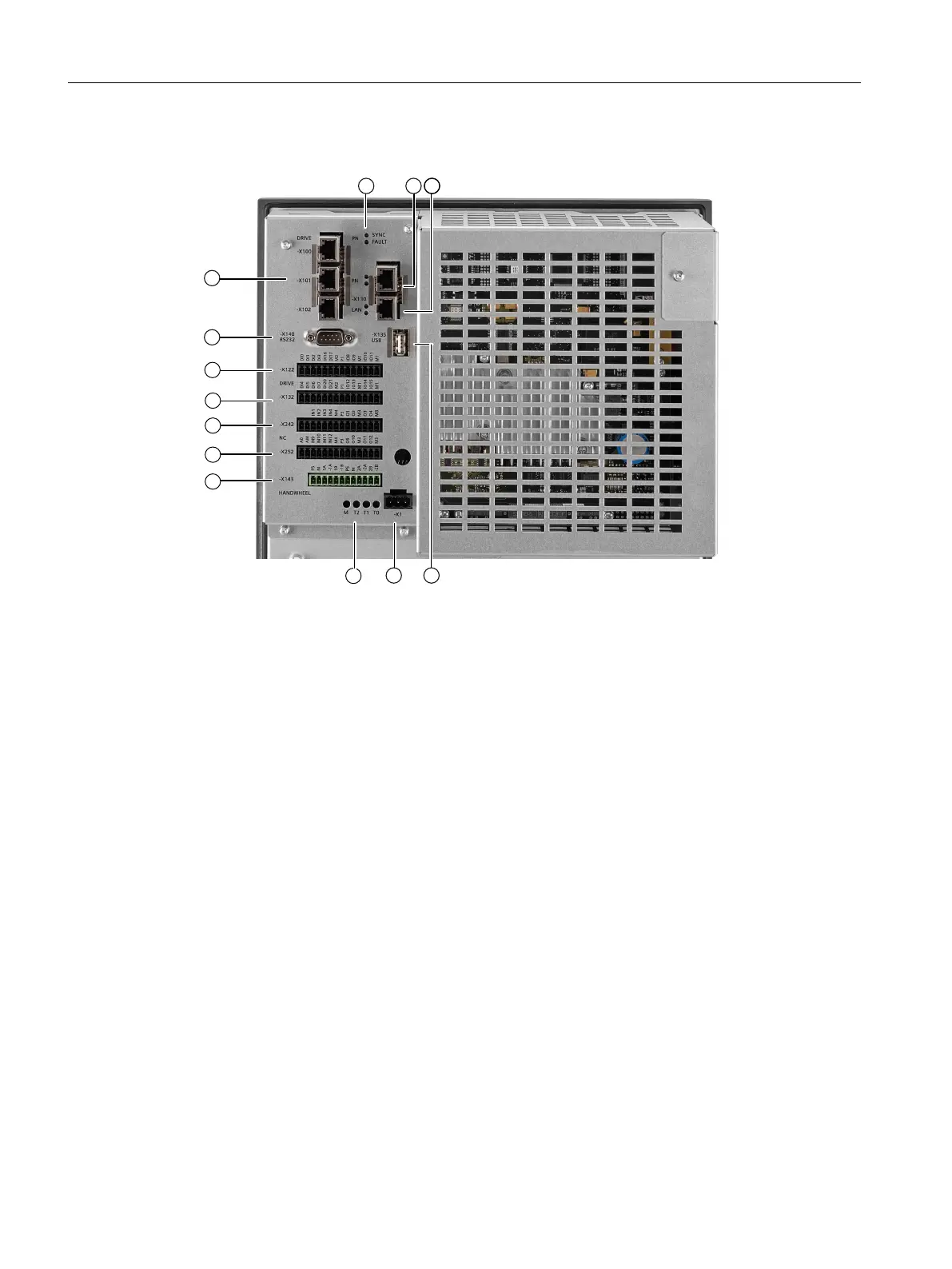

Figure 2-1 Interfaces at the rear
