7.7 Mini handheld unit
Description
The mini handheld unit (Mini HHU) is a small easy-to-handle unit for setting up and operating
simple machines in the JobShop area or similar applications. Special attention has been paid
in the design to ergonomics and logical layout of the control elements.
Since coarse, medium and fine infeed can easily be graduated, the operator control concept
offers fast, increment-precise positioning. The signals are sent in parallel to the CNC control.
● The mini HHU is connected to the control with a connection kit.
● The mini HHU can be fixed on metal surfaces by means of the integrated magnetic clamp.
A holder is available as an option.
● Key labeling can be customized using slide-in labels.

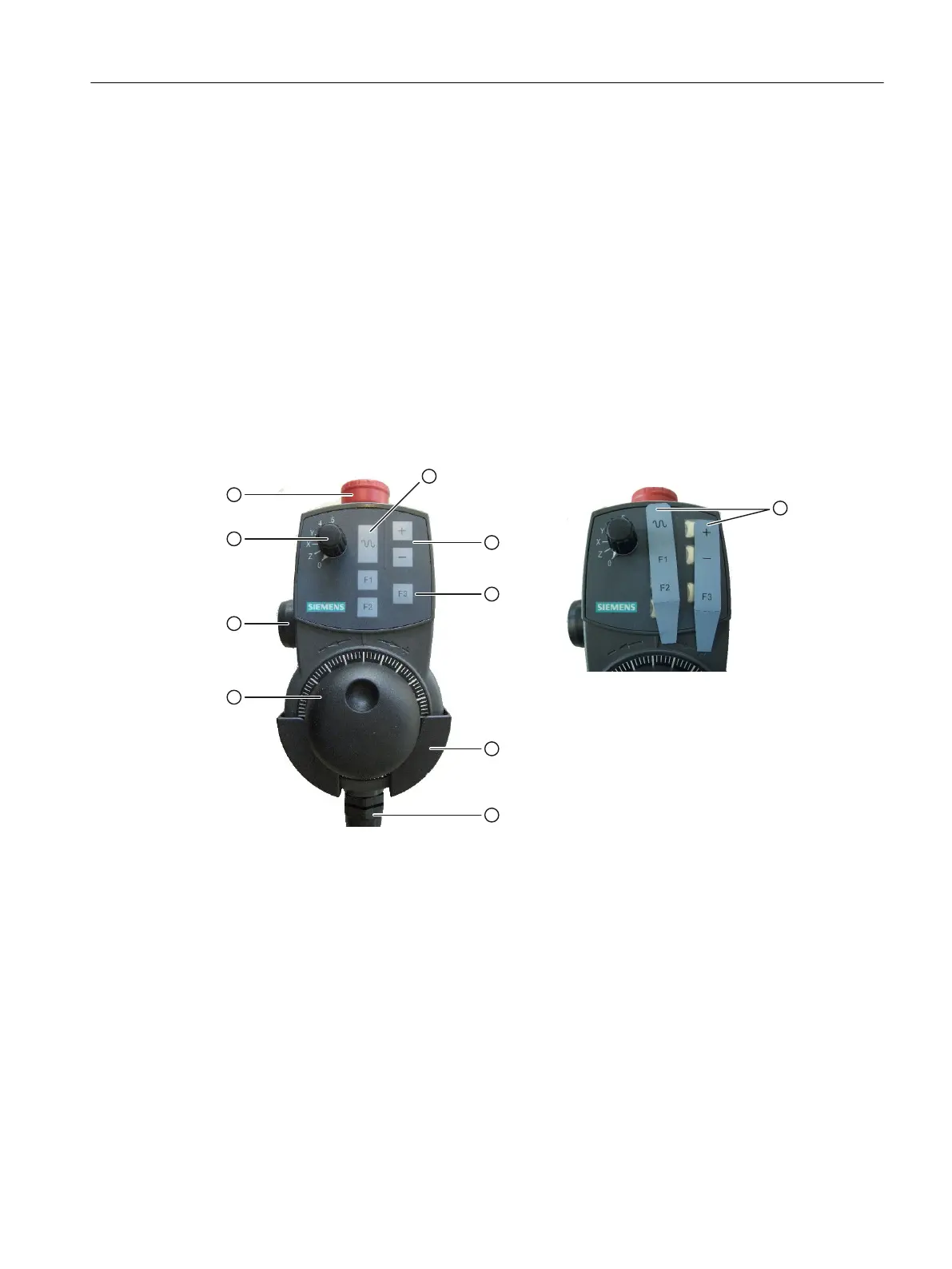

① Emergency Stop button, 2-channel
② Axis selector switch for 5 axes and neutral position
③ Enabling button, 2-channel, 3-stage
④ Handwheel
⑤ Rapid traverse key for high-speed travel with traversing keys or handwheel
⑥ Traversing key direction + / direction -
⑦ F1, F2, F3 function keys for customer-specific applications (freely assignable)
⑧ Holder (optional)
⑨ Connecting cable
⑩ Slide-in labels
Figure 7-37 Control elements of the mini handheld unit
Anschließbare Komponenten
7.7 Mini handheld unit
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 179
