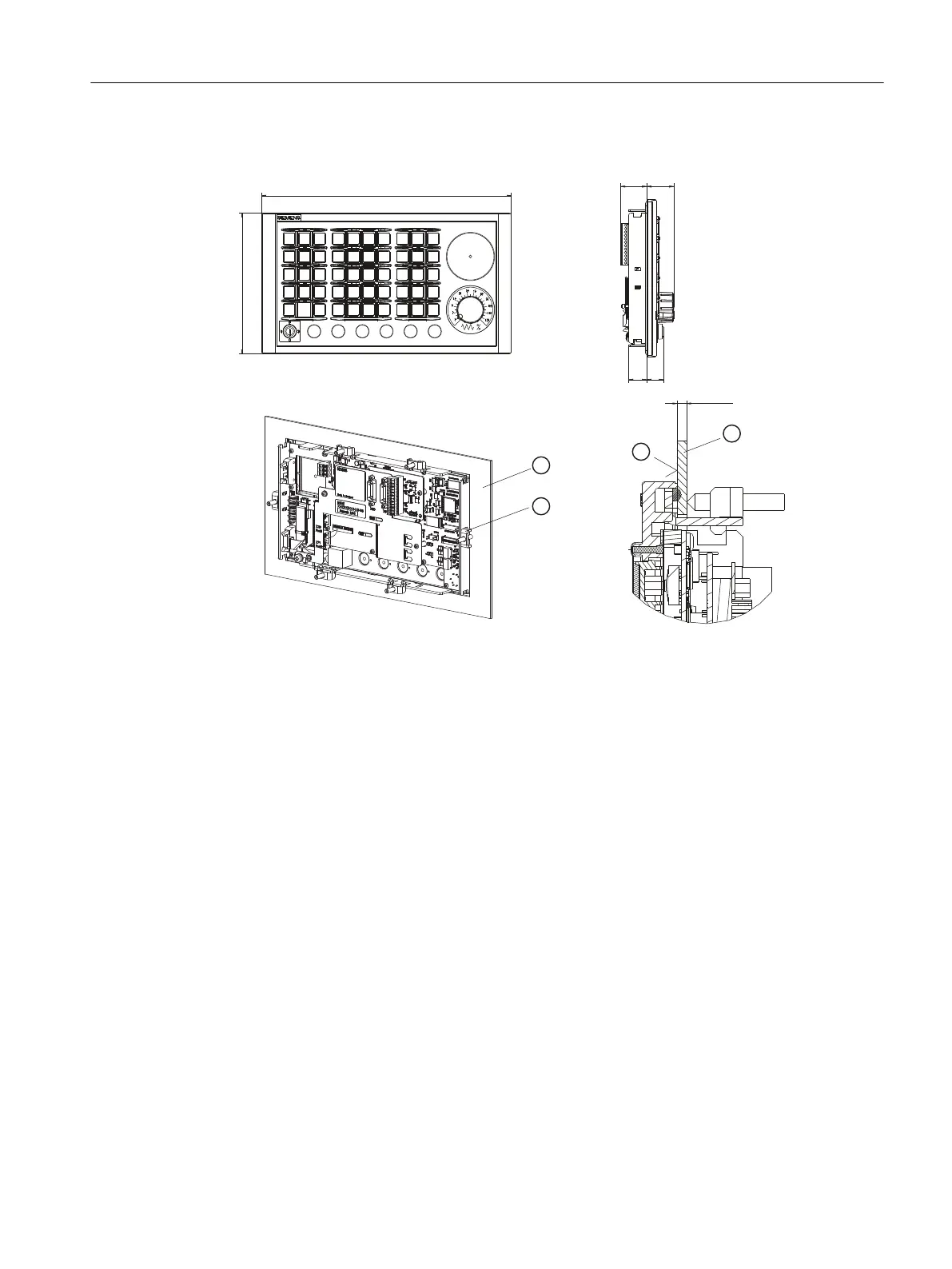

Dimension drawing

5]
PP







① In the sealing area
② Mounting frame
③ Tension jack (6 parts) - tightening torque 0.5 Nm
Figure 7-22 MCP 310C PN dimensions
7.4.3 Connecting
Securing the cables
Two equivalent connections (Fast Ethernet) are available for establishing the PLC I/O Interface
communication network based on PROFINET.
Two cable ties are included in the scope of delivery. You use these to secure the Ethernet
cables on the cover plate at the rear of the machine control panel.
Anschließbare Komponenten
7.4 MCP 310C PN
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 143

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
