Tension jacks
The machine control panel is attached using six tension jacks (tightening torque, 0.5 Nm).
3UHVVXUHSRLQWV
IRUWHQVLRQMDFNV
6HDOLQJDUHD
7HQVLRQMDFNVZLWKJUXEVFUHZV
0RXQWLQJSDQHO
,QWKHVHDOLQJDUHD

5]






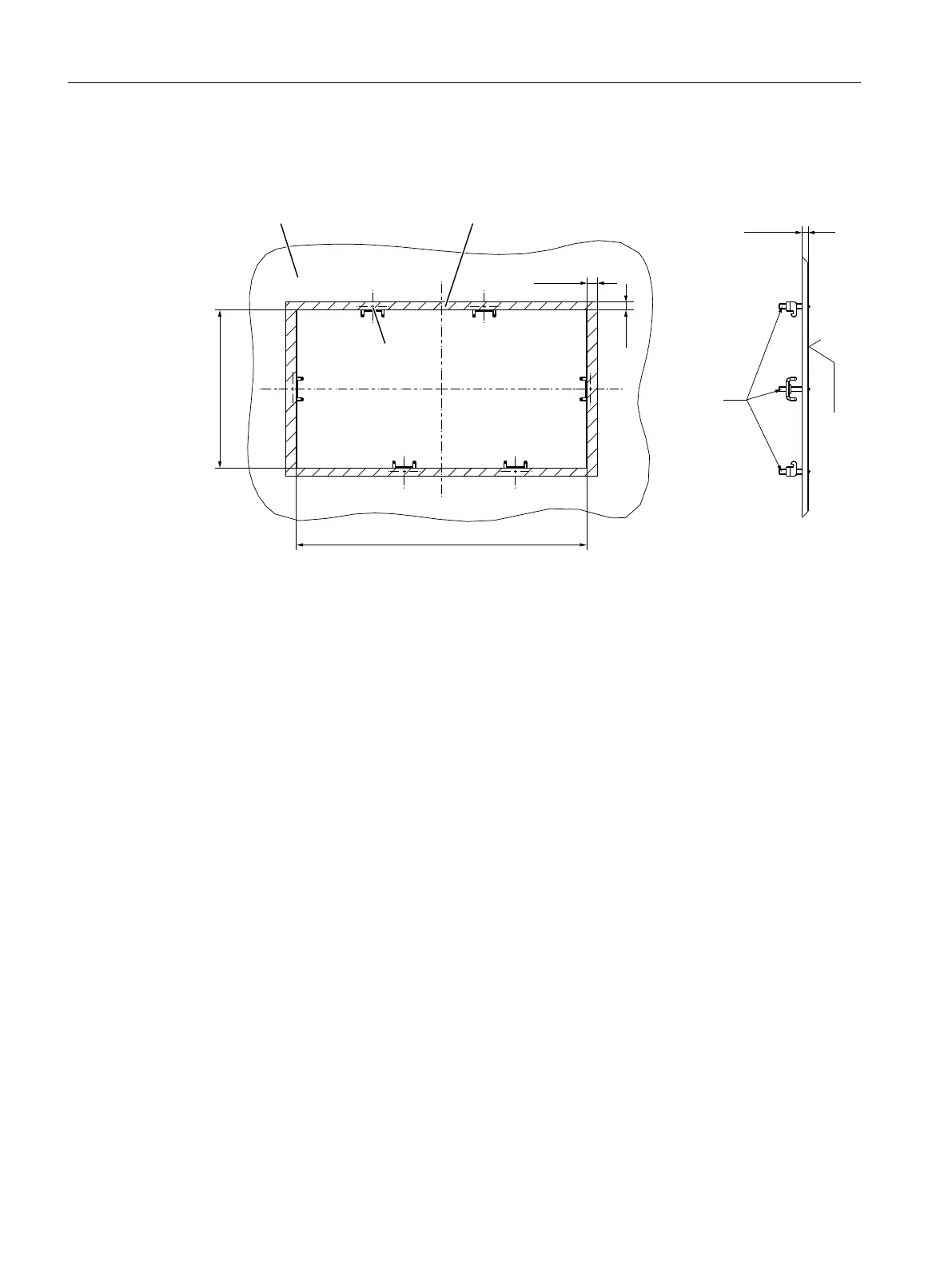

Figure 7-21 Panel cut-out for the machine control panel MCP 310C PN
