Siemens SINUMERIK 828D Manual

Printed slide-in labels are included in the accessory pack for labeling key groups for operation
in milling machines and lathes. You can individually label the customer keys, see Section Spare
parts and accessories (Page 118). Blank slide-in labels are included in the accessory pack.
Emergency Stop circuit









EMERGENCY STOP
Press the Emergency Stop button in the following situations:
● When persons are at risk.
● When there is a risk of the machine or workpiece being damaged.
As a rule, when operating the Emergency Stop button, all drives are brought to a standstill with
max. braking torque. Turn the Emergency Stop button counter-clockwise to release it.
7.2.2 Mounting
Installation and mounting

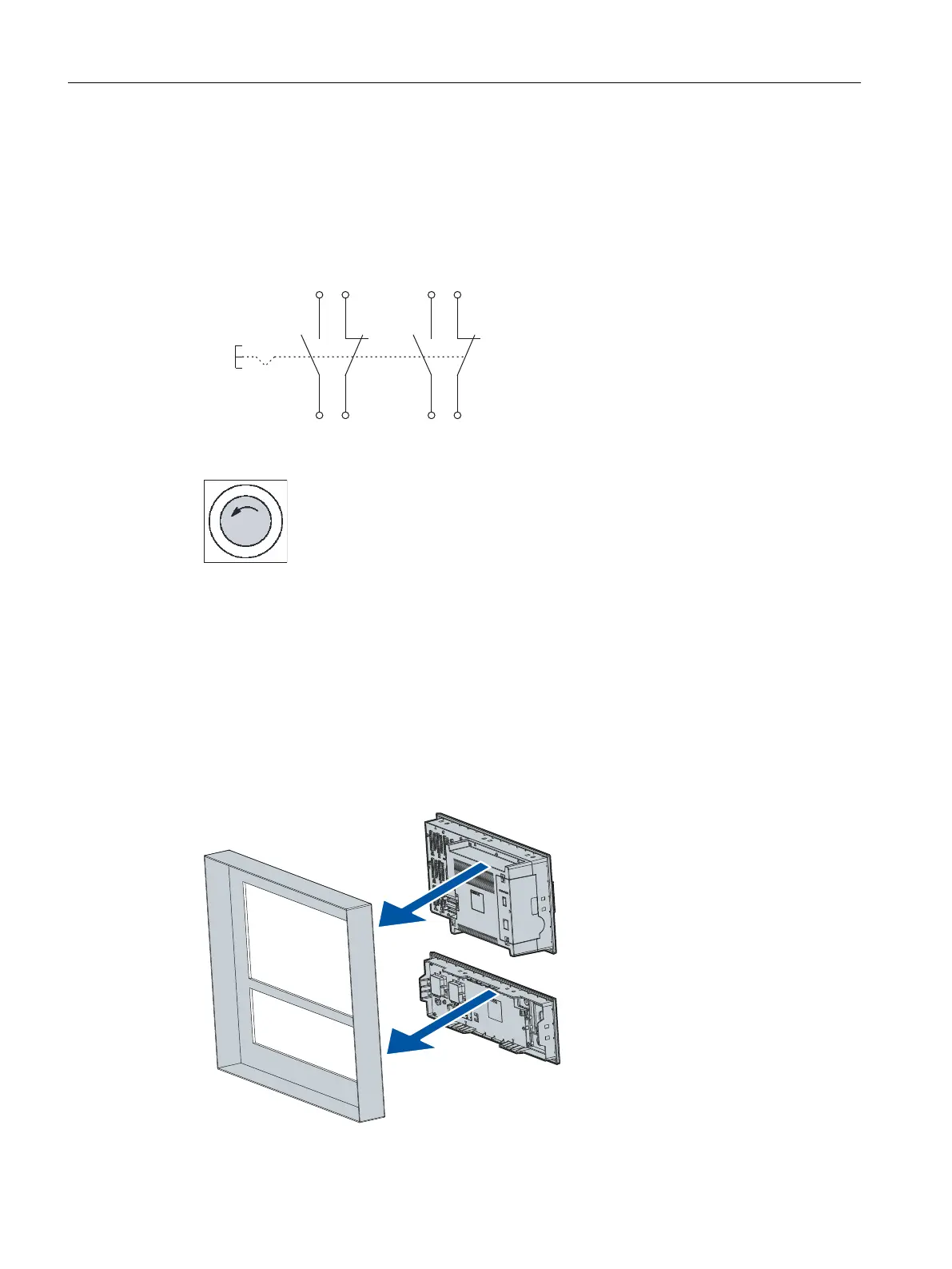

The recommended machine control panel mounting is shown in the following diagram:
Anschließbare Komponenten
7.2 MCP 310 USB
PPU and components
108 Manual, 05/2015, 6FC5397-2DP40-3BA4

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
