The machine control panel is mounted from the front in a rectangular cut-out and attached
using tension jacks (0.5 Nm tightening torque). The tension jacks are included in the scope of
delivery. Tension jacks are also available as a spare part, see Section Spare parts and
accessories (Page 118).






0&386%

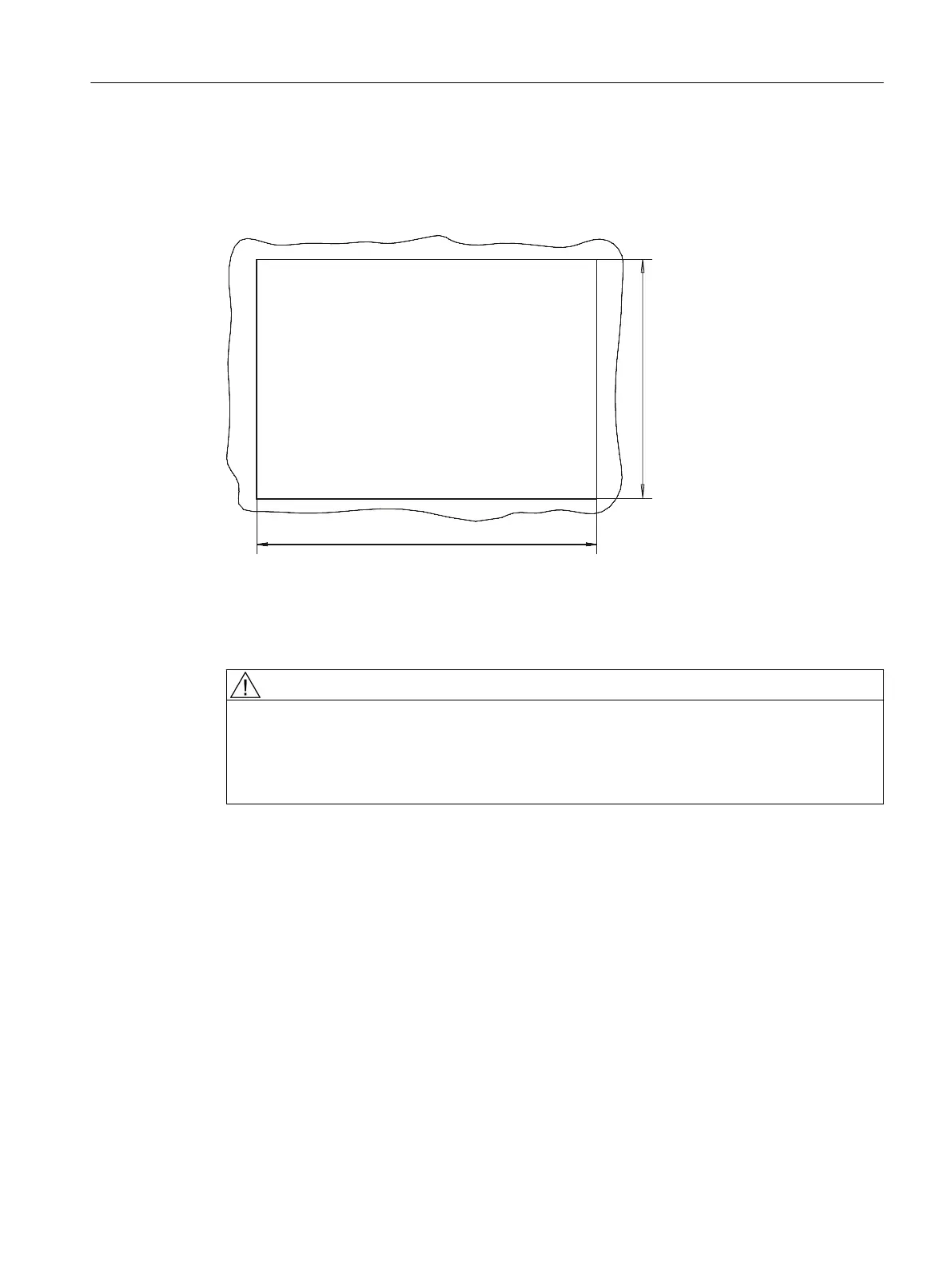

Figure 7-7 Mounting panel cutout
Dimension drawing
WARNING
Danger to life from hazardous voltage
It is possible to reach into installation holes for control devices (shown in gray in the drawing).
Make sure that no live parts can be touched behind the holes within a clearance of at least
85 mm (hatched area in the drawing).
Anschließbare Komponenten
7.2 MCP 310 USB
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 109

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
