4.1 Mounting positions
Permitted mounting positions
The PPU is secured with special tensioning elements and tensioners in the operator panel
housing. The tensioners are included in the scope of delivery.
Note
Installing the PPU
The maximum permissible tightening torque for the tensioning screws is 0.5 Nm and this value
must not be exceeded.

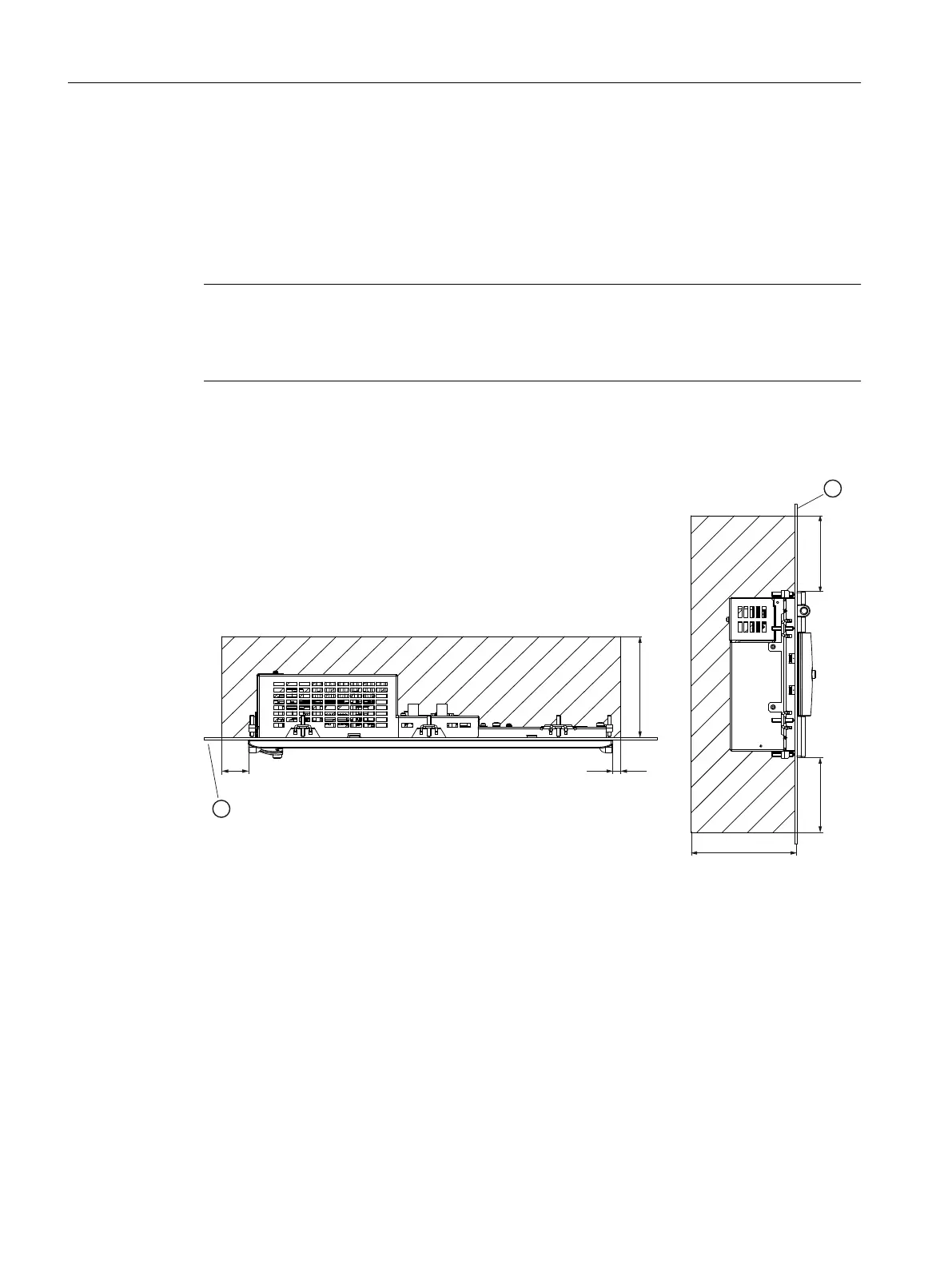

Installation of the horizontal PPU variant







① Mounting frame
Figure 4-1 Clearance for ventilation and cables in the horizontal PPU
Installing
4.1 Mounting positions
PPU and components
44 Manual, 05/2015, 6FC5397-2DP40-3BA4

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
