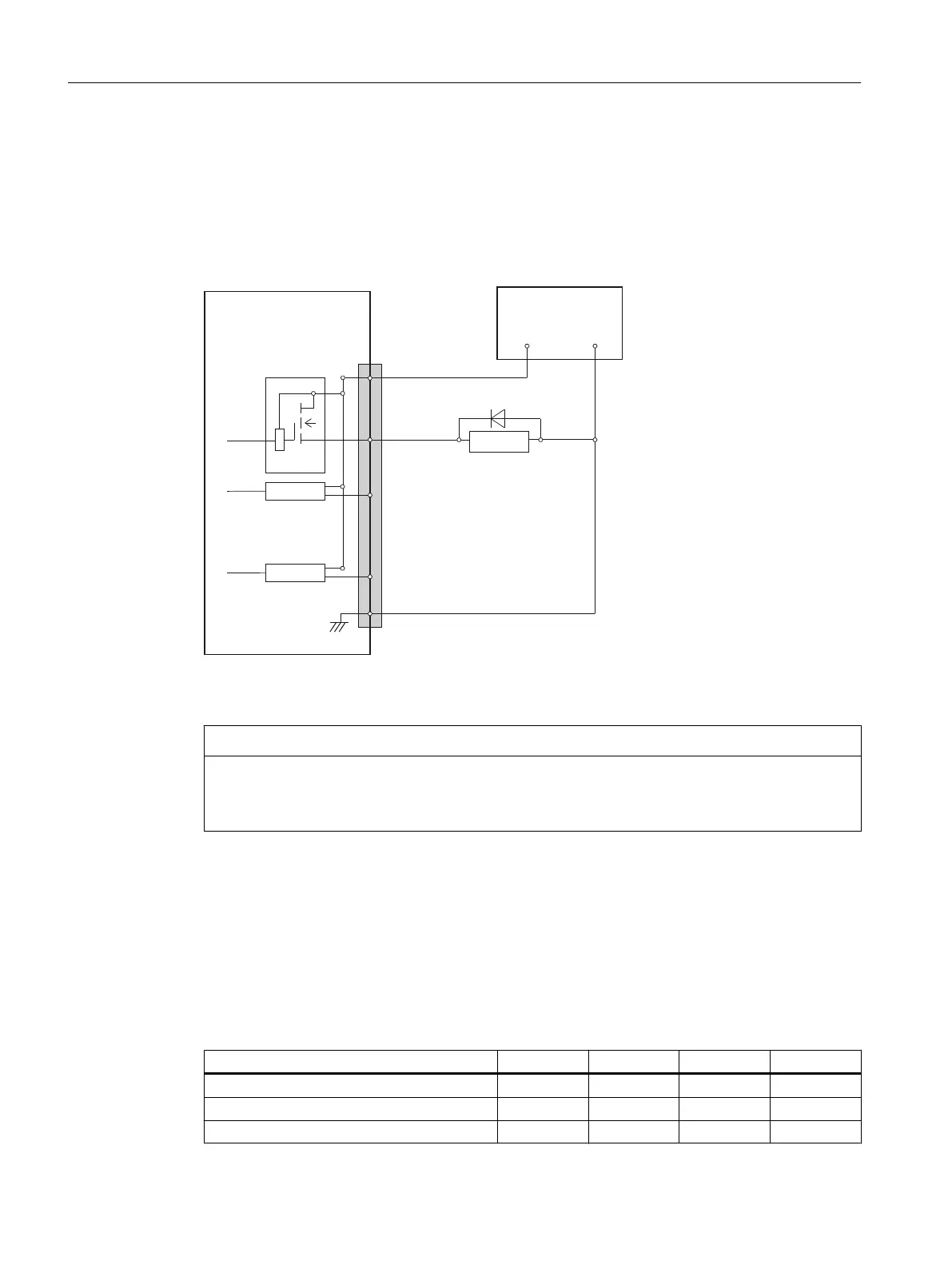

7.8.3.5 Specification of the digital outputs
Terminal assignment for the digital outputs
The following figure shows an example of the terminal assignment for the digital outputs on
connector X111. Connectors X222 and X333 are assigned analogously.
([WSRZHUVXSSO\
9'&VWDELOL]HG
;;;
3LQQXPEHU
'ULYHUV
'ULYHUV
'ULYHUV
5HOD\V
9
9

'2&20[
:
:
:
:




1 (M)
0
Figure 7-51 Terminal assignment for the digital outputs
NOTICE
Protection against short circuit
A max. current of I
out
= 0.25 A at X111, X222, X333 where the demand factor is 100%: Pin 2
must not be exceeded.
Characteristics:
No galvanic isolation.
Protection against: Short-circuit, overtemperature, and loss of ground.
Automatic disconnection in case of undervoltage.
Technical data:
Table 7-76 Electrical specification of the digital outputs
Digital outputs min. Typical max. Nominal
High-level voltage (U
H
) V
CC
- 3 V
1)
V
CC
24 V
Output current I
OUT
-- -- 250 mA
2)
--
Voltage with low level (U
L
) -- -- -- Output open
Anschließbare Komponenten
7.8 PP 72/48D PN
PPU and components
206 Manual, 05/2015, 6FC5397-2DP40-3BA4
