Siemens SINUMERIK 828D Manual

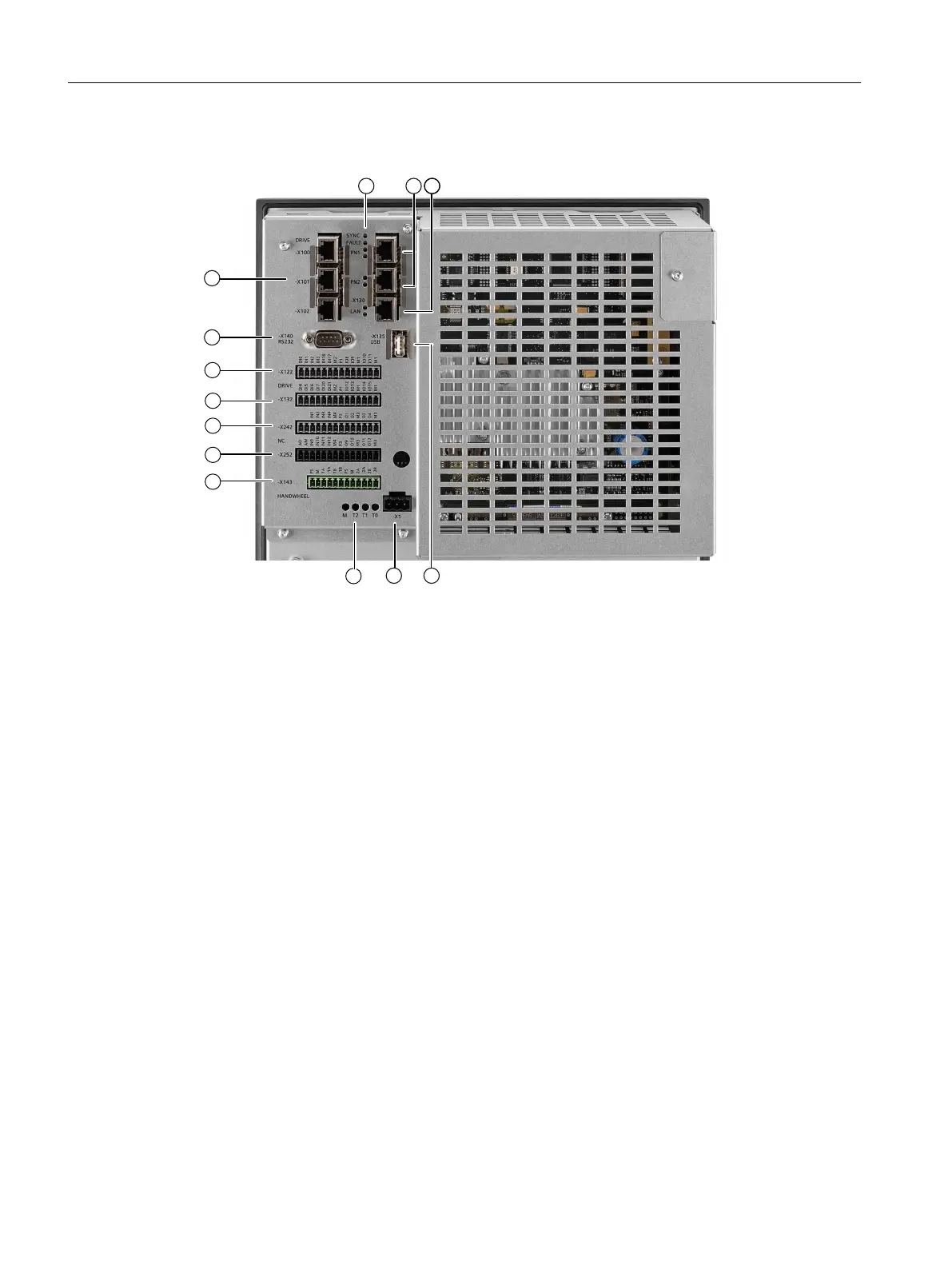

Rear of the PPU versions 26x.3 and 28x.3













① ② X122, X132 Digital inputs/outputs, drive
③ ④ X242, X252 Digital inputs/outputs for NC; controller of the analog spindle (X252)
⑤ X143 Handwheels
⑥ M, T2, T1, T0 Measuring sockets
⑦ X1 Power supply
⑧ X135 USB interface: For service purposes only
⑨ X130 Ethernet LAN
⑩ PN 1, PN 2 PLC I/O Interface
⑪ SYNC, FAULT Status LED
⑫ X100, X101, X102 DRIVE-CLiQ interfaces
⑬ X140 Serial interface RS232
Figure 2-2 Interfaces at the rear of the PPU
System description
2.3 PPU versions 26x.3 and 28x.3
PPU and components
22 Manual, 05/2015, 6FC5397-2DP40-3BA4

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
