● Adapter plate
To install the metal flange socket in the location for plastic flange sockets, an adapter plate
is available.

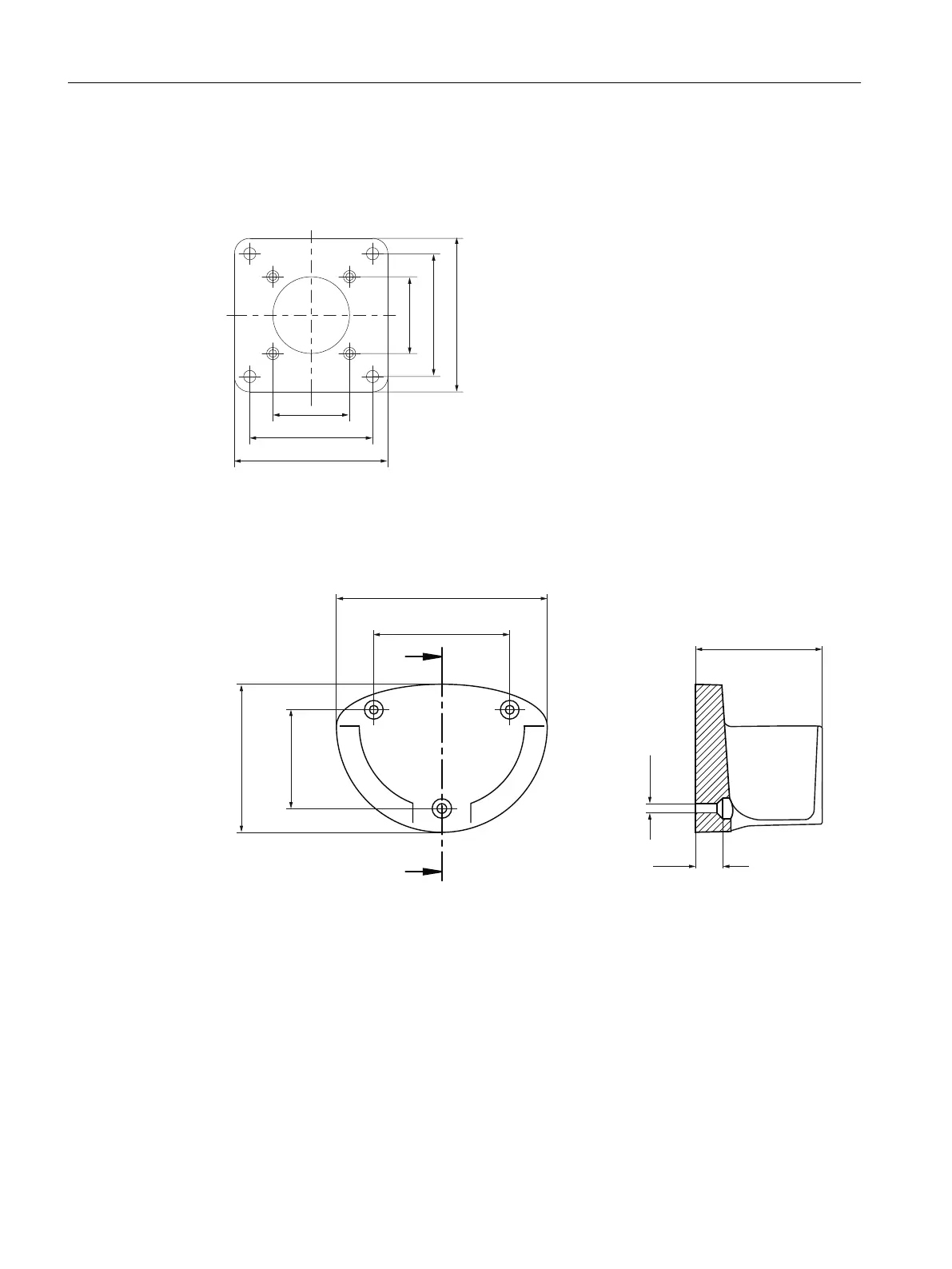

Figure 7-41 Dimension drawing of the adapter plate
● Holder
The mini HHU can be stored in a screw-on holder; this enables safe storage even on non-
magnetic surfaces. The holder is secured with three M4 screws.
Figure 7-42 Dimension drawing of the holder
● Slide-in labels
You can replace the slide-in labels. To do this, you must release the six Torx screws at the
rear of the housing. The housing can now be taken apart. You can now withdraw the slide-
in labels out of the guide on the front panel and replace them.
Make sure that no connecting cables are pinched or crushed when reassembling.
Anschließbare Komponenten
7.7 Mini handheld unit
PPU and components
184 Manual, 05/2015, 6FC5397-2DP40-3BA4
