Additional options
For the mini HHU, the following accessories can optionally be used:
● Angled socket
An angled socket is available as an option, which permits the cable outlet direction to be
rotated through 90°.
Note
The angled socket can only be used in conjunction with the non-assembled connection kit.
2ULQJ
[0[
ഋs
s
s





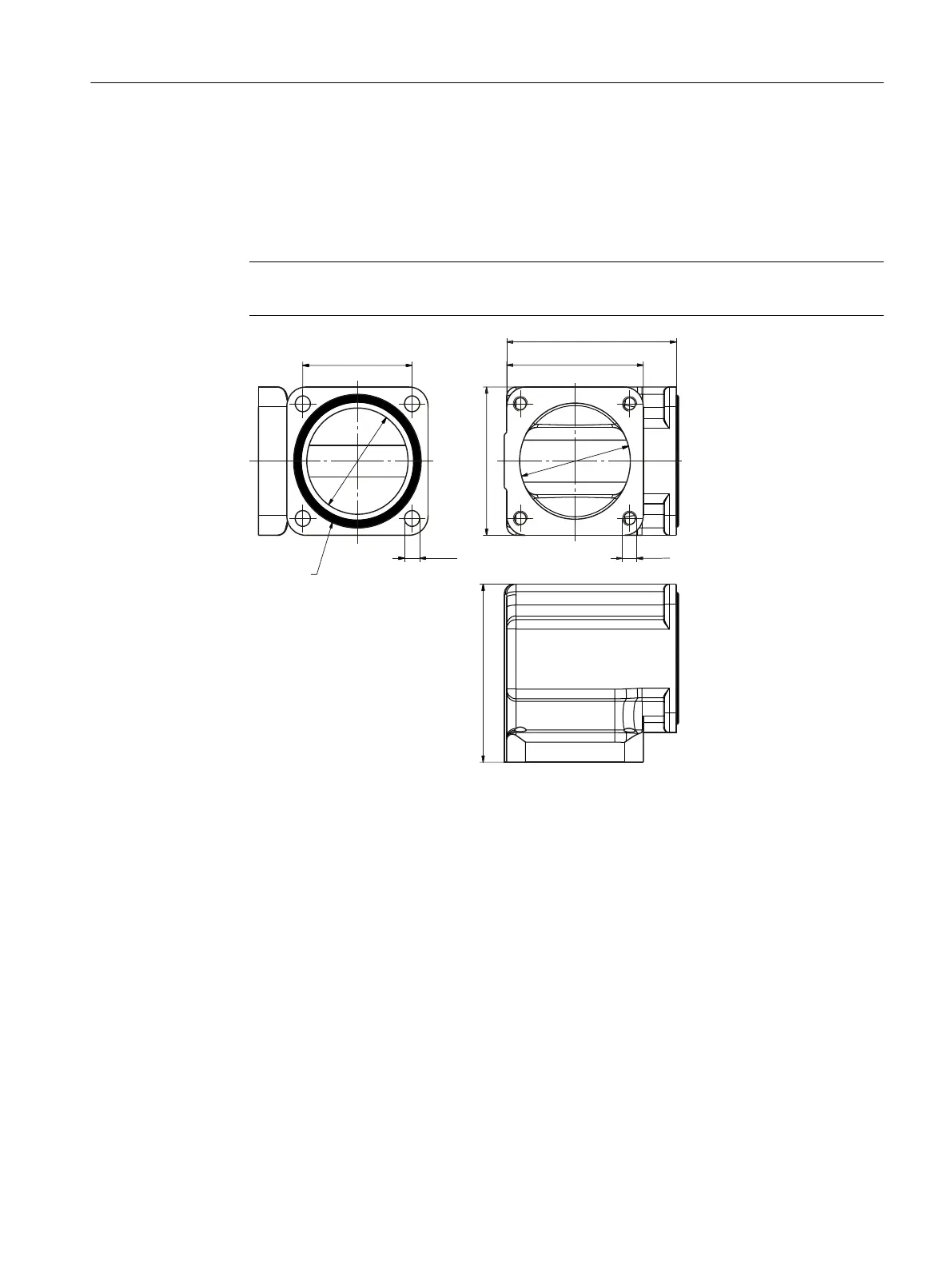

Figure 7-40 Dimension drawing of angled socket
Anschließbare Komponenten
7.7 Mini handheld unit
PPU and components
Manual, 05/2015, 6FC5397-2DP40-3BA4 183

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
