Maximum cable length: 0.8 m

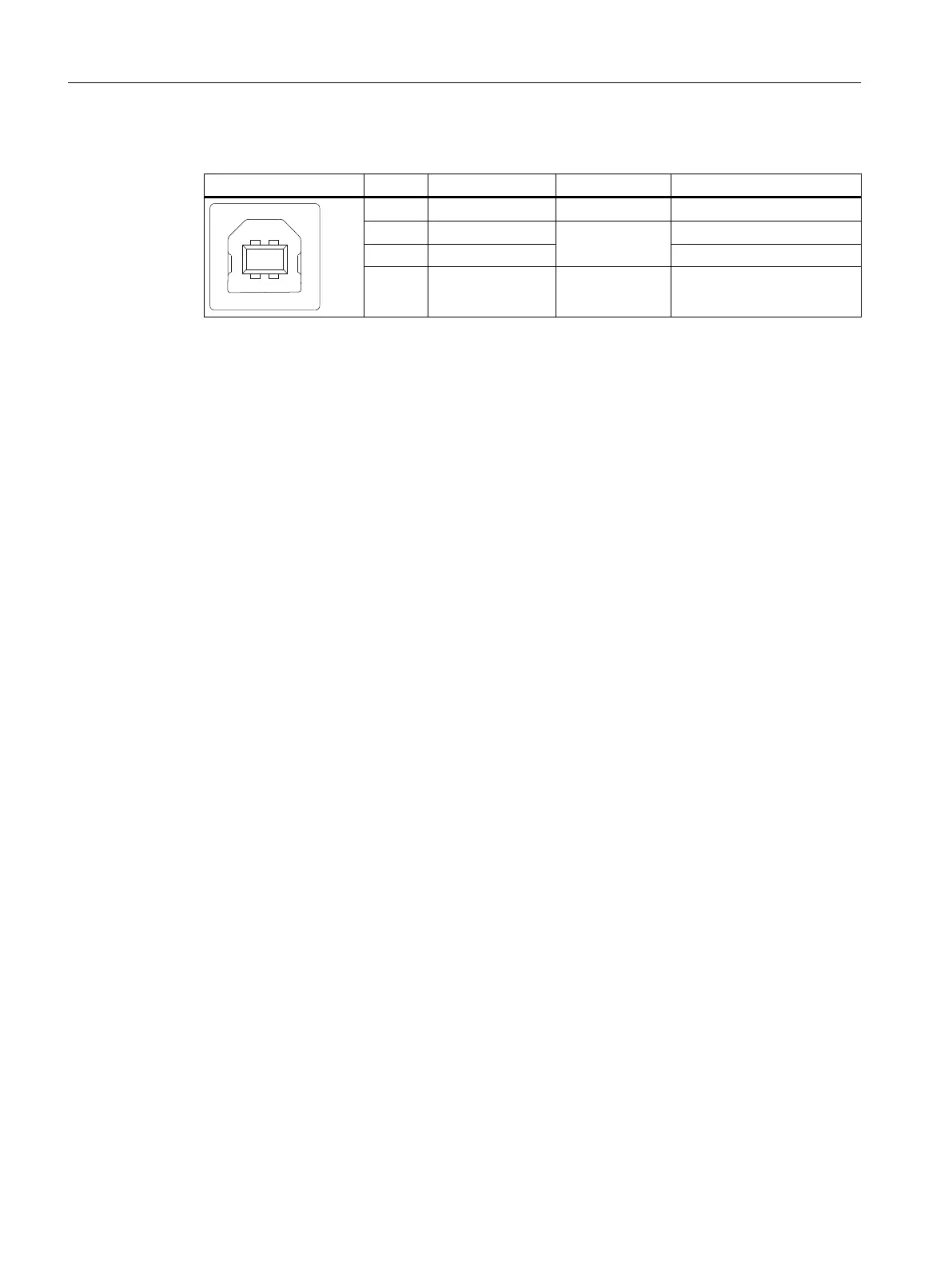

Type B socket Pin Signal name Signal type Meaning



1 P5V V + 5 V
2 Data-
B
Data -
3 Data+ Data +
4 GND V Ground
Connections and switch settings of the override switch
Connection designation: AA, BB
Connector type: 7-pin COMBICON connector
Encoding: Gray code
Anschließbare Komponenten
7.2 MCP 310 USB
PPU and components
112 Manual, 05/2015, 6FC5397-2DP40-3BA4

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
