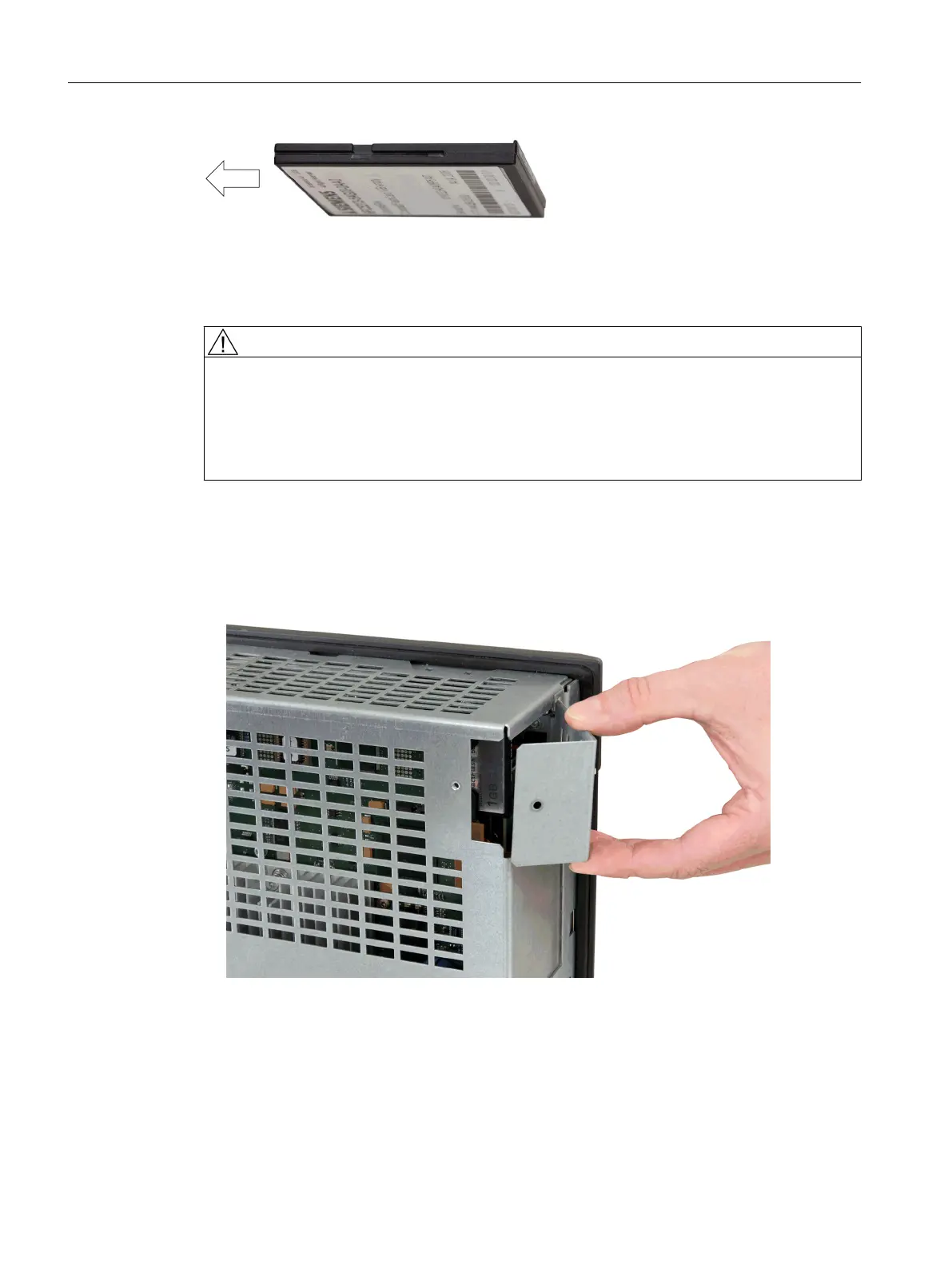

Figure 2-7 Mounting position
Replacing the system CompactFlash card
CAUTION
Electrostatic Device (ESD)
Before you touch a CompactFlash card, discharge yourself at the cabinet or at the ground
terminal.
The CompactFlash cards may only be inserted or removed when the control unit is
disconnected from the power supply.
Procedure:
1. Switch off the power supply.
2. Loosen the screw .
3. Swing the metal cover to the side and remove.
System description
2.8 CompactFlash Cards
PPU and components
32 Manual, 05/2015, 6FC5397-2DP40-3BA4
