[ein-ausgabebgr-c-io-10-080904-oz, 1, en_GB]

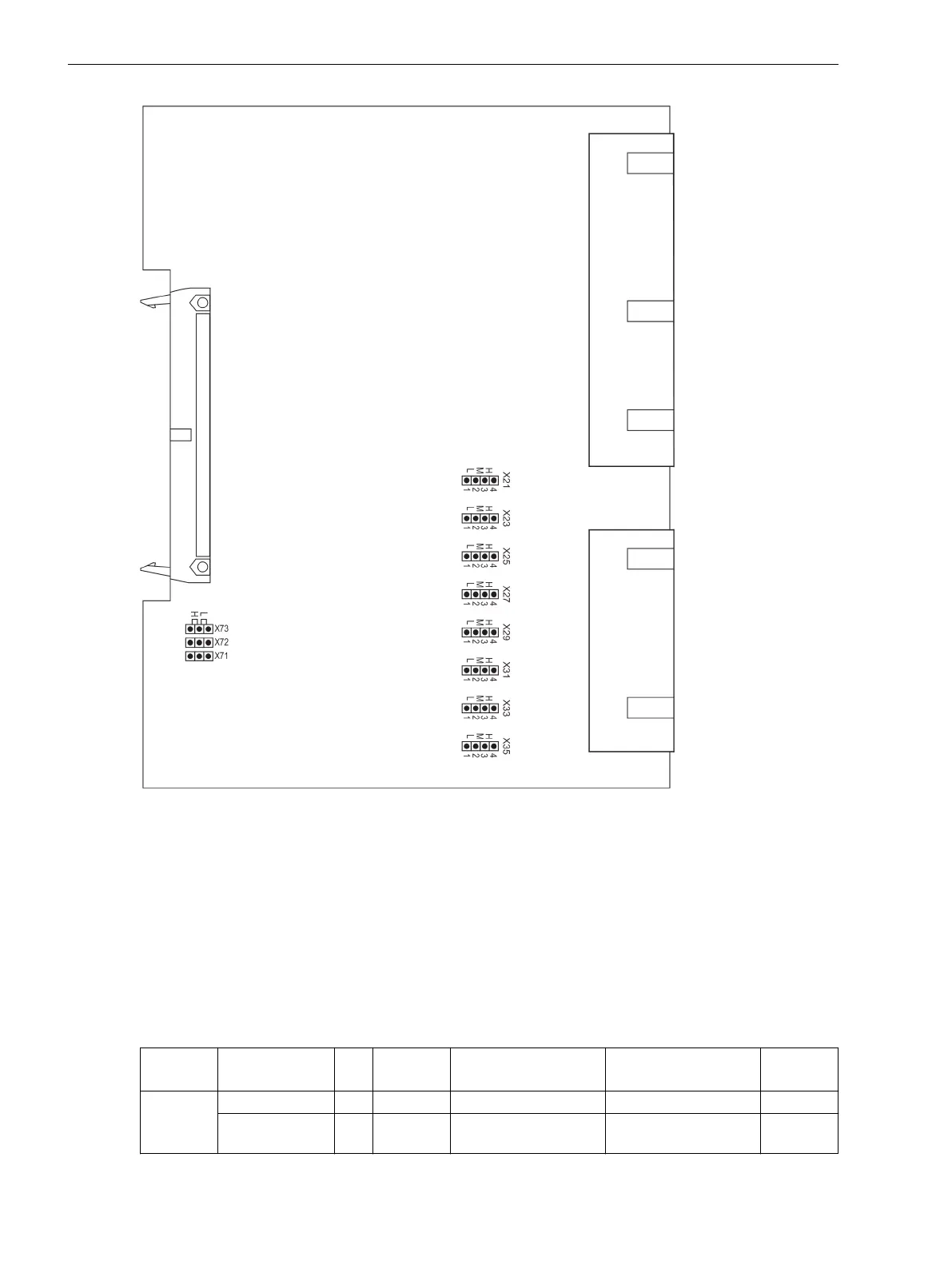

Figure 3-10
Input/output board C-I/O-10 release 7UT6x.../EE or higher, with representation of jumper
settings required for checking configuration settings
Some of the output contacts can be changed from NO (normally open) operation to NC (normally closed)
operation (refer also to the Appendix, Section B Terminal Assignments).
For 7UT633 versions this applies for the binary outputs BO9 and BO17 (Figure 3-5, slot 33 left side and slot 19
left side).
For 7UT635, this applies for the binary outputs BO1, BO 9 and BO17 (Figure 3-5, slot 5 right side, slot 33 left
side and slot 19 left side).
Table 3-12
Jumper settings of the Contact Type of relays for BO1, BO9 and BO17 on the input/output
boards C-I/O-1
Device Module for Jumper
Quiescent State
open (close)
Quiescent State
closed (open)
Presetting
7UT633 Slot 33 left BO9 X40 1-2 2-3 1-2
Slot 19 left BO1
7
X40 1-2 2-3 1-2
Mounting and Commissioning
3.1 Mounting and Connections
328 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
