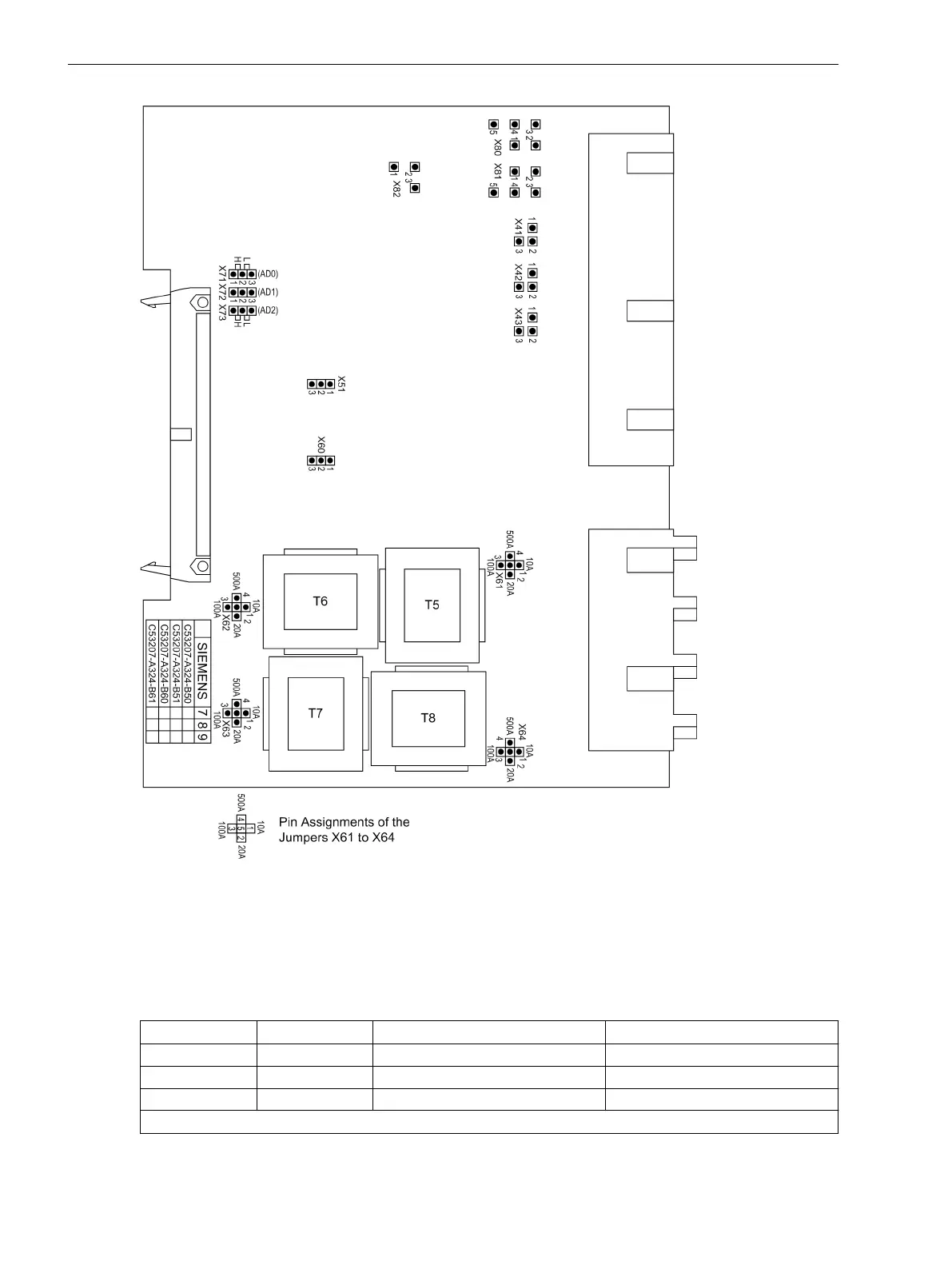

Figure 3-11
C-I/O-2 input/output board release 7UT6x .../EE or higher, with representation of jumper
settings required for checking configuration settings
The relay contacts of the binary outputs BO6 to BO8 can be changed from NO (normally open) to NC (normally
closed) operation (refer also to Appendix B Terminal Assignments).
Table 3-15
Jumper setting for the Contact Type of the relay for BO6 to BO8
for Jumper
Quiescent state open (close)
1)
Quiescent state closed (open)
BO6 X41 1-2 2-3
BO7 X42 1-2 2-3
BO8 X43 1-2 2-3
1)
Delivery state
Mounting and Commissioning
3.1 Mounting and Connections
330 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
