[ausloese-rueckfall-schieflast-iec-extrem-inv-030716-wlk, 1, en_GB]

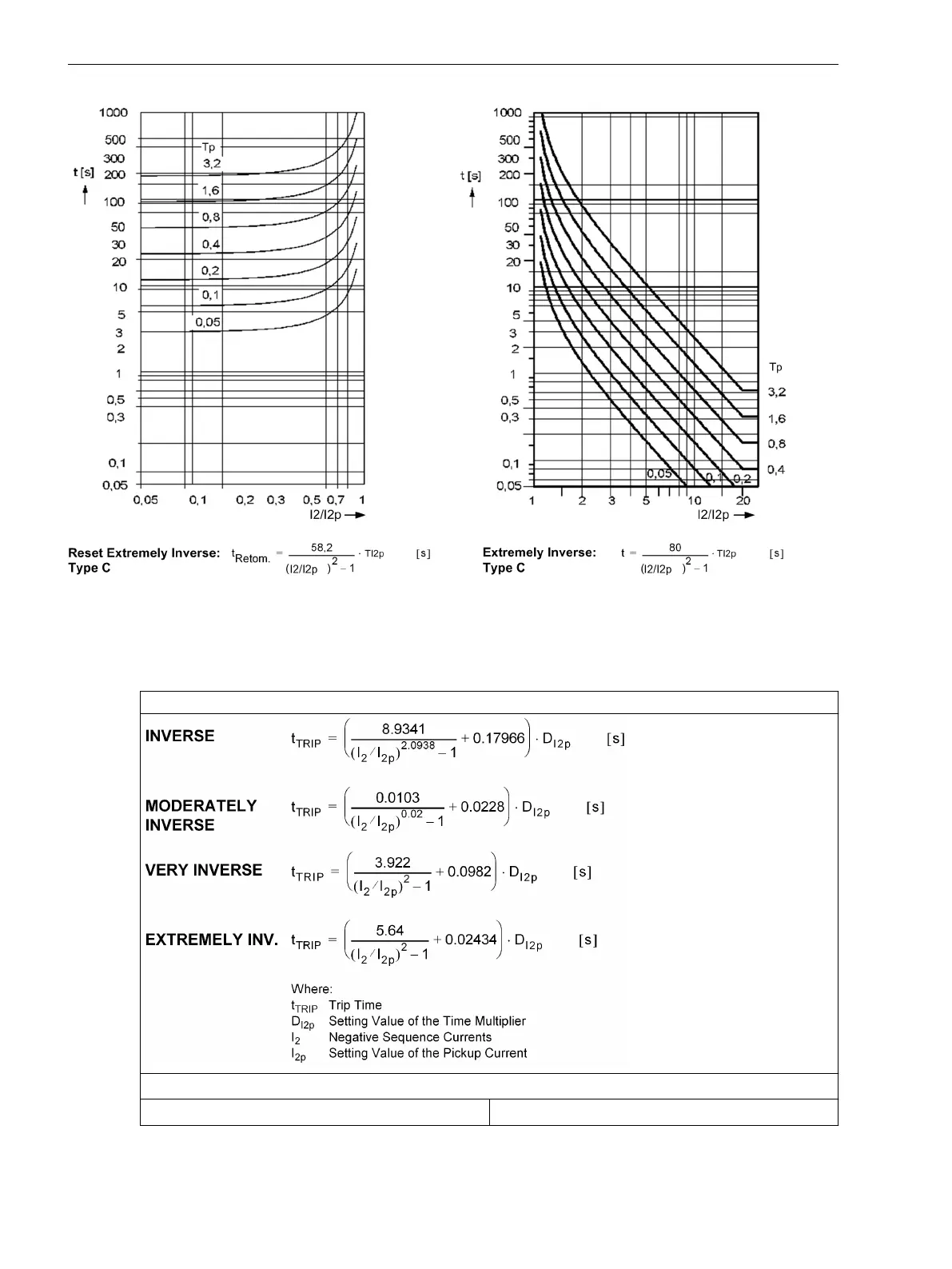

Figure 4-15
Dropout time and trip time characteristics of the inverse time unbalanced load stage, as per
IEC
Trip Time Curves acc. to ANSI
One of the tripping curves depicted in
Figure 4-16 and Figure 4-17 on the right-hand side may be selected.
The tripping times for Ι
2
/Ι
2p
≥ 20 are identical to those for Ι
2
/Ι
2p
= 20.
Pickup Threshold
approx. 1.10· Ι
2p
Technical Data
4.8 Unbalanced Load Protection
436 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
