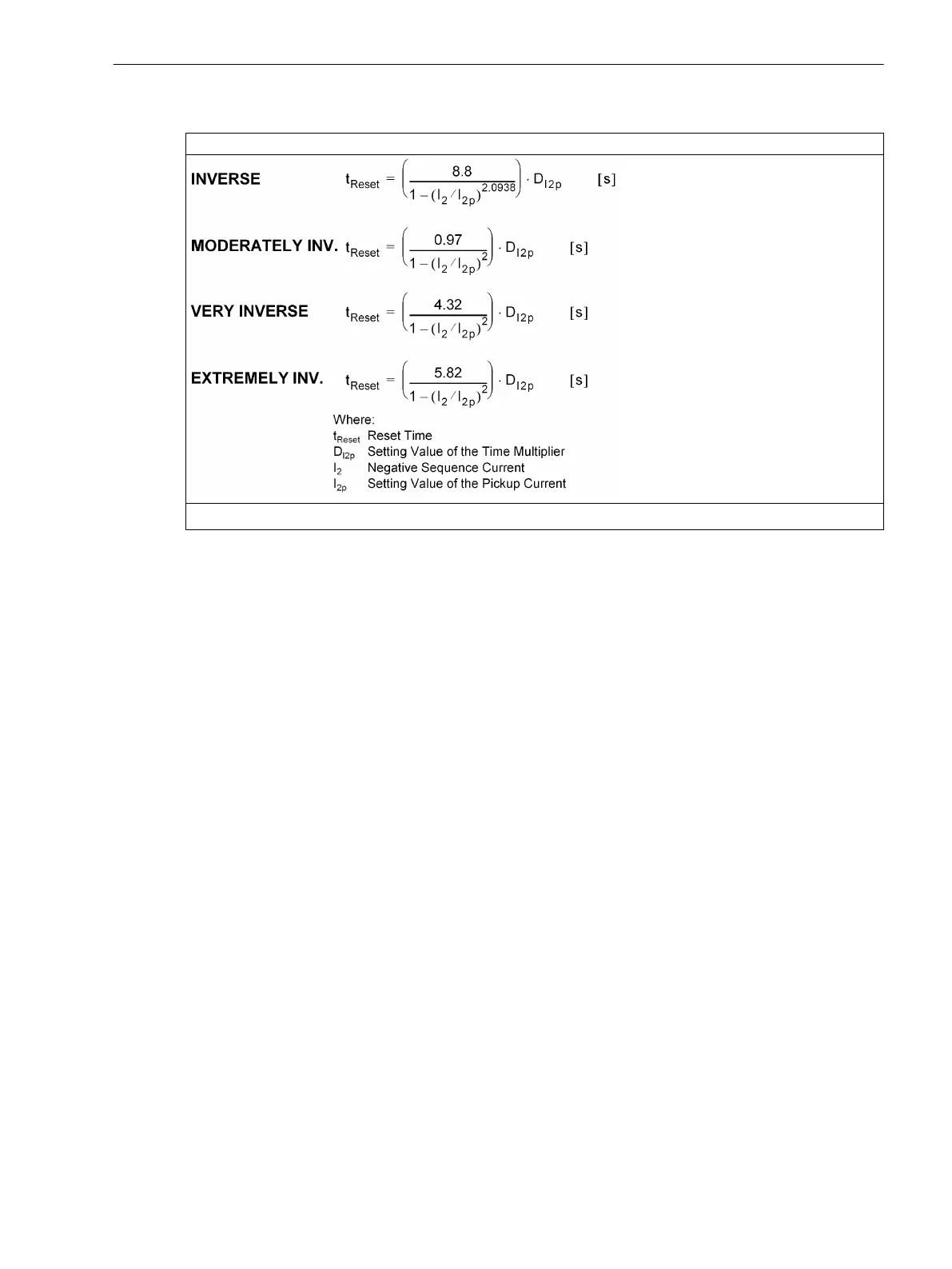

Reset Curves with Disk Emulation according to ANSI
For illustrations of possible reset time characteristics see Figure 4-16 and Figure 4-17on the left-hand side.
The dropout times constants apply to (Ι
2
/Ι
2p
) ≤ 0.90
Technical Data
4.8 Unbalanced Load Protection
SIPROTEC 4, 7UT6x, Manual 437
C53000-G1176-C230-5, Edition 09.2016
