Functions
6-4 7SA6 Manual
C53000-G1176-C133-1
Exiting the
Setting Mode
If an attempt is made to exit setting modification mode using the key or the key,
the message $UH\RXVXUH" will be displayed followed by the responses <HV1R
and (VFDSH (see Figure 6-4). If the response <HV is selected, modification of settings
can be confirmed by pressing the key. To cancel pending modifications to settings
and exit setting modification mode, the response 1R must be selected. Press the
key until the response 1Ris highlighted. Press the key to confirm and exit.
Incorrect entries may be retracted in this manner. To remain in the setting modification
mode, press the key until the response (VFDSHis highlighted. Press the key
to confirm, and the user can remain in setting modification mode without down-loading
modifications.

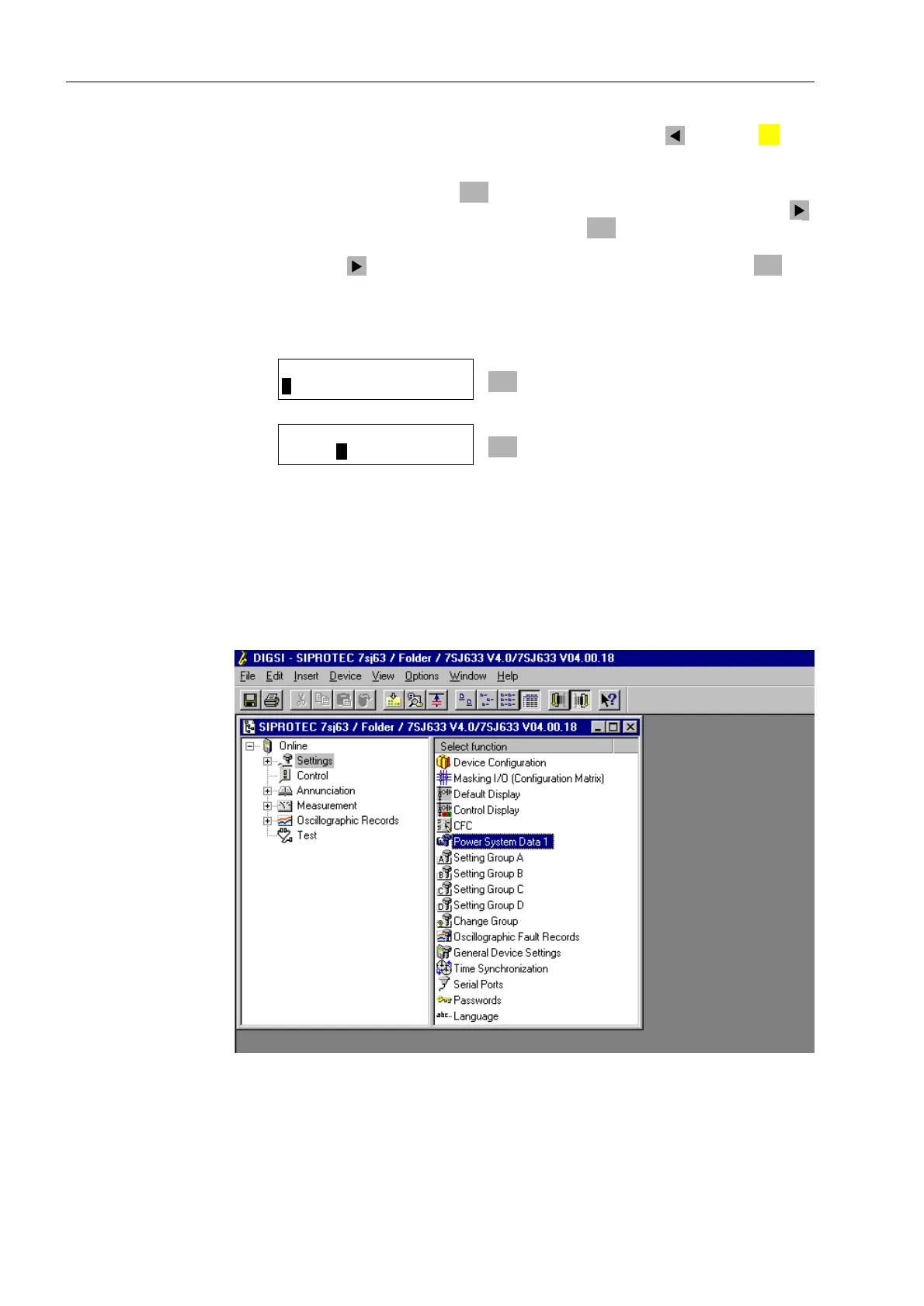

Figure 6-4 Ending the setting mode using the front control panel
From PC
with
DIGSI
®
4
To select a function, double-click on 6HWWLQJV, and then double-click on the desired
setting function (e.g., 3RZHU6\VWHP'DWD is selected by double-clicking
6HWWLQJV, and then double-clicking 3RZHU6\VWHP'DWD as illustrated in Figure
6-5).
Figure 6-5 Navigating using DIGSI
®
4 — example
A dialogue box associated with the selected function is displayed (e.g., if 3RZHU
6\VWHP'DWD function is selected, the dialogue box shown in Figure 6-6 will
appear). If a function contains many settings, the dialogue box may include multiple
MENU
ENTER
ENTER
ENTER
ENTER
$UH\RXVXUH"
!<HV1R(VFDSH
ENTERENTER
6HWWLQJVDUHRN
!&RQWLQXH
:
