Functions
6-297SA6 Manual
C53000-G1176-C133-1
Negative Sequence
Current 3I
2
On long, heavily loaded lines, the earth current measurement could be overstabilized
by large currents (ref. Figure 6-15). To ensure secure detection of earth faults in this
case, a negative sequence comparison stage is additionally provided. In the event of
a single-phase fault, the negative sequence current I
2
has approximately the same
magnitude as the zero sequence current I
0
. When the ratio zero sequence current/
negative sequence current exceeds a preset ratio, this stage picks up. It is also
stabilized in the event of large negative sequence currents by a parabolic
characteristic. Figure 6-16 illustrates this relationship. A release by means of the
negative sequence current comparison requires a current of at least 0,2·I
N
for 3I
0
and
3I
2
.

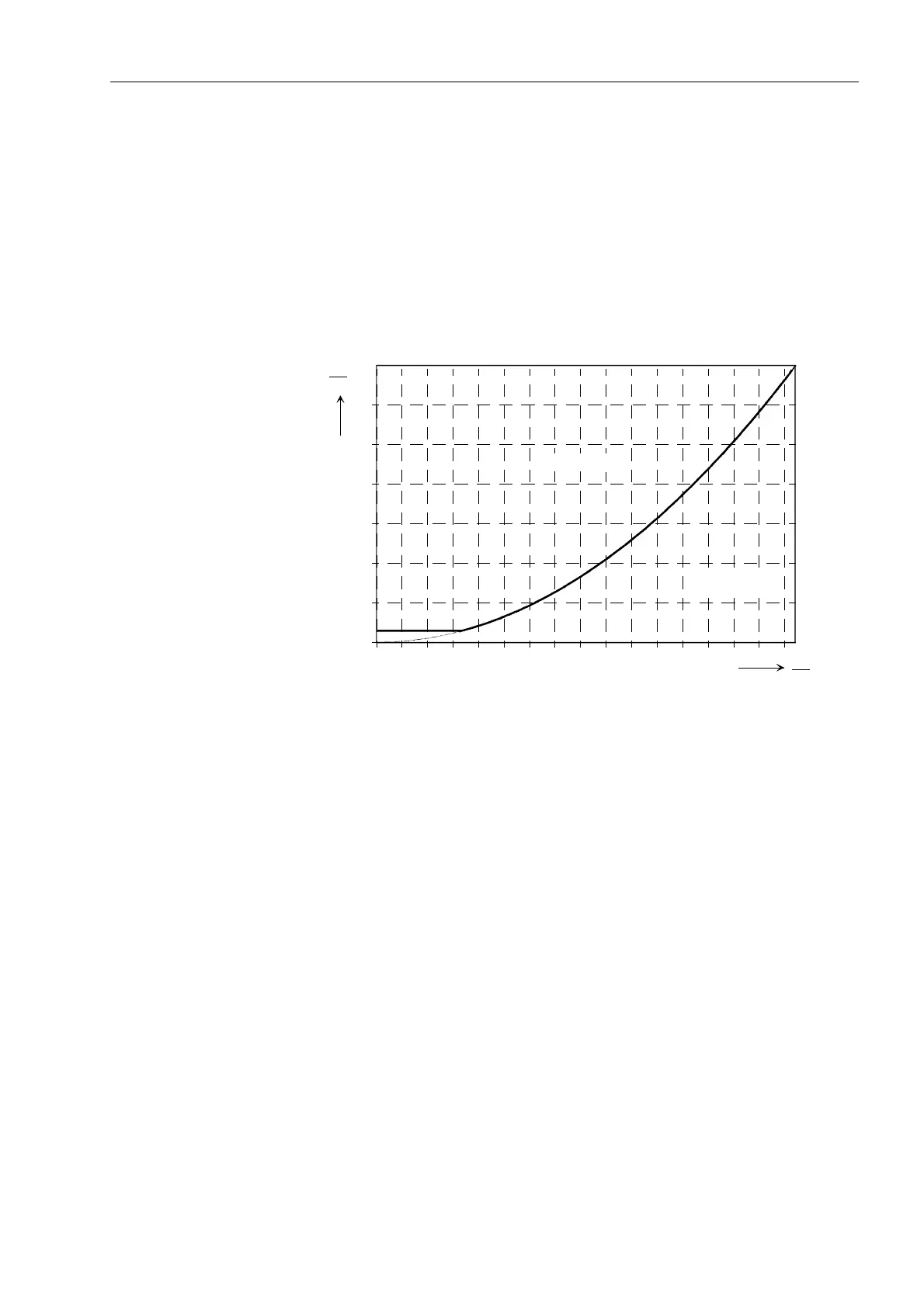

Figure 6-16 Characteristic of the I
0
/I
2
–stage
Neutral
Displacement
Voltage 3U
0
For the neutral displacement voltage recognition the displacement voltage (8!) is
numerically filtered and the fundamental frequency is monitored to recognize whether
it exceeds the set threshold ((3·U
0
). The reset threshold is approximately 95 % of the
pick-up threshold. The U
0
–criterion may be disabled by applying the ∞ setting.
Earth Fault
Detection for
Earthed Systems
The current and voltage criteria supplement each other, as the displacement voltage
increases when the zero sequence to positive sequence impedance ratio is large,
whereas the earth current increases when the zero sequence to positive sequence
impedance ratio is smaller.
For earthed systems the current and voltage criteria are logically combined with an
OR-
function (Figure 6-17). The earth fault recognition
on its own
does not cause a
general fault detection of the distance protection, but merely controls the further fault
detection modules. It is only alarmed in case of a general fault detection.
0.0
0
3I0>
0,5
1,0
1,5
2,0
2,5
3,0
12345678910111213141516
release
block
3I
2
I
N
3I
0
I
N
