SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 8 Control, Inspection and Cleaning
8.4 Replacement of consumables HRL Series
8-12

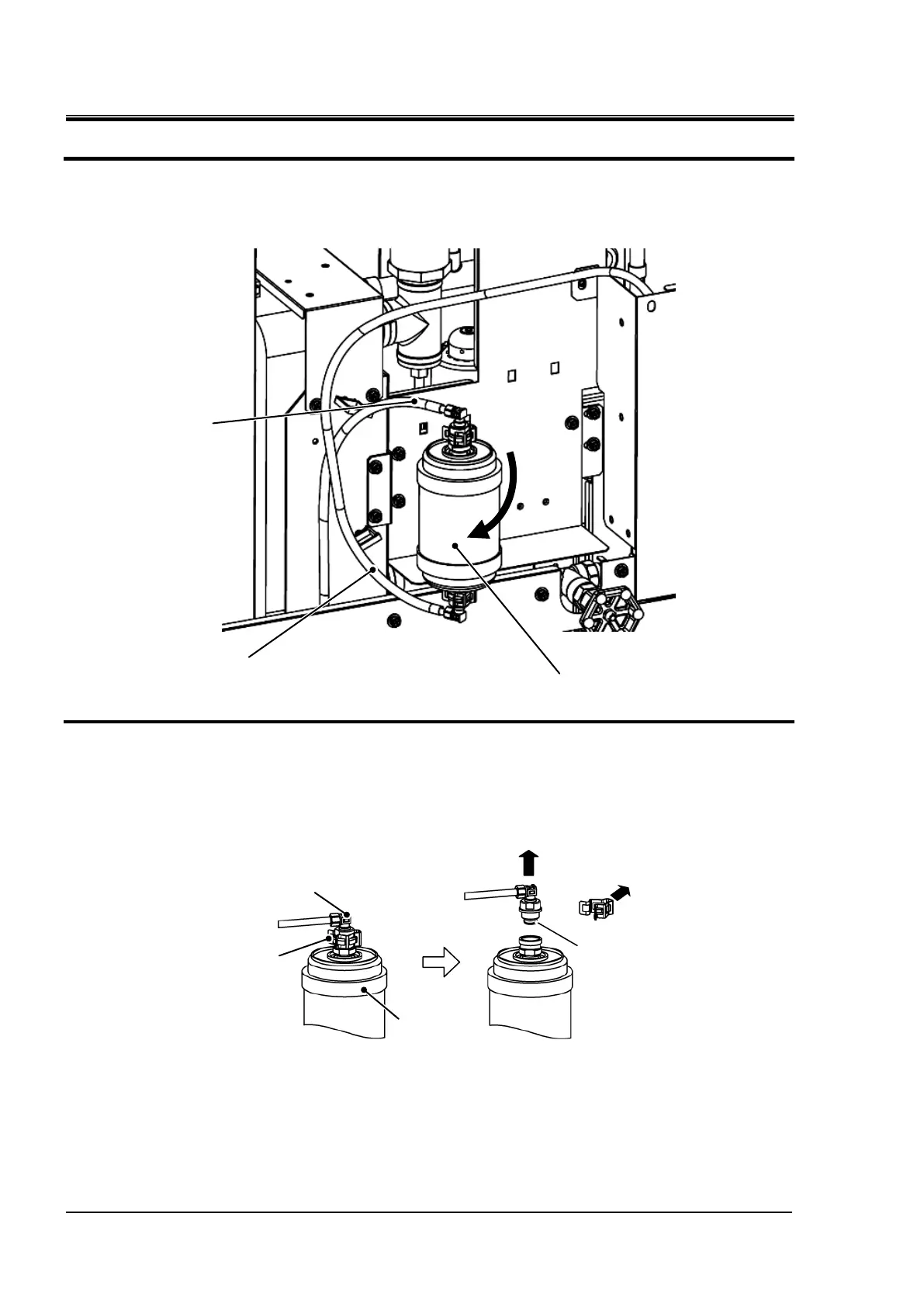

4. Pull out the DI filter to the front. The DI filter has been connected to the tube.
Please allow excessive force is not applied to the tube.
5. The connection fitting of the DI filter and the tube is connected by a fastener. O ring is used
for the connection fitting. After removing the fastener, remove the connection fitting. Be
careful not to apply force to the tube at this time. Also, please be careful not to damage the
Oring.
Both the IN side and the OUT side have the same shape. Remove the connection
fitting onboth sides and remove the DI filter.
①
O-ring
Connection
Fasner
DI Filter
DI filter
DI filter IN
side tube
DI filter OUT side
tube
②
